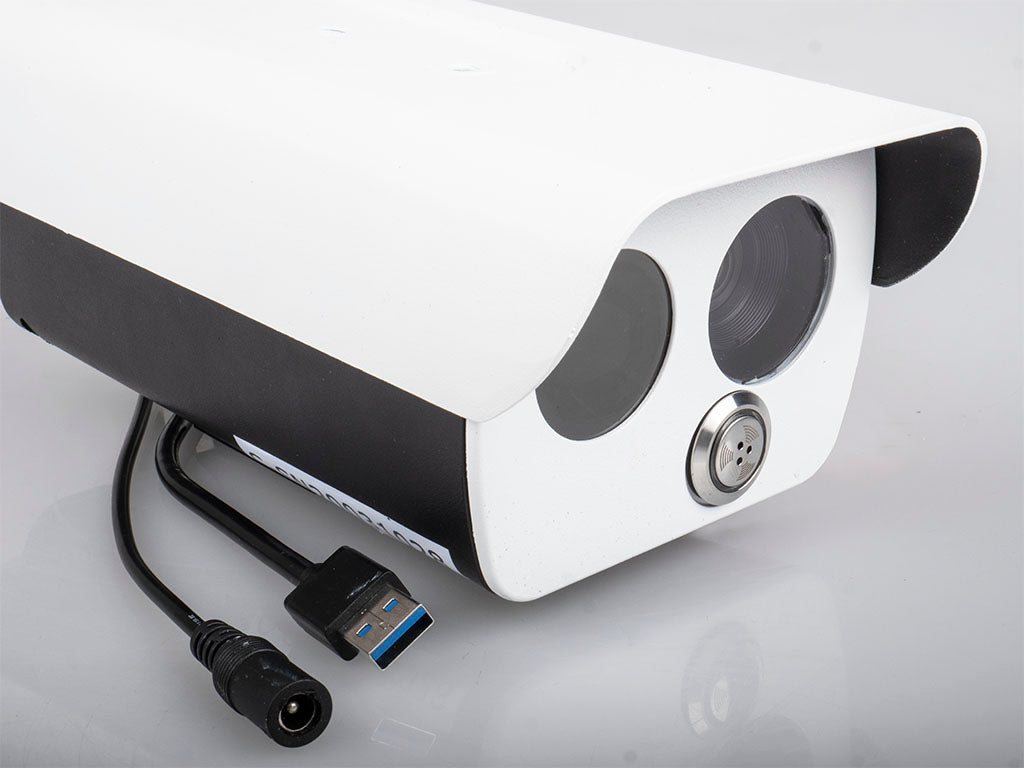

Thermal Imaging Camera J380-HS

J380-HS unit is a fast thermal imaging camera system designed to detect elevated body temperature. This unit has a high accuracy of ±0,2° C and can measure multiple moving targets simultaneously.

It comes as a package together with the blackbody calibration device and a laptop with pre-installed control software.

Its main benefits include high-speed measurement, acoustic alarm, intelligent video analysis and non-contact body temperature measurement technology. Furthermore, this equipment has the advantage of large flow screening, real-time blackbody calibration, AI, 24 hours non-stop testing and quick installation.
It is suitable for environments with a large flow of people, e.g. hospitals, airports, railway stations, subway stations, office buildings and similar areas.

To prevent Coronavirus propagation masks need to be worn, and body temperature has to be measured. The traditional way of temperature measuring has some drawbacks, such as that physical contact cannot be avoided, which increases the risk of spreading the infection. Moreover, the conventional method requires a large amount of human and material resources.

This device can solve these problems efficiently due to its performance, image quality, small footprint and easy to use control software.


  • Accuracy of ±0.2℃
  • Automatic temperature detection
  • Dual video sensor (regular video recording and infrared recording)
  • Acoustic alarm
  • Automatic and manual recording functions
  • Multiple people simultaneous detection
  • Thermal imaging recording in multiple colour scales
  • H264 online video transmission
  • Practical and easy positioning
  • Blackbody real-time calibration (J380-HS only)
  • Load image into Gallery viewer, Thermal Imaging Camera J380-HS
  • Load image into Gallery viewer, Thermal Imaging Camera J380-HS
  • Load image into Gallery viewer, Thermal Imaging Camera J380-HS
  • Load image into Gallery viewer, Thermal Imaging Camera J380-HS
  • Load image into Gallery viewer, Thermal Imaging Camera J380-HS


Infrared Channel Type: UFPA
Pixel: 384 x 288
Wavelength range: 7.5~14μm
Field of view: 28°× 21°
Sensitivity: <50mK
Visible spectrum channel
Type: 1/2.7’’ CMOS
Pixel: 1920x1080
Field of view: 52°× 31°
Alarm: Built-in warning lights and speakers
Elevated temperature: >99%
False accept rate: <5%
Multi-target support
Automatic alarm support
Face recognition support
Max. measurement capacity: 369 people per minute
Measure distance: 2 - 7m
Temperature range: +30℃~+45℃
Accuracy: ±0.2℃
Temperature: Automatic
Elevated temperature: The real-time display of value and location
Emissivity correction: The emissivity is adjustable from 0,01 to 1,0
Background: Automatic
Atmospheric: Automatic
Filter / Window: Automatic
Function settings: Date/time, units ℃/℉/K, language
Data storage Temperature data: Custom MGT format, analysis with IRX software
Image format: JPG
Video format: AVI format, MJPG compression
Storage control: Manual / Automatic
Report generation: Word format with a content orientated selection
Video output: UVC (visible spectrum)
Video output: UVC/RTSP (infrared spectrum)
Temperature output: TCP
Control: TCP
API: Support SDK (Win & Linux), ONVIF agreement
Power requirements
Operating Voltage: DC/12V
Power consumption: <6W
Environmental parameters
Operating temperature: -30℃~+60℃
Storage temperature: -40℃~+70℃
Humidity: ≤95%(RH)
Vibration: 2G(IEC60068-2-6)
Shock: 25G(IEC60068-2-29)
IP rating: 65
EMC: Match with CE/FCC
Physical properties
Dimensions: 236 × 130 × 80mm
Weight: ≤850g
Installation: Standard tripod connector M3
Max. equipment distance from PC: 15m
Configuration Standard: Thermal imaging camera, blackbody, integrated cable, warranty card, certificate, portable case, laptop, software
