DMX Shutter

Price on request

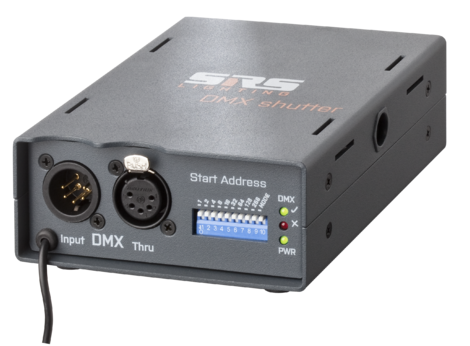

The DMX Projector SHUTTER/dowser is a small device that is used to make a true blackout in the projection area. It can be used with all types of projectors.

This device is controlled via the DMX signal, the USB port of a computer or using a manual switch with a 3- or 5-pin DMX cable. The DMX is optically isolated and protected by transils.

The device is supplied with mounting straps, M10 thread for the C-clamp and mounting points for line securing.

This product requires flaps. They are made from high-quality aluminium, and there are three sizes available.


  • DMX, USB or switch-button-controlled
  • Built-in power supply
  • DMX true output
  • Integrated 1.5m straps in the body of the shutter
  • M10 thread for C-clamp connection
  • LED indication of the DMX line
  • Mirror function for concurrent operation with two projectors
  • 3-pin or 5-pin DMX XLR connector
  • Full range power supply: 100-255V, 50/60Hz with multiple leads on request
  • Dimensions: 110 x 44 x 145mm (WxHxD)
  • Weight: 0.8kg

You can specify the exact configuration in the next "Request A Quote" step.

Request A Quote
