Optical Bench Single

This Optical Bench is compatible with all KVANT Spectrum and Atom laser systems manufactured from 6/2018 to 5/2022.
It is incompatible with all LD versions!
The compatible systems have internal connections for the fixture already built inside them - internal power supply and DMX.
Please note that due to the current shortage of components, the delivery time could be up to 6 months from the order date.

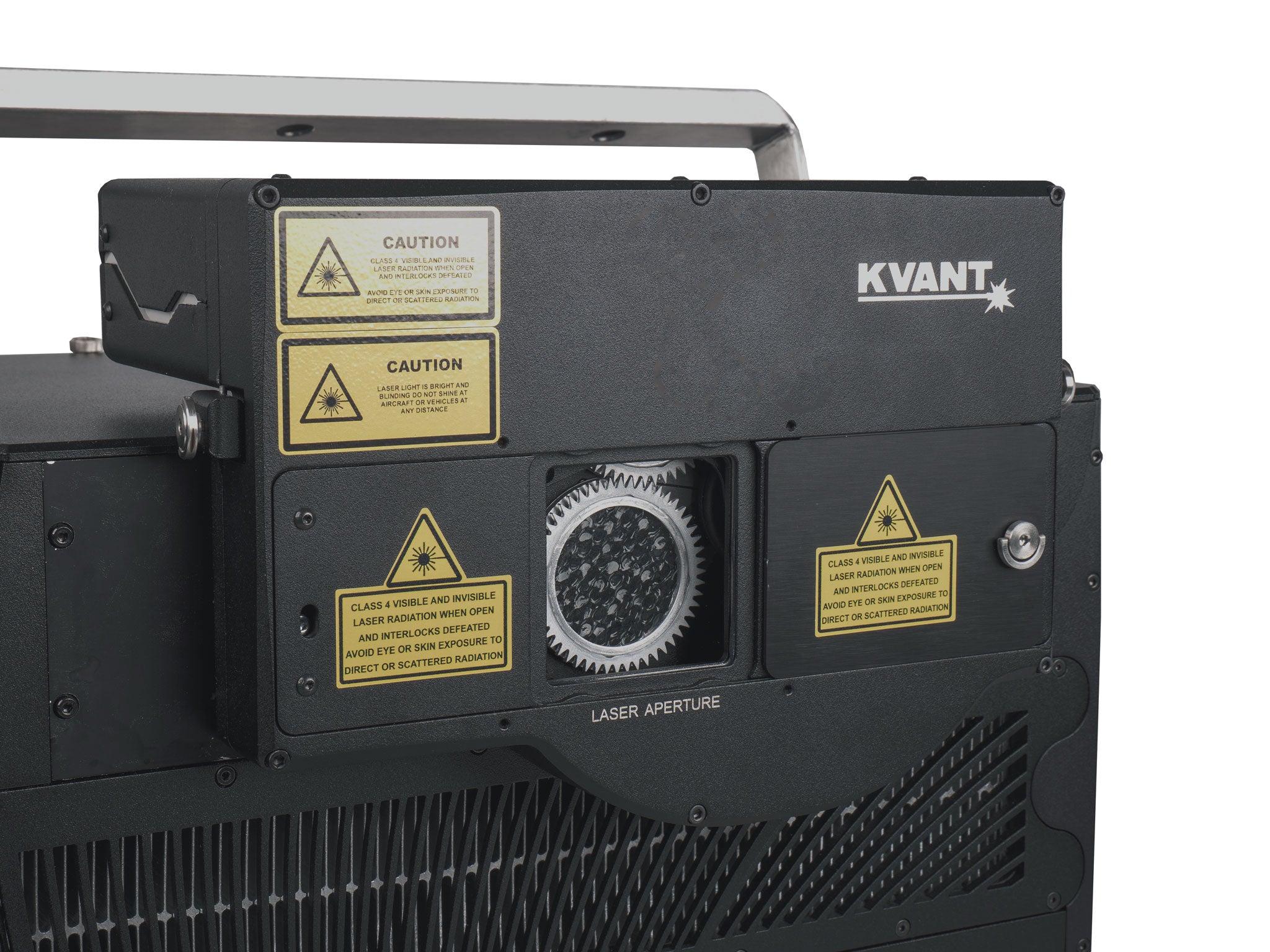

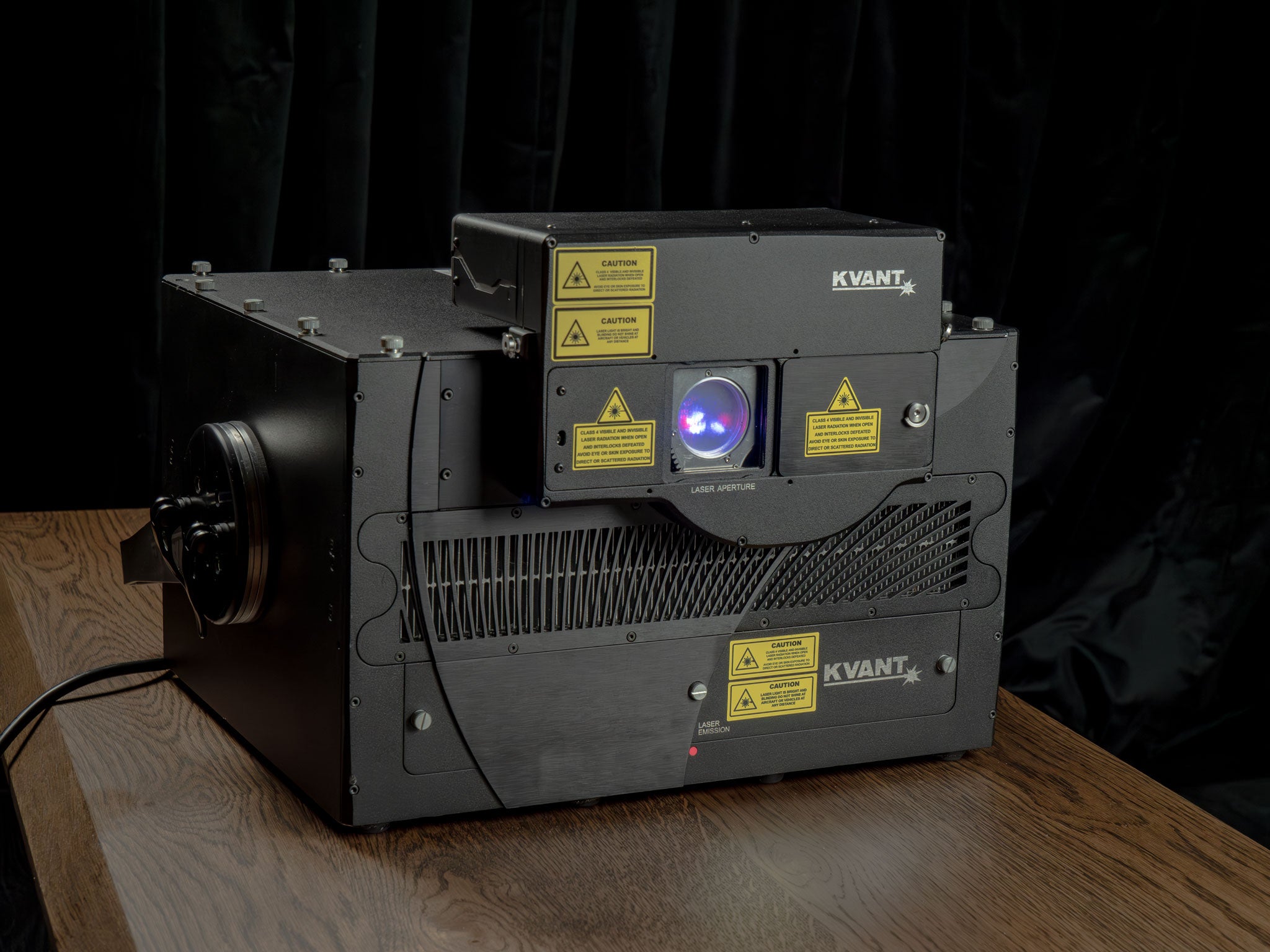

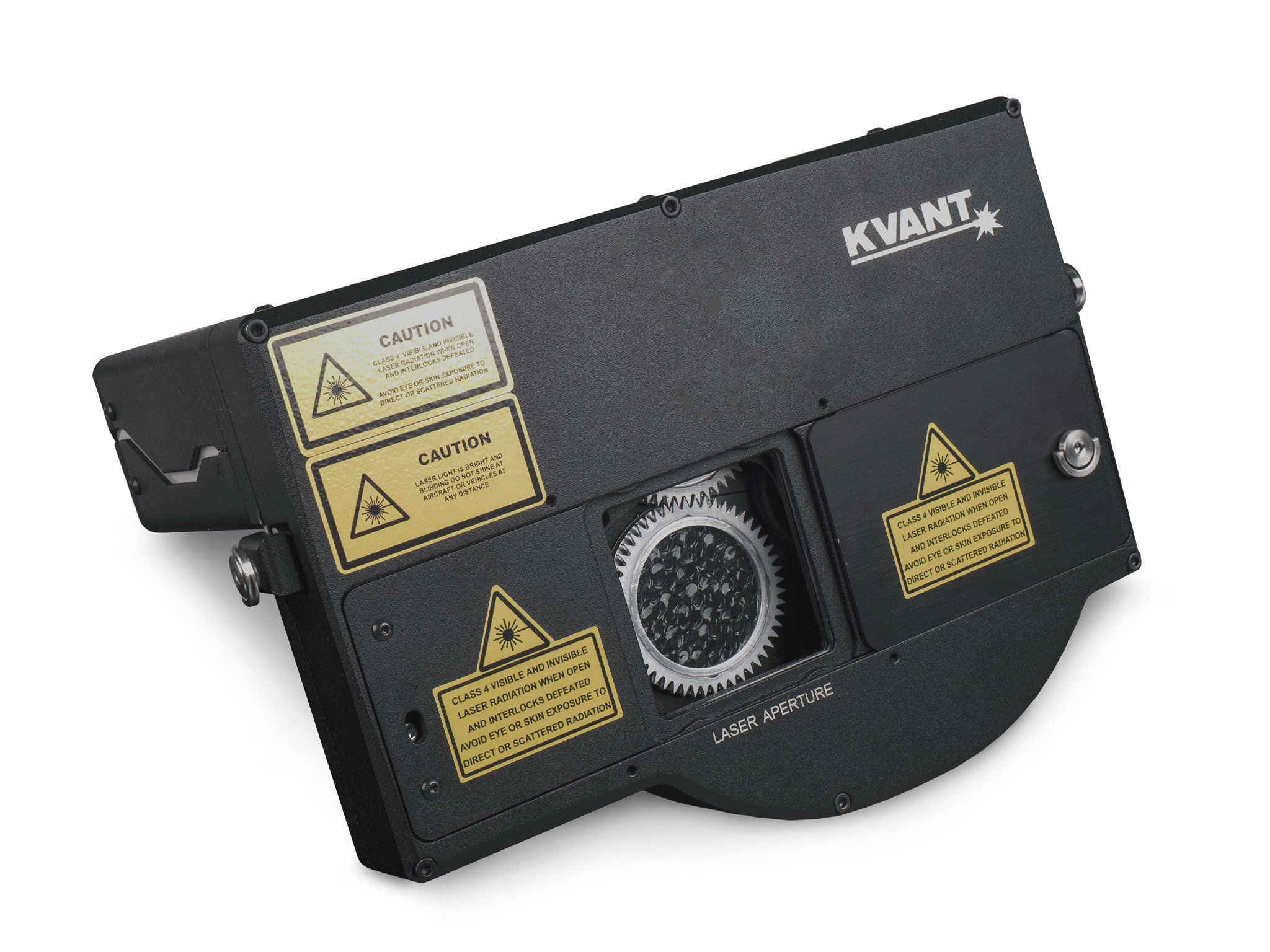

KVANT's Optical Bench Single adds to your laser projector a gobo with three amazing grating effects and two empty slots for gratings of your choice. There is also a zero-position space that is used for standard scanning performance. The gobo wheel is controlled separately via DMX.

  • Load image into Gallery viewer, Dual Optical Bench with two gobos for Kvant Spectrum and Atom laser projectors_1
  • Load image into Gallery viewer, Dual Optical Bench with two gobos for Kvant Spectrum and Atom laser projectors_2
  • Load image into Gallery viewer, Dual Optical Bench with two gobos for Kvant Spectrum and Atom laser projectors_3
  • Load image into Gallery viewer, Dual Optical Bench with two gobos for Kvant Spectrum and Atom laser projectors_4
  • Load image into Gallery viewer, Dual Optical Bench with two gobos for Kvant Spectrum and Atom laser projectors_5
  • Load image into Gallery viewer, Dual Optical Bench with two gobos for Kvant Spectrum and Atom laser projectors_6



Main features:

Three different gratings - Grid, Line, Oak
Gobo change takes only 0.4 seconds
Quick and easy installation

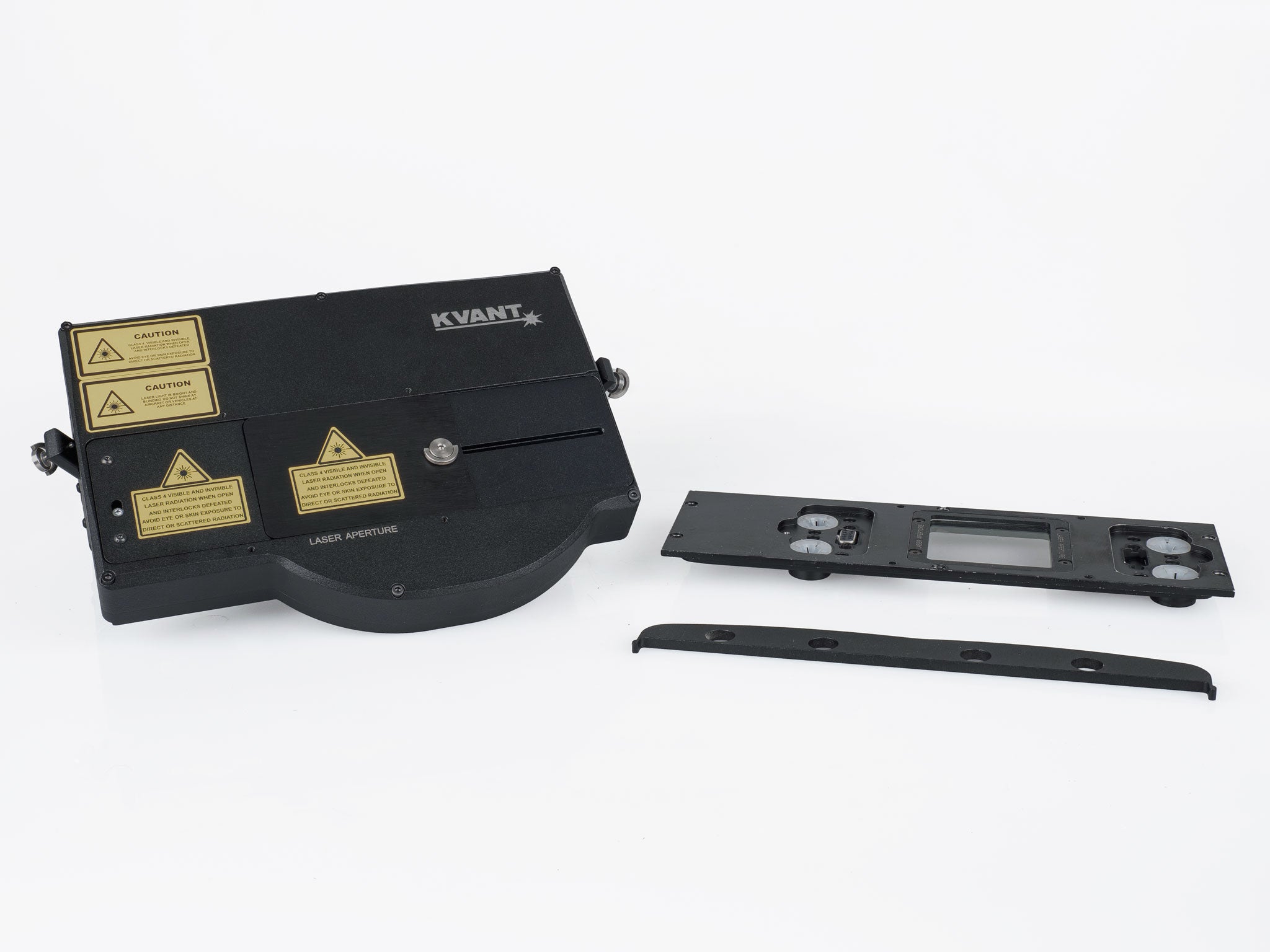

Quick and easy change of gratings and their order

The bench is controlled over DMX using two channels - the first changes the direction and speed of a chosen effect. The second one controls which effect is used. It takes only 0.4s to change the effect.
Whenever the optical bench is turned on, it resets itself to a zero position.

Downloads

Optical Bench Single - Product Specifications
