Descreet look
IP65 industrial deisgn
Full-colour RGB
ArtNet, ETH, Timer
- Regular price
- 19,388.00€
- Sale price
- 19,388.00€
- Regular price
-
- Unit price
- per
Sold out
The new 24-Watt RGB full-colour high-power LogoLas is a professional laser display system built into an industrial-grade housing, developed for outdoor laser advertising, high visibility signage, facade illumination and crowd flow management applications.
With its inbuilt control interface and IP rated robust build, it is a comprehensive solution for permanent installations at demanding environments.
This model is factory fitted with Motorised Dichroic Filters for quick and easy beam alignment.
What is in the Package
Laser projector
Wall mount bracket
Inbuilt Mains cable
Inbuilt Ethernet cable
E-STOP with inbuilt XLR cable
Interlock [US only]
Lid and Safety keys
USB drive with Manual
QC Certificate
Alternative Products
Green Outdoor Laser
10-Watt green OPSL outdoor laser display system suitable for Architecture and Signage.
- Regular price
- 19,271.00€
- Sale price
- 19,271.00€
- Regular price
-
- Unit price
- per
Sold out
24-Watt bestselling laser
High-power RGB laser projector with 24-Watt power output and FB4 interface.
- Regular price
- 17,896.00€
- Sale price
- 17,896.00€
- Regular price
-
- Unit price
- per
Sold out
40-Watt outdoor projector
40-Watt full-colour RGB outdoor laser display system suitable for Architecture and Signage.
- Regular price
- 22,373.00€
- Sale price
- 22,373.00€
- Regular price
-
- Unit price
- per
Sold out
100 Watts scanning projector
100-Watt EPIC scanning laser projector made in IP65 housing for outdoors.
- Regular price
- 42,129.00€
- Sale price
- 42,129.00€
- Regular price
-
- Unit price
- per
Sold out
Accessories
High-quality front-coated bounce mirror.
- Regular price
- 99.00€
- Sale price
- 99.00€
- Regular price
-
- Unit price
- per
Sold out
High-quality front-coated bounce mirror for precise beam targeting.
- Regular price
- 156.00€
- Sale price
- 156.00€
- Regular price
-
- Unit price
- per
Sold out
High-quality diffraction mirror with Grid effect.
- Regular price
- 127.00€
- Sale price
- 127.00€
- Regular price
-
- Unit price
- per
Sold out
Rental/forever licence, works on both FB3 and FB4.
- Regular price
- 427.00€
- Sale price
- 427.00€
- Regular price
-
- Unit price
- per
Sold out

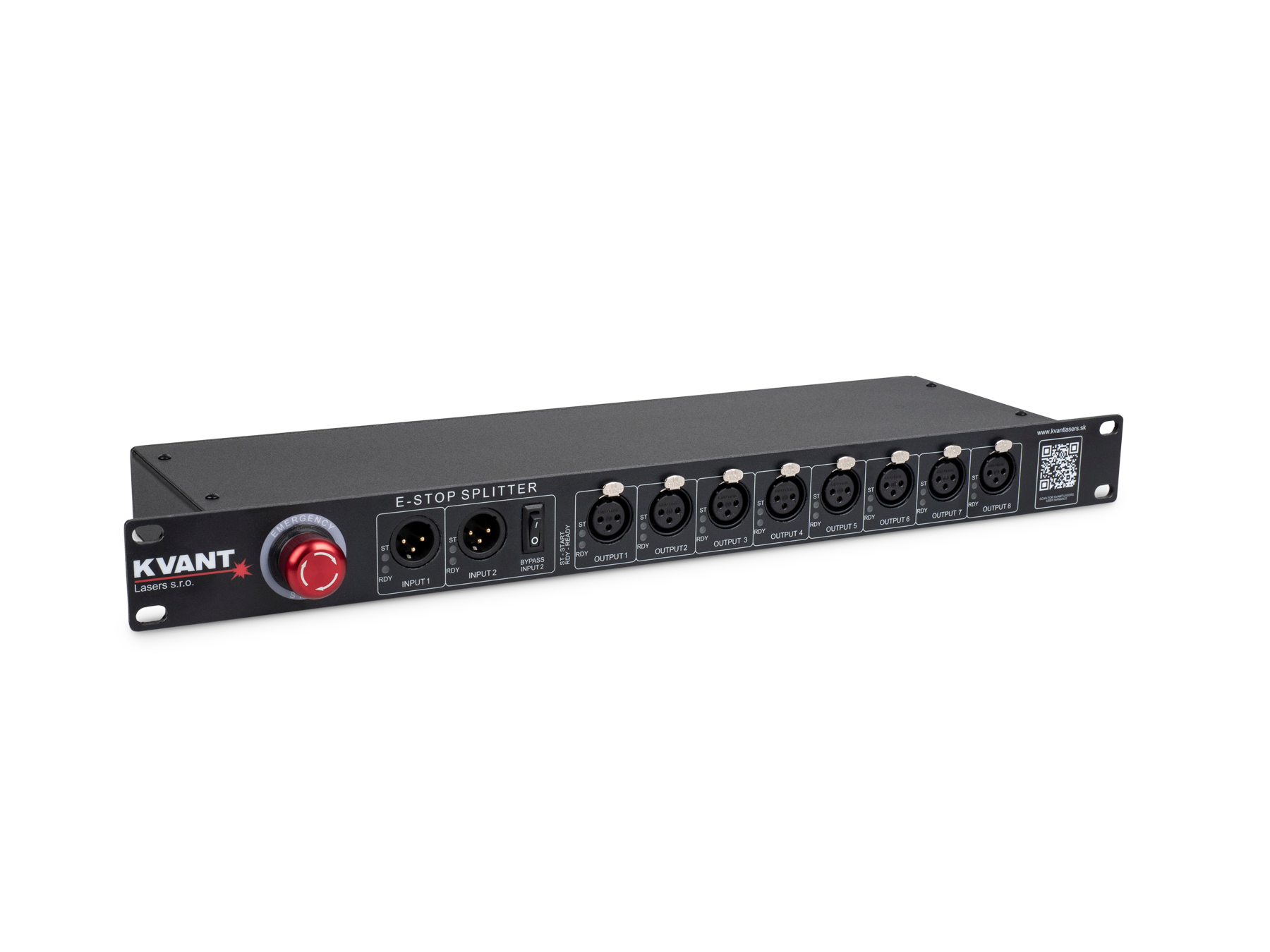

E-STOP signal distribution interface - 2x IN | 8x OUT.
- Regular price
- 1,226.00€
- Sale price
- 1,226.00€
- Regular price
-
- Unit price
- per
Sold out
The metal plates physically limit the size of laser output.
- Regular price
- 100.00€
- Sale price
- 100.00€
- Regular price
-
- Unit price
- per
Sold out
It's for fitting and adjusting SafetyScan lenses to all compatible KVANT lasers.
- Regular price
- 120.00€
- Sale price
- 120.00€
- Regular price
-
- Unit price
- per
Sold out
A special lens that increases the divergence of the laser beam, making it safer when scanning audience.
- Regular price
- 140.00€
- Sale price
- 140.00€
- Regular price
-
- Unit price
- per
Sold out
Specifications
| Source | Type: | Semiconductor laser diode | Full-colour RGB laser projector |
| Suitability: | Permanent outdoor installations |
| System control: | FB4-SK [Ethernet, ArtNet, Autoplay | PC or Lighting Console] |
| Compliant with: | EN 60825 |
| Ingress protection rating: | IP65 certified |
| Weight [kg]: | 21 |
| Size - laser projector [mm]: |
377 x 281 x 600 [WxHxD] [Technical Drawings are in the SUPPORT section of this page] |
| Size - incl. bracket [mm]: | 377 x 447 x 726 [WxHxD] [Technical Drawings are in the SUPPORT section of this page] |
| Guaranteed opt. output [W]: | 22 |
| R | G | B [W]: | 6 | 8 | 10 [*see note A below] |
| Wavelengths [nm, ±5nm]: | 638 | 525 | 455 |
| Beam size [mm]: | 5 x 7 |
| Beam divergence [mrad]: | <1.1 [full angle, averaged value, *see note B below] |
| Modulation [kHz] | type: | 100 | analogue |
| X-Y scanners: |

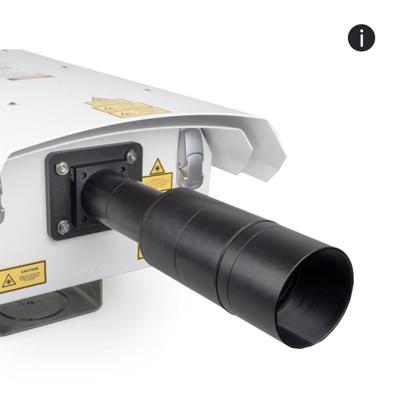

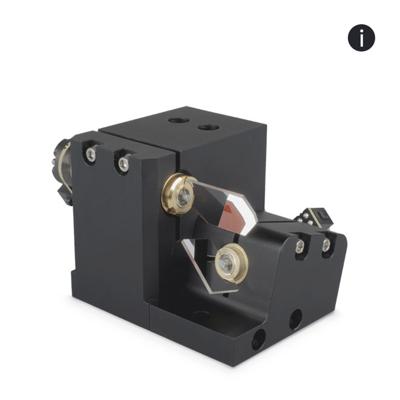

30 Kpps @ 8° [more options in UPGRADES] or without scanners, fitted with the Beam Expander |
| Power requirements [V] | Input: | 100-230/50-60Hz |
| Max. power consumption [VA]: | 1200 |
| Operation temperature [°C]: | 0-40 [currently being tested in the range -20 to +40 degrees] |
| Included in Standard set: |
LogoLas laser system, flat surface bracket and wall mount bracket with fixings, 5M power lead, 5M Ethernet rj45 signal cable, E-STOP remote with 5M 3-pin XLR cable, set of 2 keys for the lid and 2 E-STOP keys, interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is available for FREE download. Everything is safely packed and delivered in a plywood pallet export box. |
| HW features: |
Motorised Dichroic Filters. All the basic system settings and adjustments such as power output adjustment of colour(s), X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. The laser system is equipped with a scanning system overload protection. |
| Laser safety features: |
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button. |
| note A | *Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system. |
| note B | *The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams. |
LogoLas 24 - Product Specifications
