E-STOP Splitter 8
Every new Kvant laser display projector is delivered with a top-quality E-STOP system that fulfils all the safety features required by legislation. It allows you to control one or more projectors when connected in series.
However, in some situations, you may need to control the E-STOP signal from various positions within the setup and/or manage more lasers that are split into multiple groups.
The 8-channel E-STOP splitter offers multiple options for distributing the E-STOP signal across all the Kvant lasers in a given setup. The splitter distributes the signal in a parallel manner, making it possible to connect a virtually unlimited number of laser projectors and control them simultaneously or in groups.

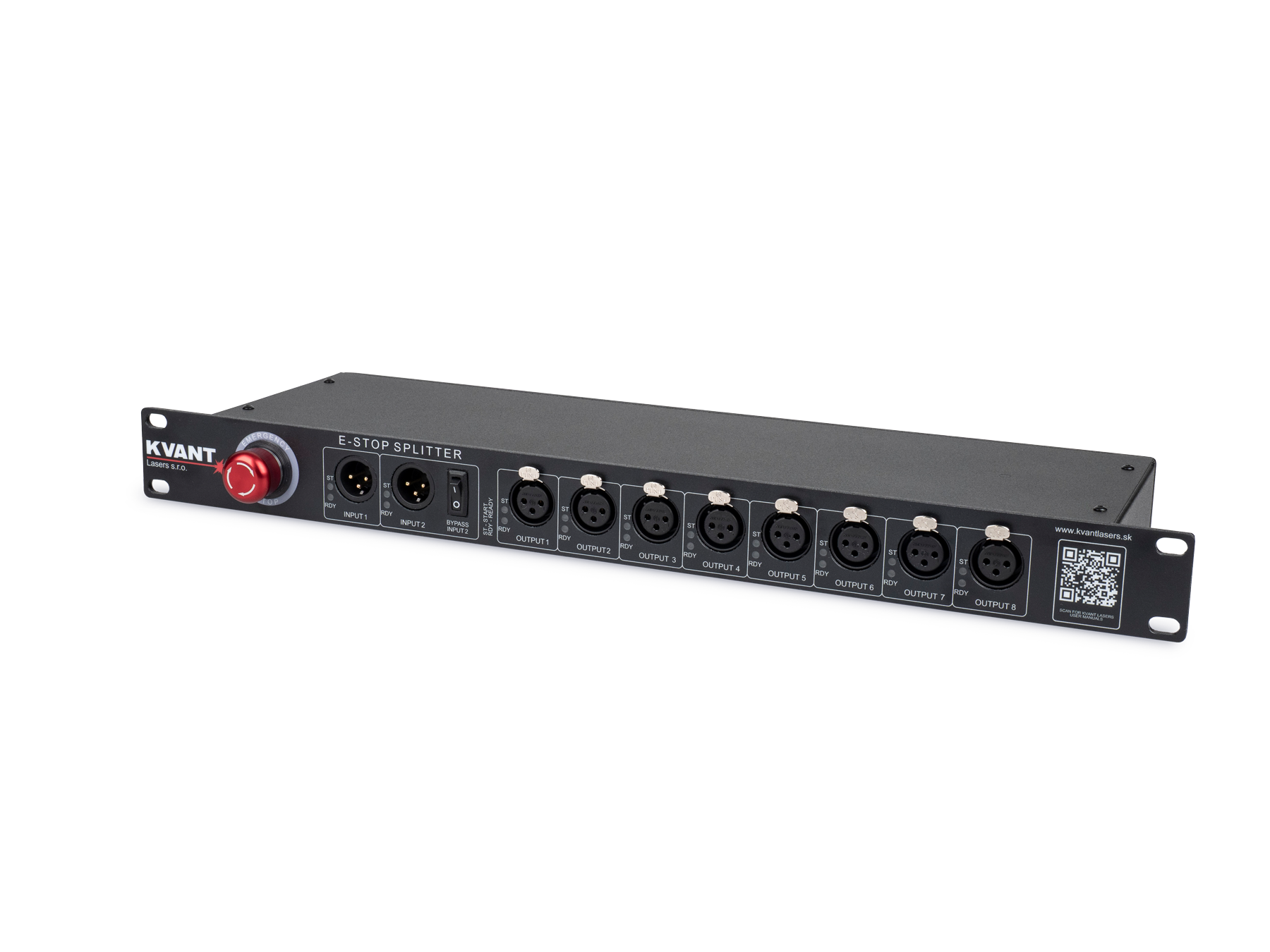

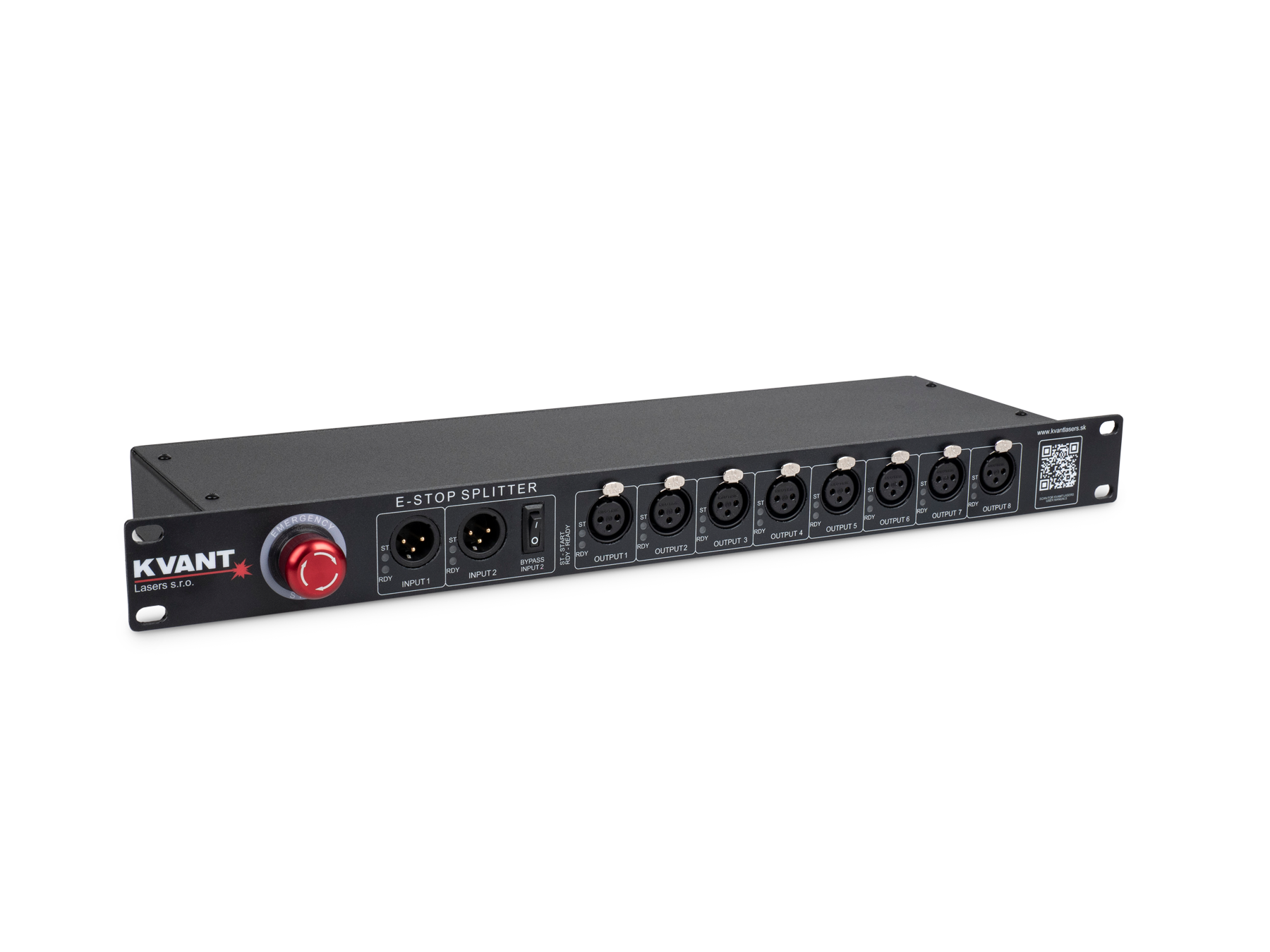

Each splitter has two E-STOP remote inputs, which allows for two E-STOP remote positions (i.e., FOH and stage) per setup or sub-group.
The E-STOP splitter provides a virtually unlimited number of routing options for the E-STOP signal.

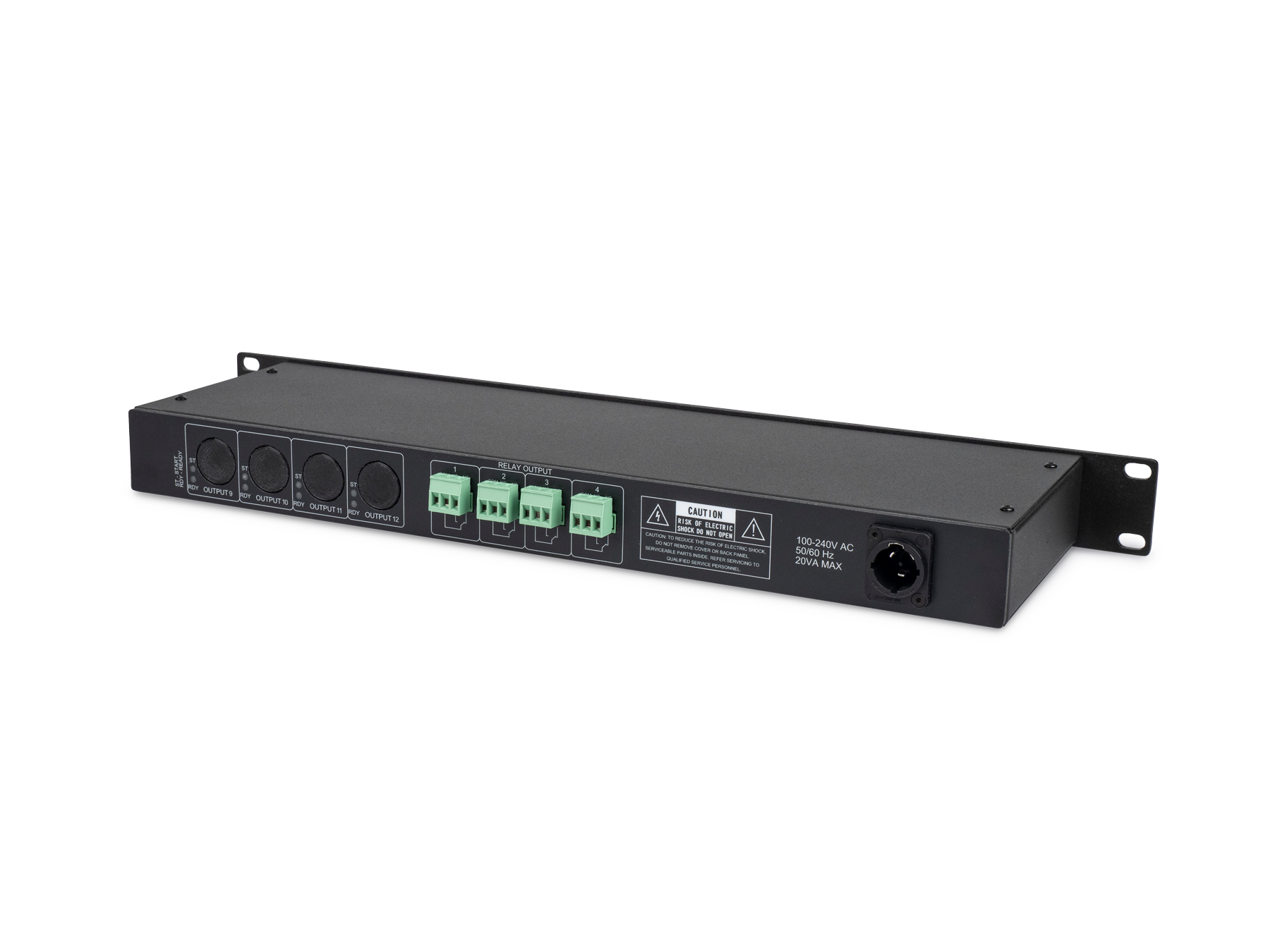

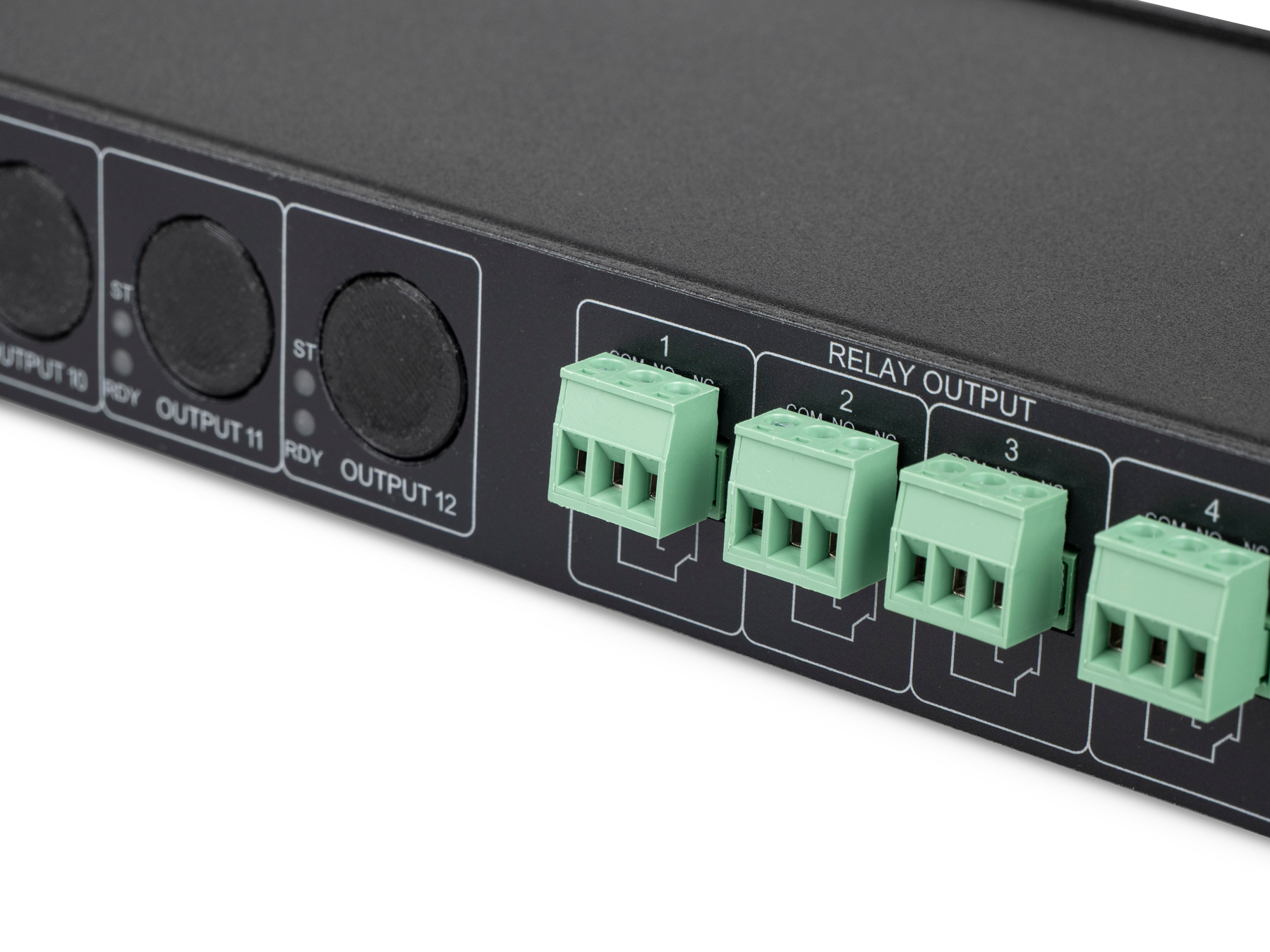

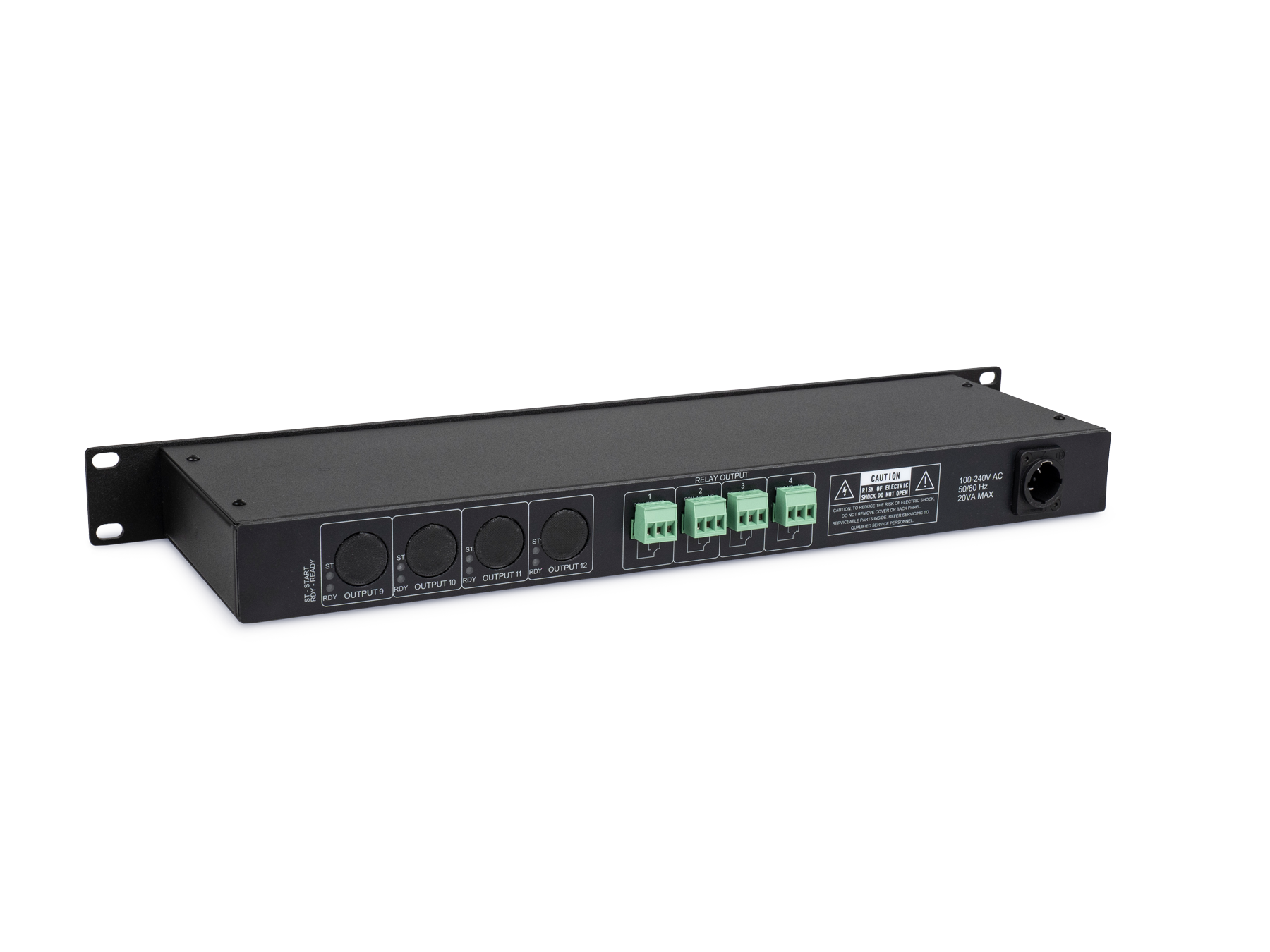

The rear panel relay board is supplied by default.
E-STOP Splitter 8
Sale price1,226.00€
Regular price (/)
E-STOP Splitter 8 specifications
Input
2x [3-pin XLR]
Output
8x [3-pin XLR], optically isolated, ESD protected and "power cross safe", each output can control an unlimited number of Kvant laser projectors.

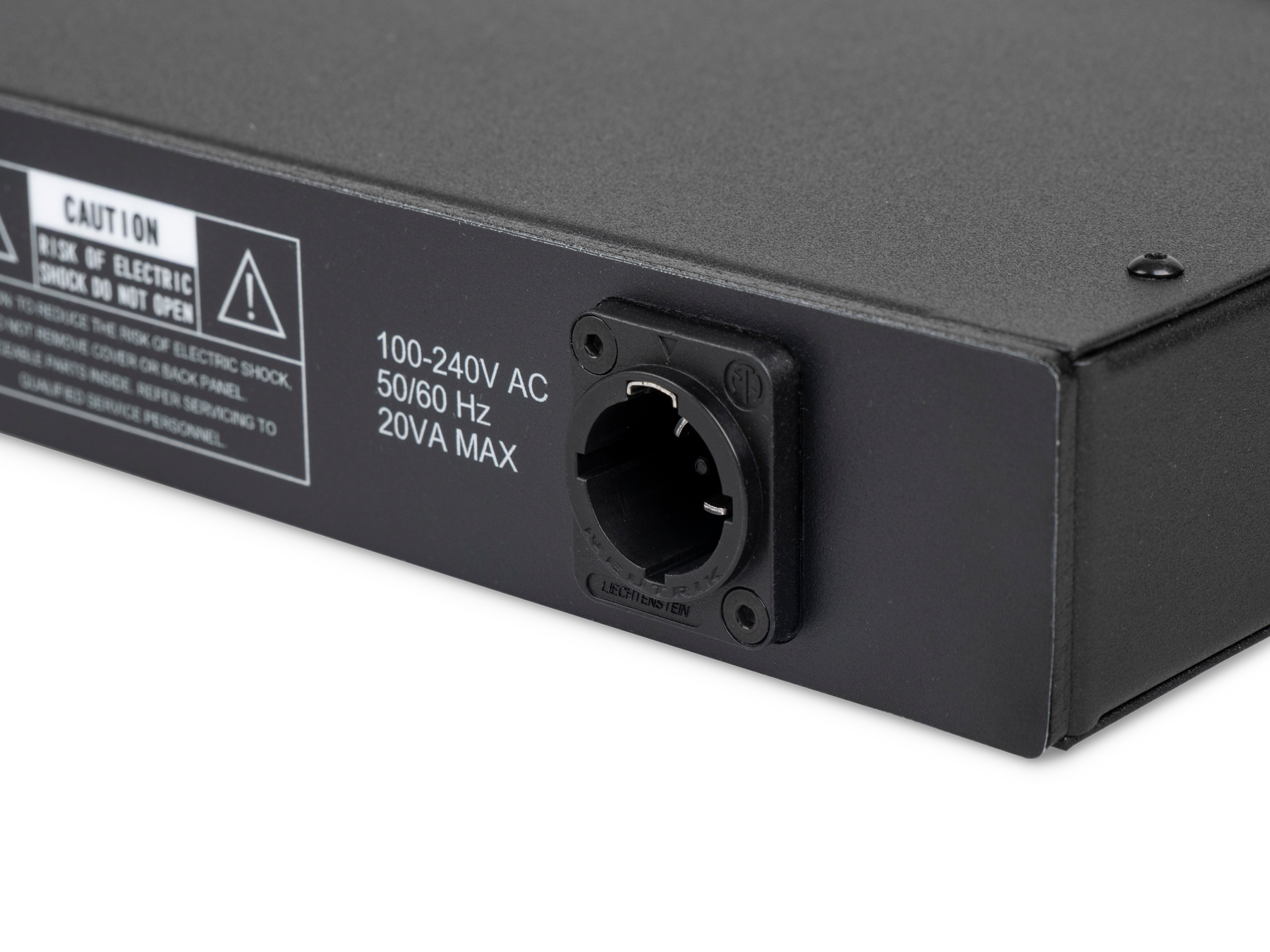

Power requirements, V
100-230, 50Hz
Consumption
max. 20VA
Max. control distance
Up to 1000 meters with a high-quality signal cable.
Ingress protection rating
IP 20
Operation temperature, °C
0-40
Housing colour
Black
Weight, kg
2
Dimensions, mm
483 x 45 x 140 [WxHxD]
Rack space
1U
