FlashBack 4 Multi

Price on request

Request a Quote

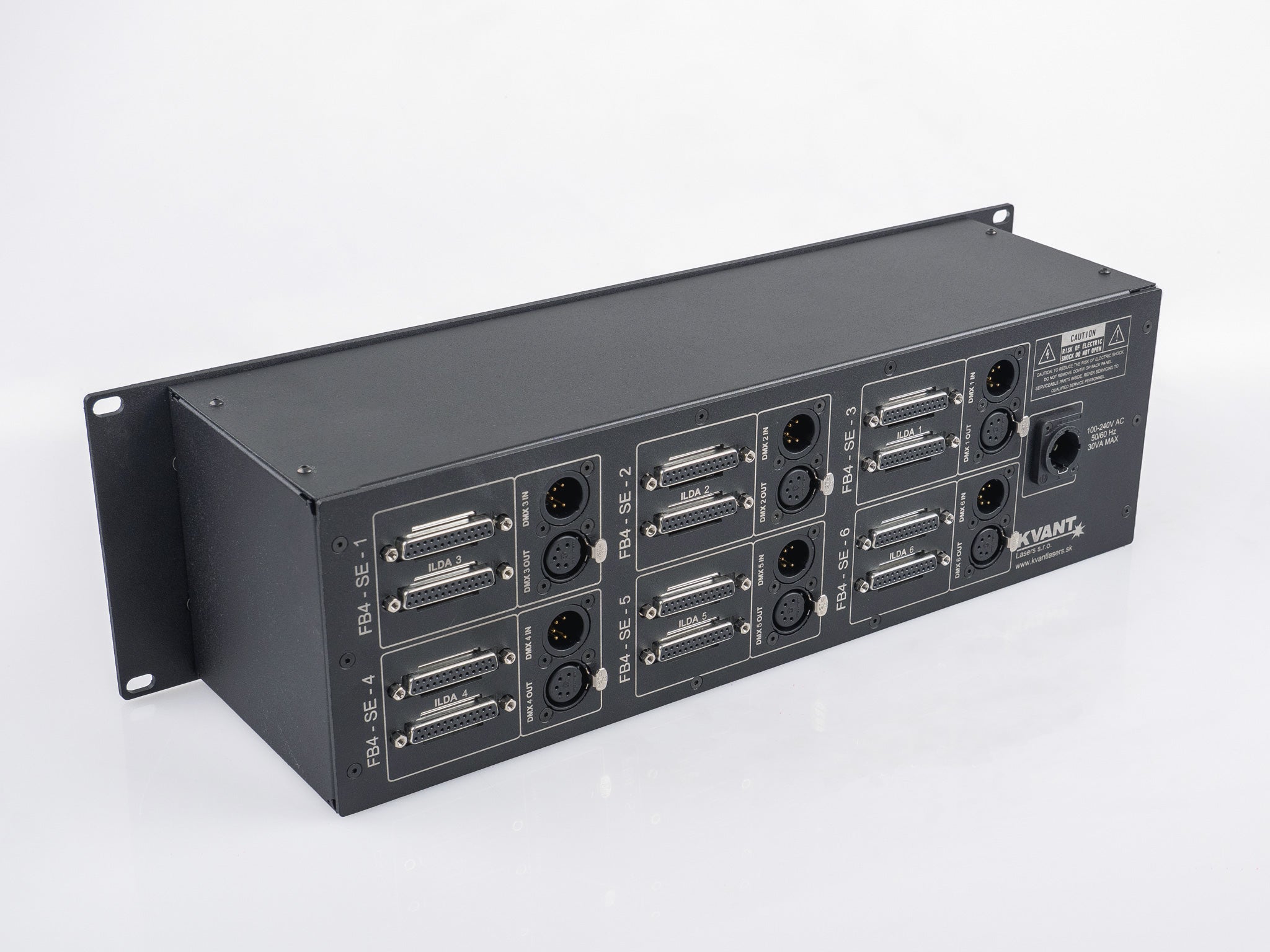

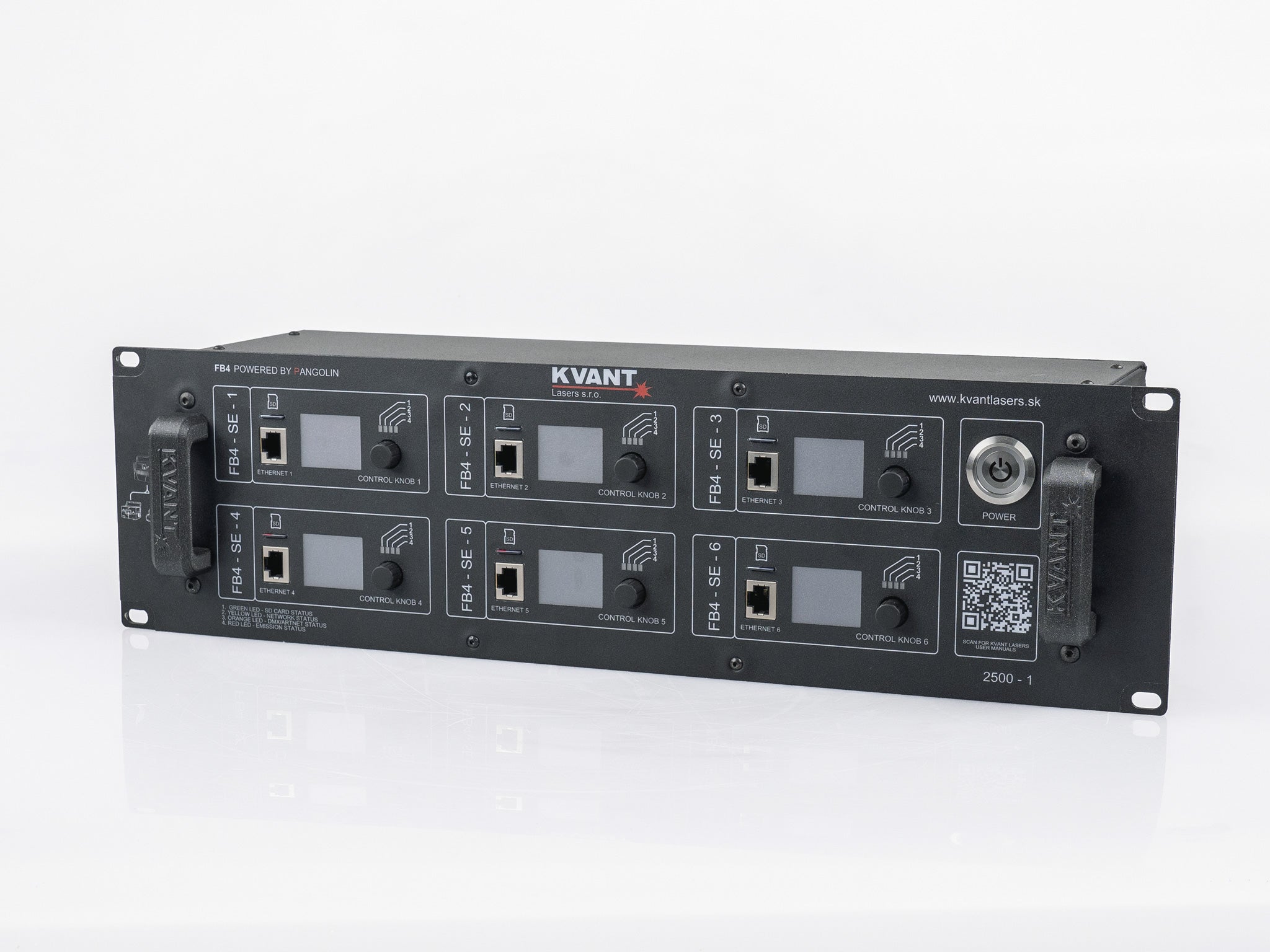

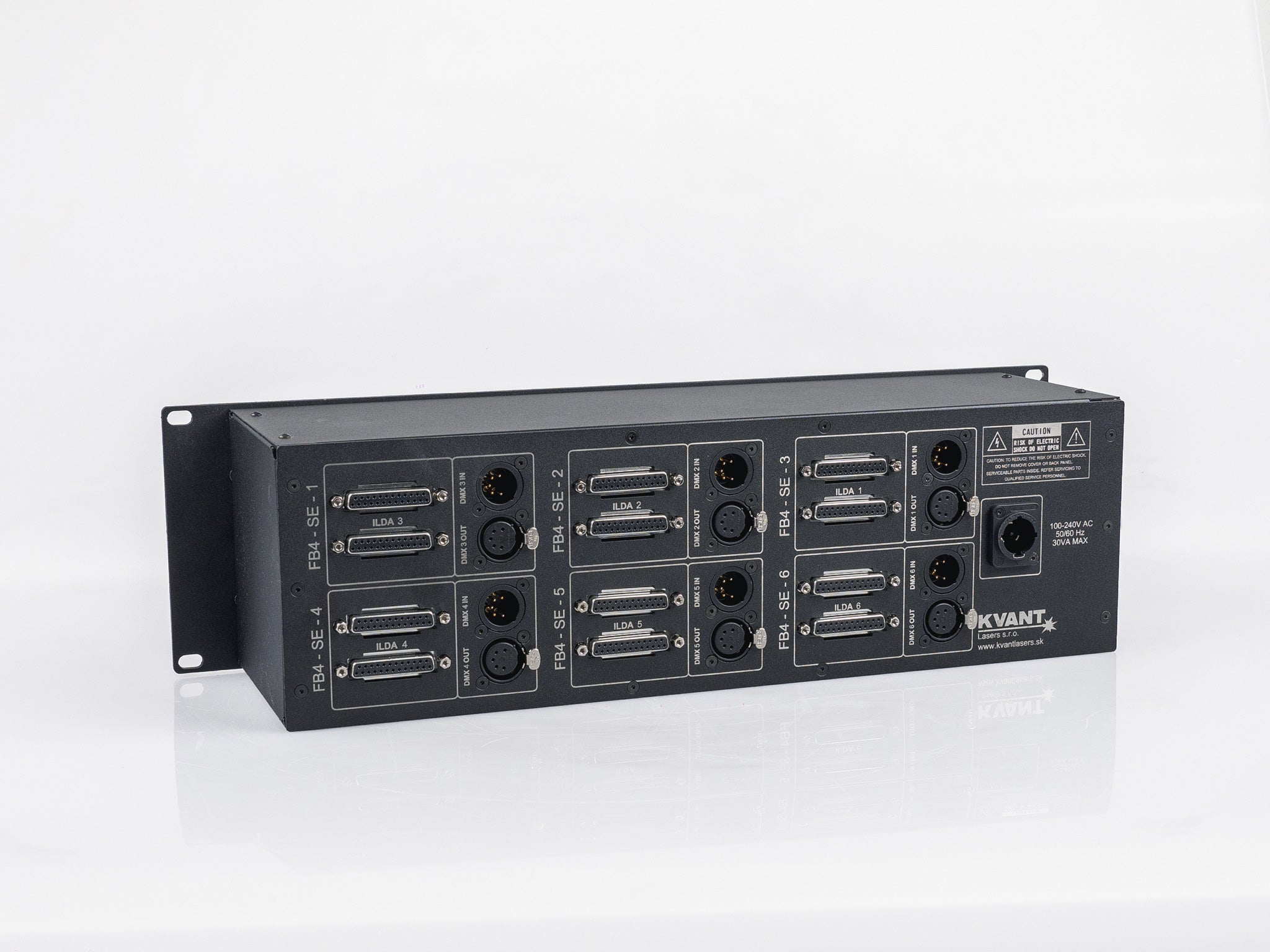

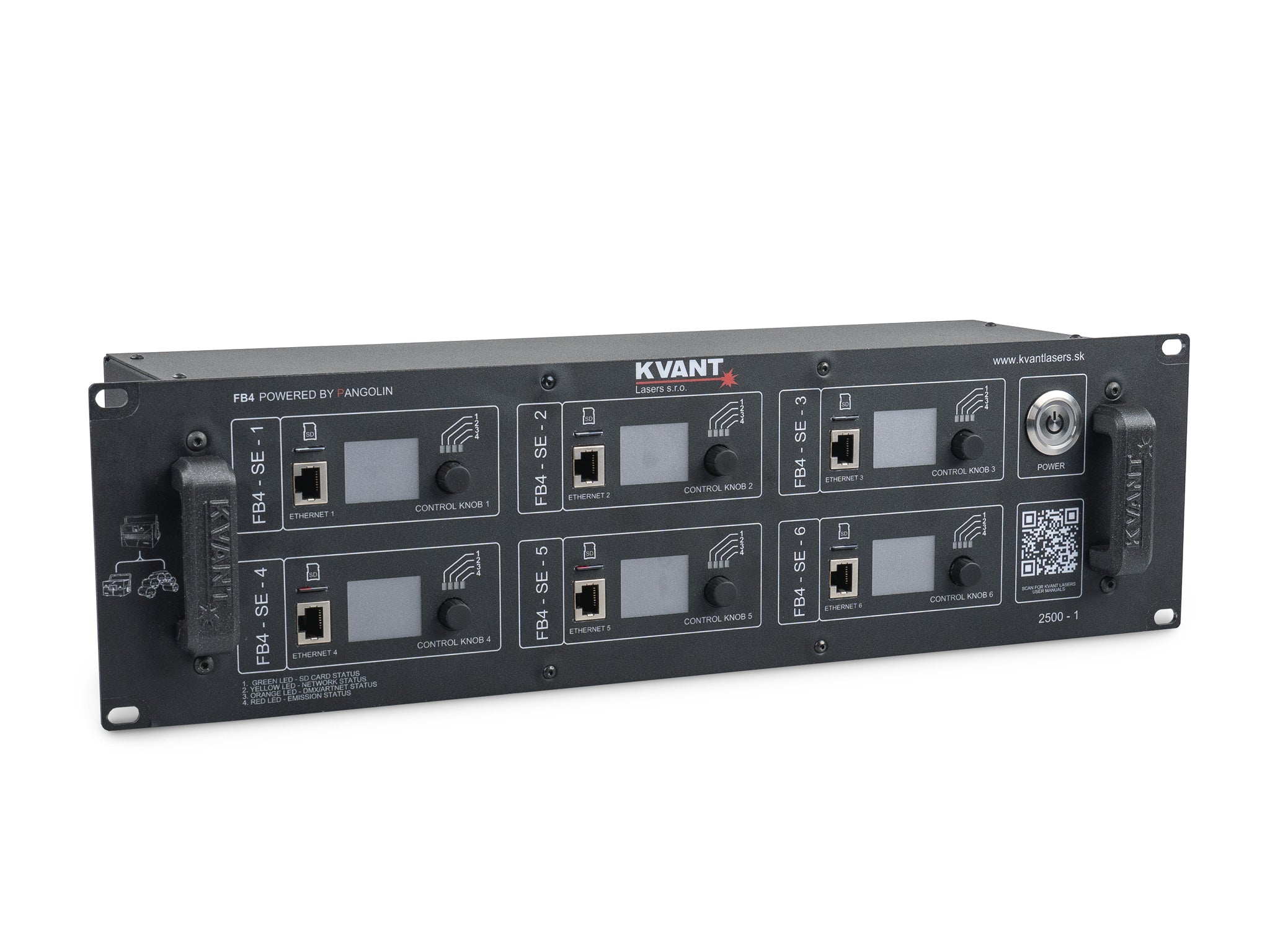

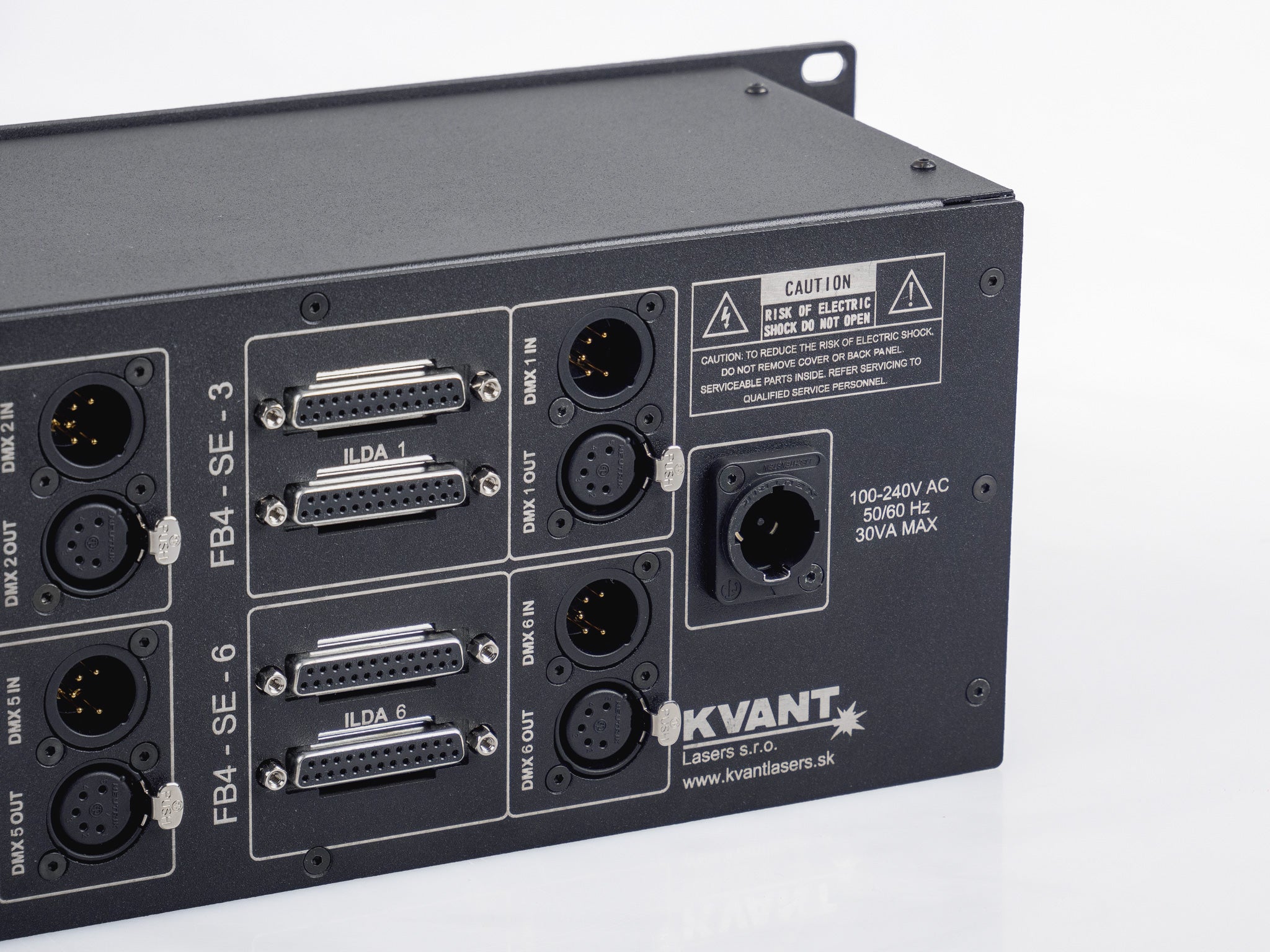

FlashBack 4 Multi Pangolin laser control interface_1
FlashBack 4 Multi Pangolin laser control interface_2
FlashBack 4 Multi Pangolin laser control interface_3
FlashBack 4 Multi Pangolin laser control interface_4
FlashBack 4 Multi Pangolin laser control interface_5
FlashBack 4 Multi Pangolin laser control interface_6
  • Load image into Gallery viewer, FlashBack 4 Multi Pangolin laser control interface_1
  • Load image into Gallery viewer, FlashBack 4 Multi Pangolin laser control interface_2
  • Load image into Gallery viewer, FlashBack 4 Multi Pangolin laser control interface_3
  • Load image into Gallery viewer, FlashBack 4 Multi Pangolin laser control interface_4
  • Load image into Gallery viewer, FlashBack 4 Multi Pangolin laser control interface_5
  • Load image into Gallery viewer, FlashBack 4 Multi Pangolin laser control interface_6

Description

The new FlashBack 4 Multi is a media server for your laser show, allowing you to control multiple projectors separately at once, as well as giving you the ability to easily interface with other lighting and production equipment.
This robust interface also includes a network switch for easy networking of multiple laser systems.
It provides the user with additional ILDA signal outputs [inbuilt ILDA signal splitter]. Pangolin Quickshow 4.0 control software is included and Beyond software upgrades are available.

Main Features:

  • 1-6 FB4-SE control boards integrated into a single control unit
  • Network Switch for easy control signal daisy-chain
  • Dual ILDA Output [ILDA signal splitter]
  • Standalone SD card memory [Auto-mode show playback]
  • Full-colour OLED display
  • Support for DMX, ArtNet, ILDA and OSC [CITP coming soon]
  • Support for up to 120Kpps scan speeds [for above 30Kpps speeds Pangolin BEYOND software is required]
  • Support for 6-colour channels
  • Improved high definition laser output, with interpolation
Show Full Specification

Specifications

Power requirements [V]: 100-230, 50Hz
Consumption: max. 30VA
Ingress protection rating: IP 20
Operation temperature [°C]: 0-40
Housing colour: black
Weight [kg]: 5
Size [mm]: 483 x 90 x 140 [WxHxD] - 2U version
Required rack space: 2U for 1-3 FB4 version | 4U for 4-6 FB4 version
