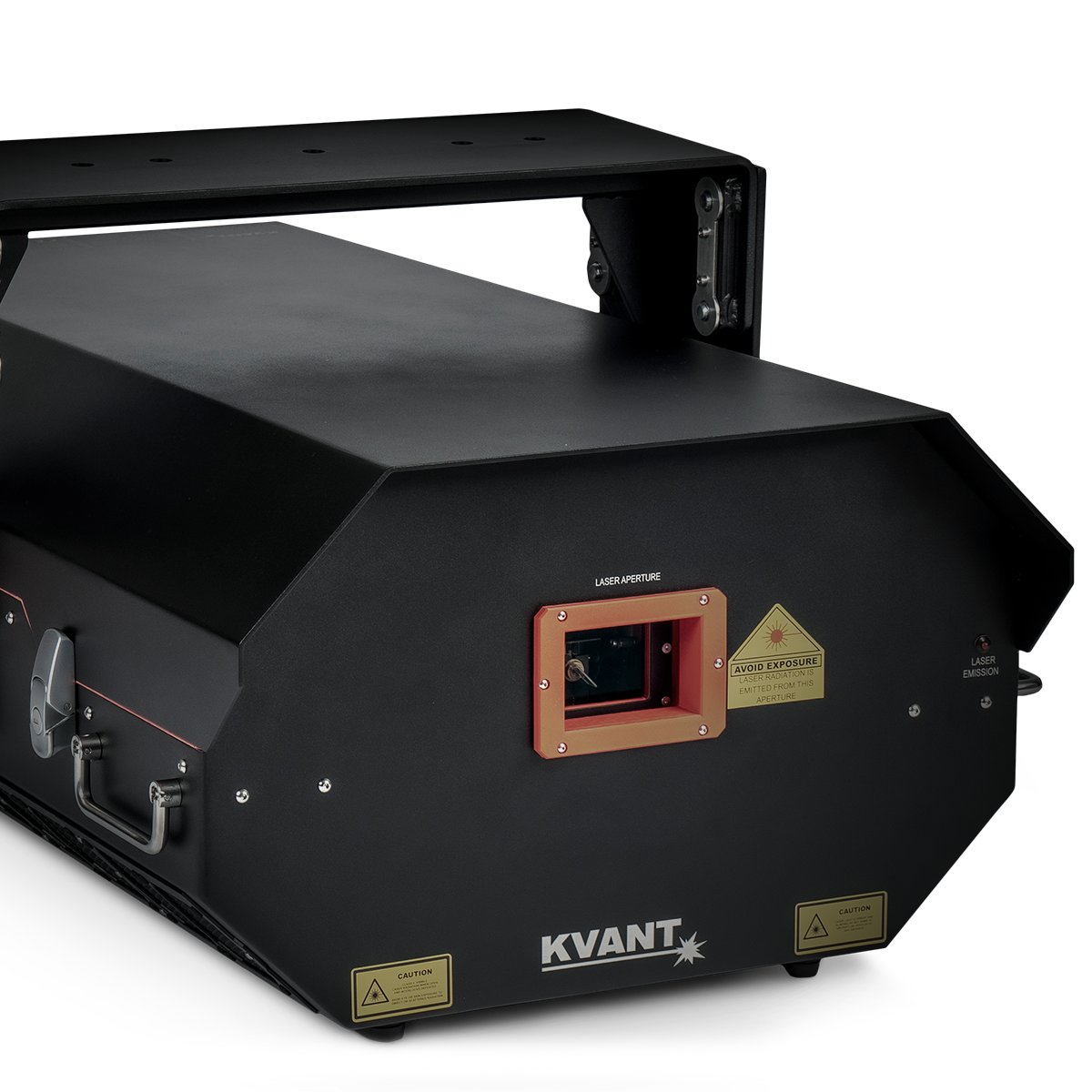

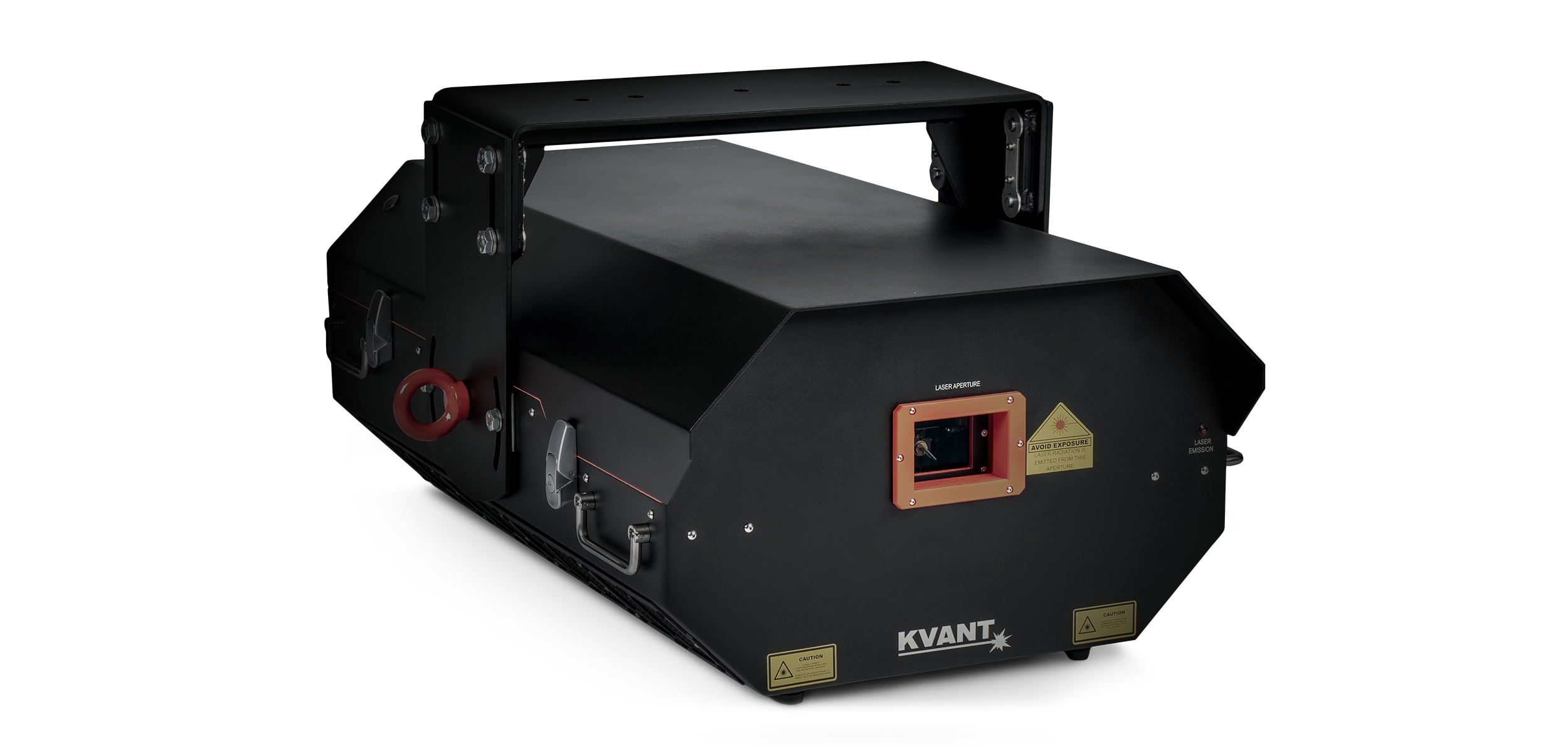

KVANT Epic - all new, high-power, 170-Watt scanning outdoor system

Extreme-power RGB
Descreet look
IP65 industrial deisgn
ArtNet, DMX, ETH, ILDA
Request a Quote

Price on request

Epic 170

For all those epic shows and unforgettable moments - KVANT brings you the Epic!

KVANT Epic systems are our new laser projectors with super-charged power output. The three projectors in the range offer 100-Watt, 170-Watt and 270 Watts full-colour output with scanners capable of atmospheric, abstract and basic graphic effects. The Epic is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.

And because we understand that the internal colour alignment of RGB modules can be an issue when lasers are permanently installed far from reach, we fitted Epic models with Motorised Dichroic Filters as default, making that otherwise fiddly procedure an effortless task.

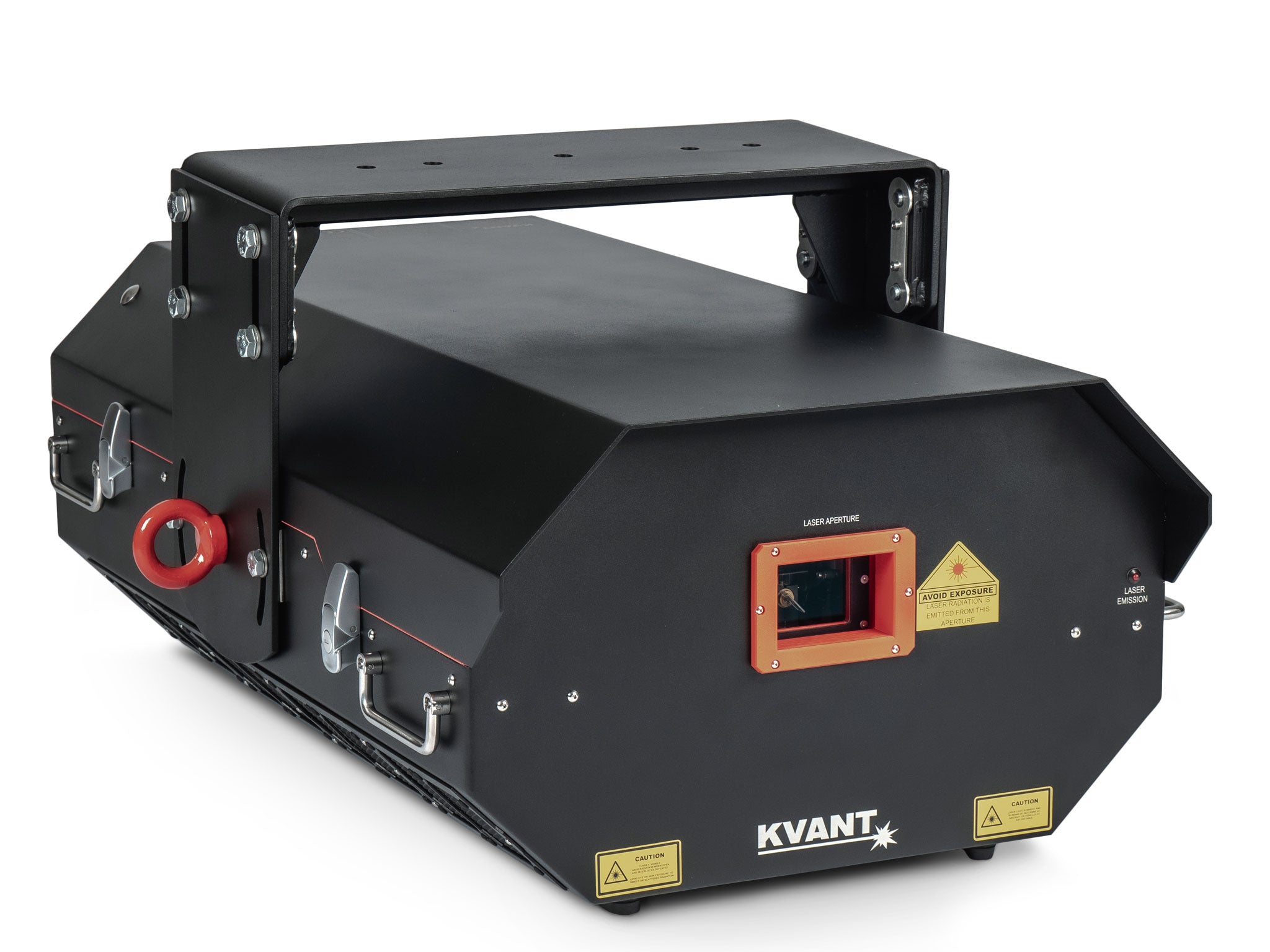

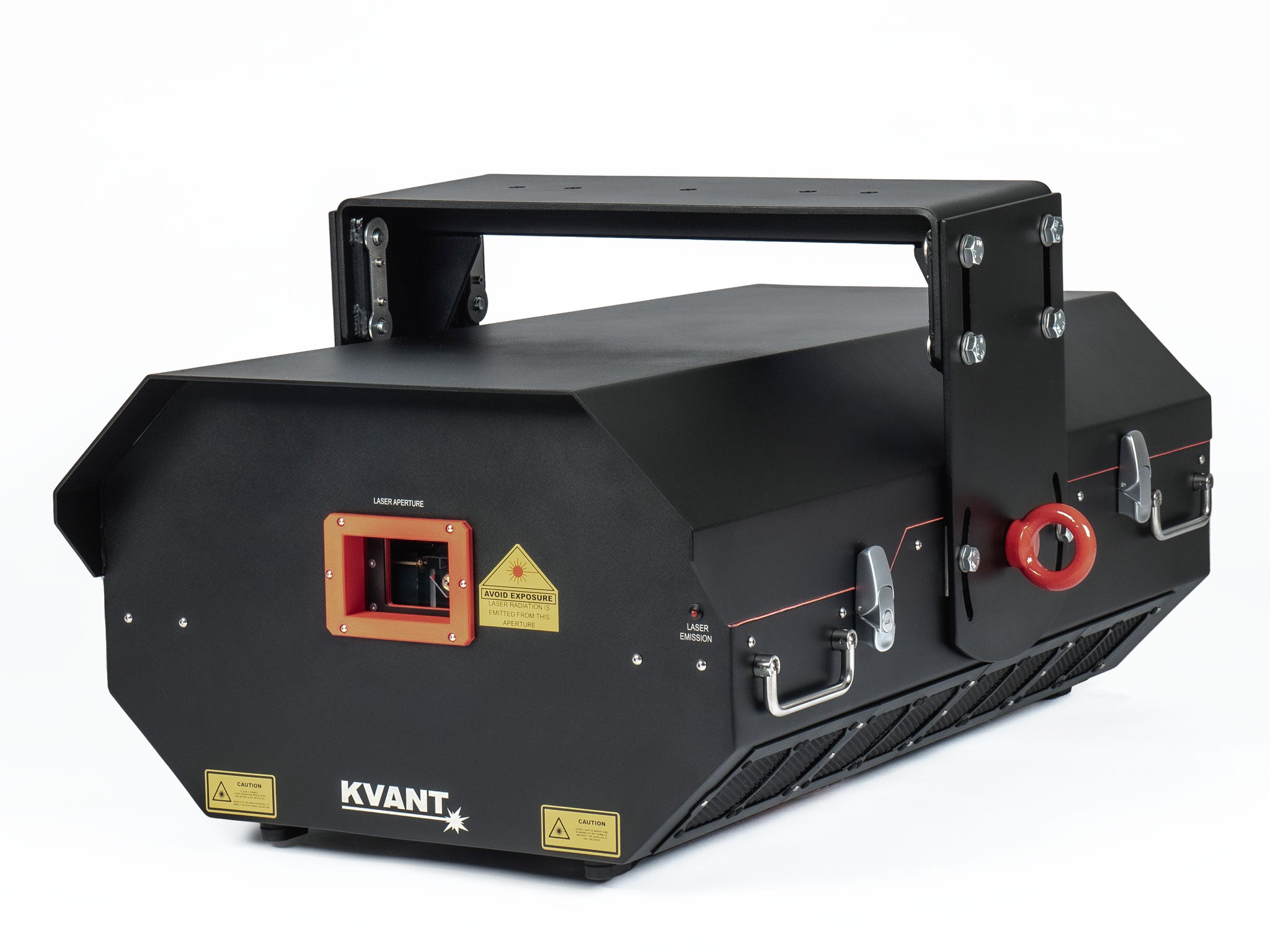

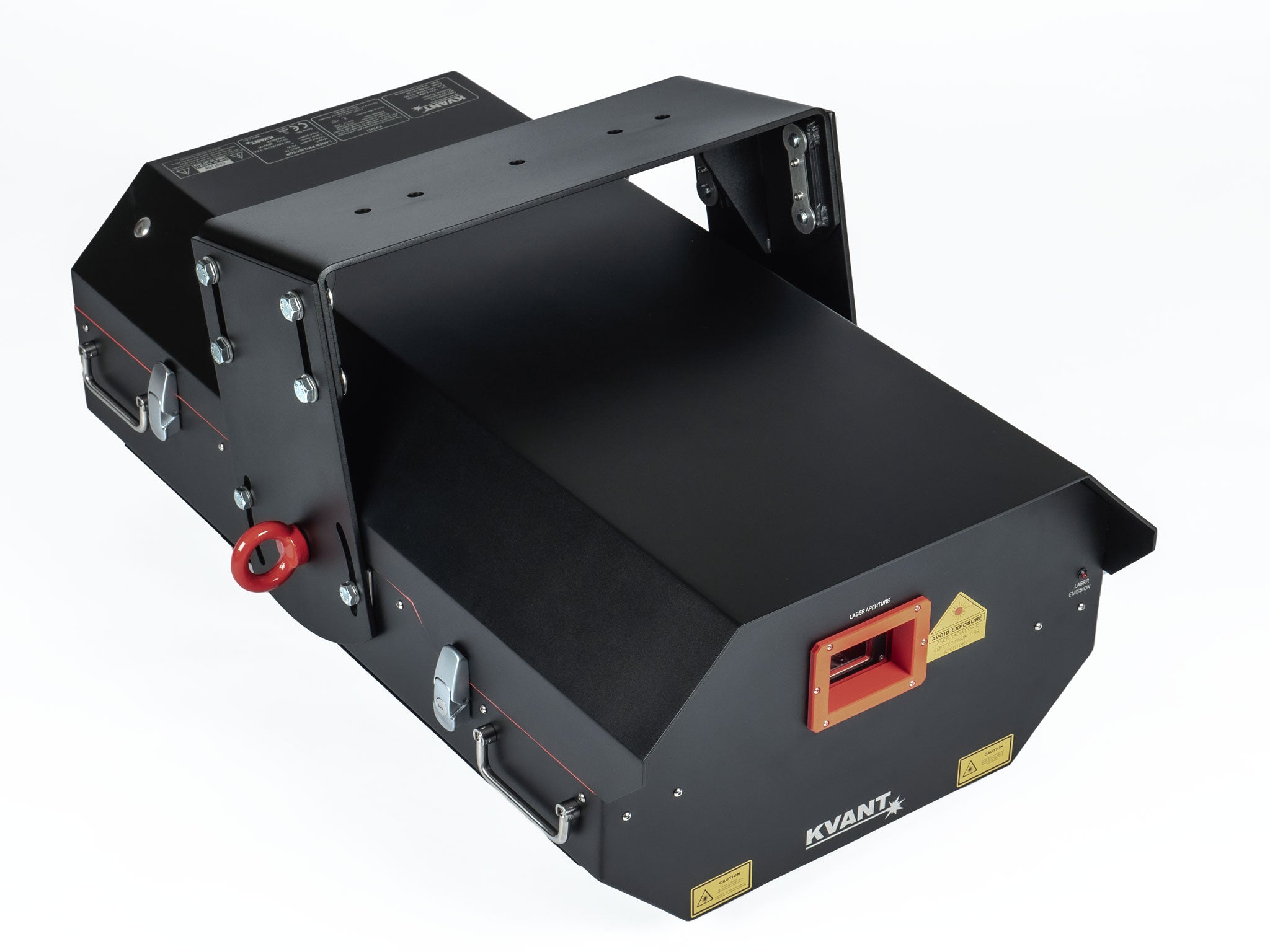

  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_1
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_2
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_3
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_4
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_5
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_6
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_7
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_8
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_9
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_10
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_12
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_13
  • Load image into Gallery viewer, Kvant Lasers - Epic 170 watts full-colour RGB outdoor laser show projector_14

What is in the Package

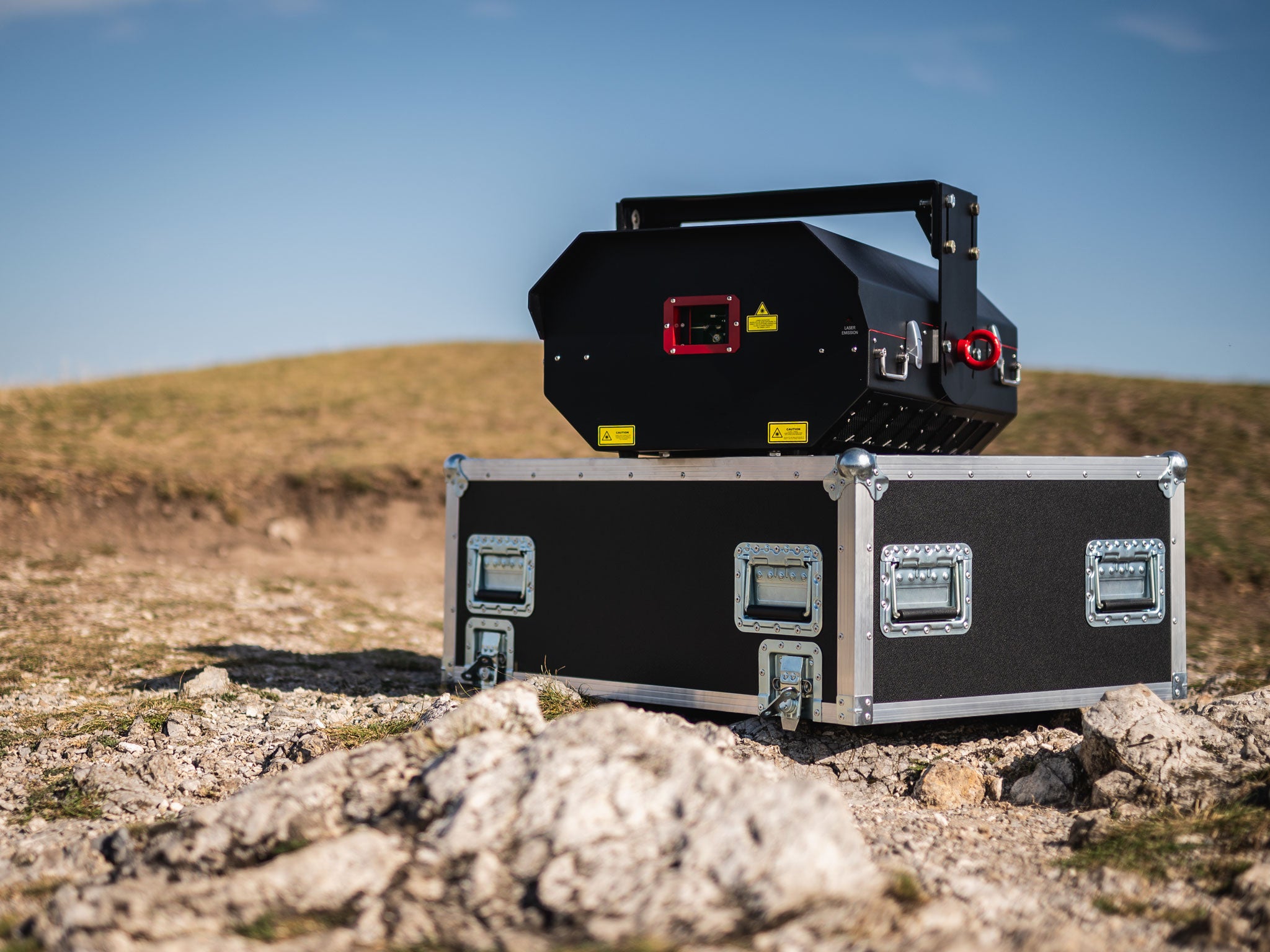

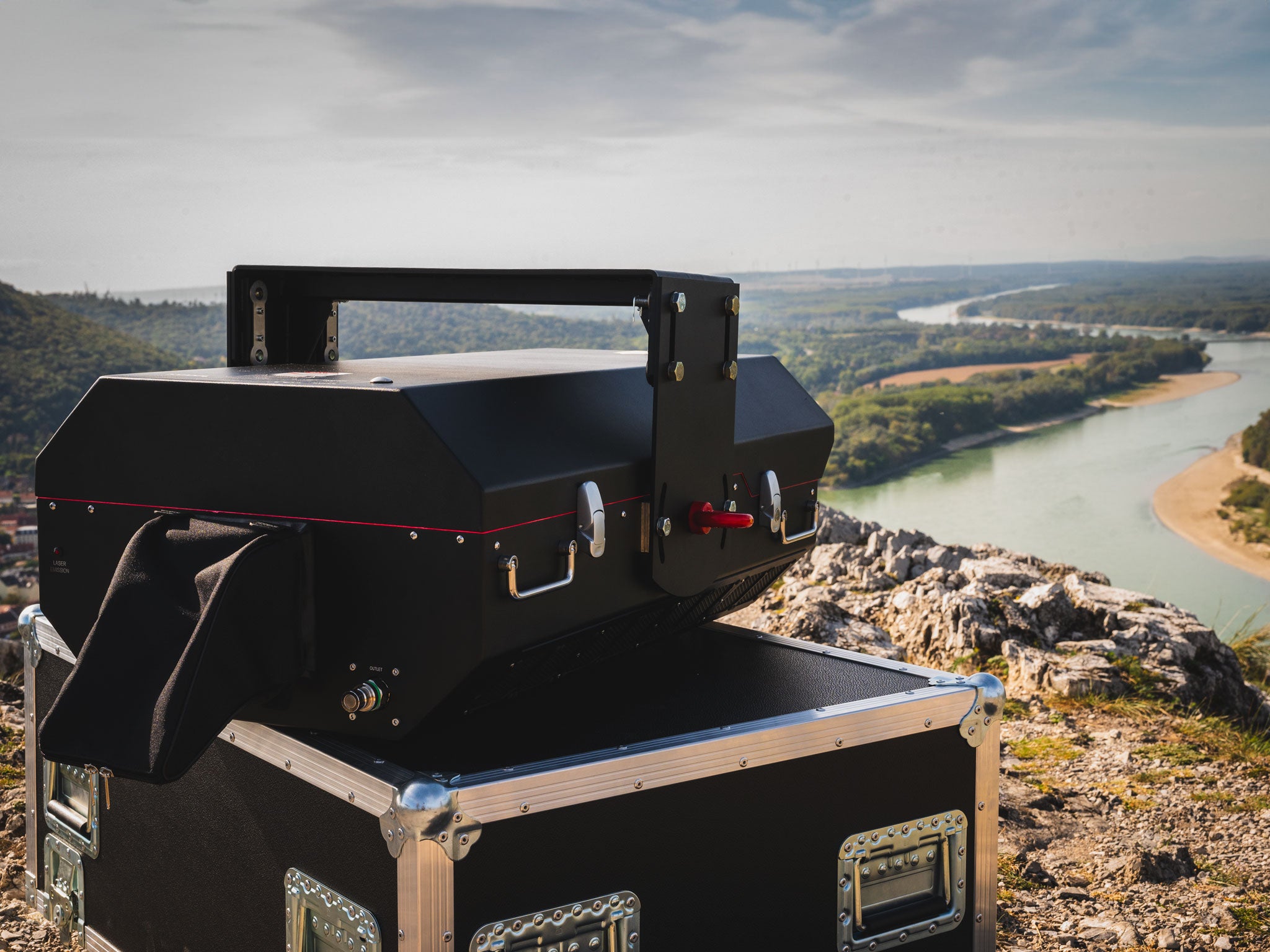

Plywood flight case
Laser projector
Mains cable
Ethernet cable
E-STOP with XLR cable
Interlock [US only]
Safety keys
USB drive with Manual
QC Certificate

Alternative Products

100 Watts scanning projector
100-Watt EPIC scanning laser projector made in IP65 housing for outdoors.
Regular price
42,129.00€
Sale price
42,129.00€
Regular price
Unit price
per
Sold out
Learn More
270 Watts scanning laser
270-Watt EPIC scanning laser projector made in IP65 housing for outdoors.
Price on request Learn More
400 Watt RGB single-beam Sky Laser intended for architectural use and landmark illumination.
Price on request Learn More
Top-class 55-Watt laser projector
Most powerful 55-Watt OPSL-based full-colour laser projector.
Price on request Learn More

Optional Upgrades

Accessories

Pangolin BEYOND Essentials Licence
Rental/forever licence, works on both FB3 and FB4.
Regular price
108.00€
Sale price
108.00€
Regular price
Unit price
per
Sold out
Learn More

Specifications

Source | Type:
Semiconductor laser diode [FAC] | Full-colour laser projector
Suitability: Outdoor laser displays [atmospheric, abstract, simple graphics]
System control: FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]
Compliant with:
EN 60825-1
Ingress Protection rating:

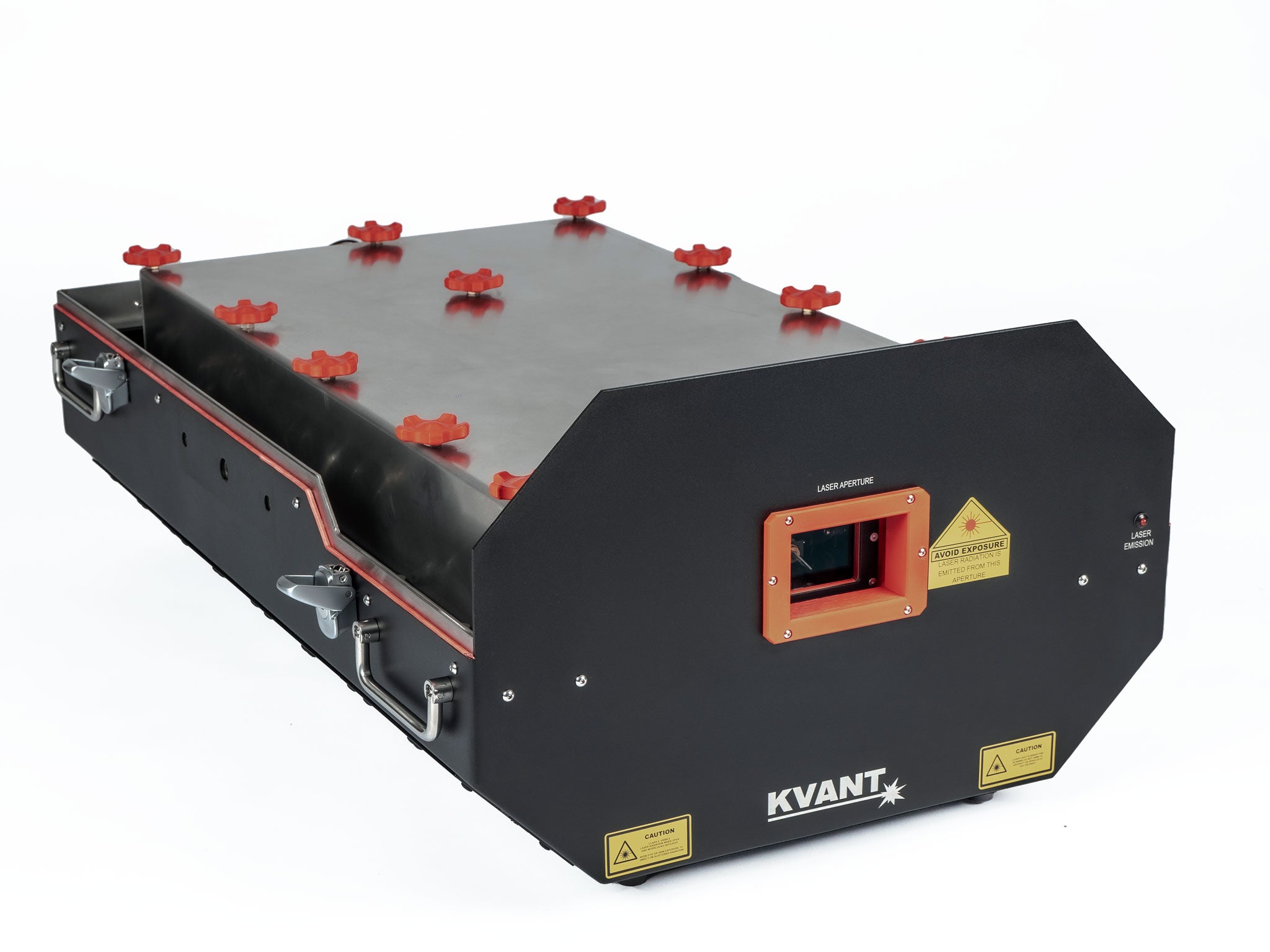

IP65 with the optional Rain Cover installed [certification in progress]
Weight [kg]: 89
Size [WxHxD, mm]: 500 x 315 x 876 [Technical Drawings are in the SUPPORT section of this page]
Guaranteed opt. output: 170 Watts
Red | Green | Blue [W]:
30 | 60 | 80 [*note]
Wavelengths [nm, ±5nm]: 638 | 525 | 465
Beam size [mm]: 10 x 12
Beam divergence [mrad]:
1.1 mrad [full angle, **note]
Modulation [kHz] | type: 100 | analogue
X-Y scanners: Juno 5 | 20 Kpps @ 8°, max. scanning angle 40° on both axes
Power requirements [V] | Input:
100-240/50-60Hz | Neutrik powerCON TRUE1
Max. power consumption [VA]: 1800
Operation temperature [°C]: 10-35
Included in the set:
Plywood flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual.
Pangolin QuickShow laser control and creation software is available for FREE download.
HW features:
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Scanning system overload protection.
Colour Balance display mode.
Motorised Dichroic Filters for an easy colour alignment.
Laser safety features:
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
*note
Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
**note The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
