For all those epic shows and unforgettable moments - KVANT brings you the Epic!

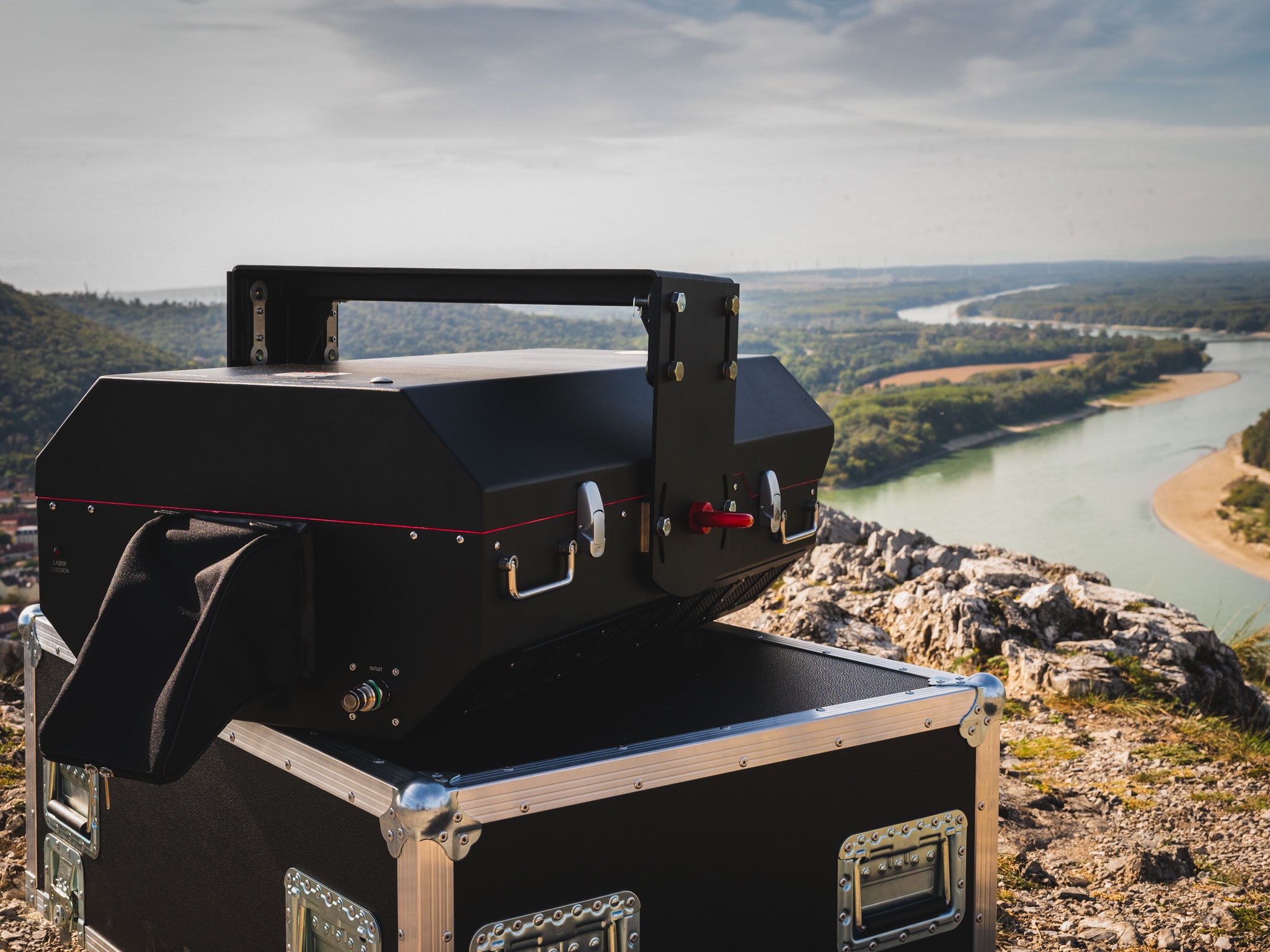

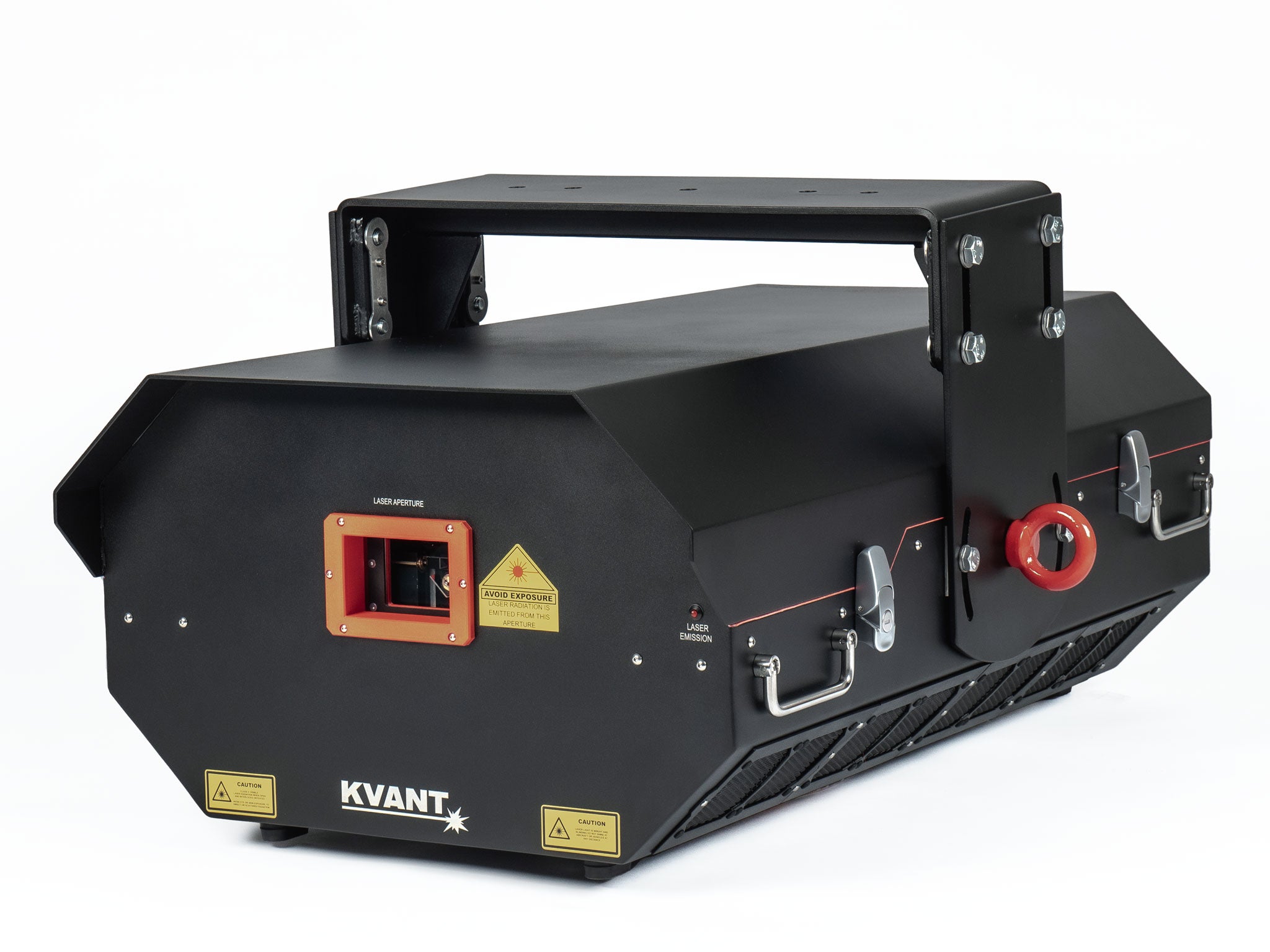

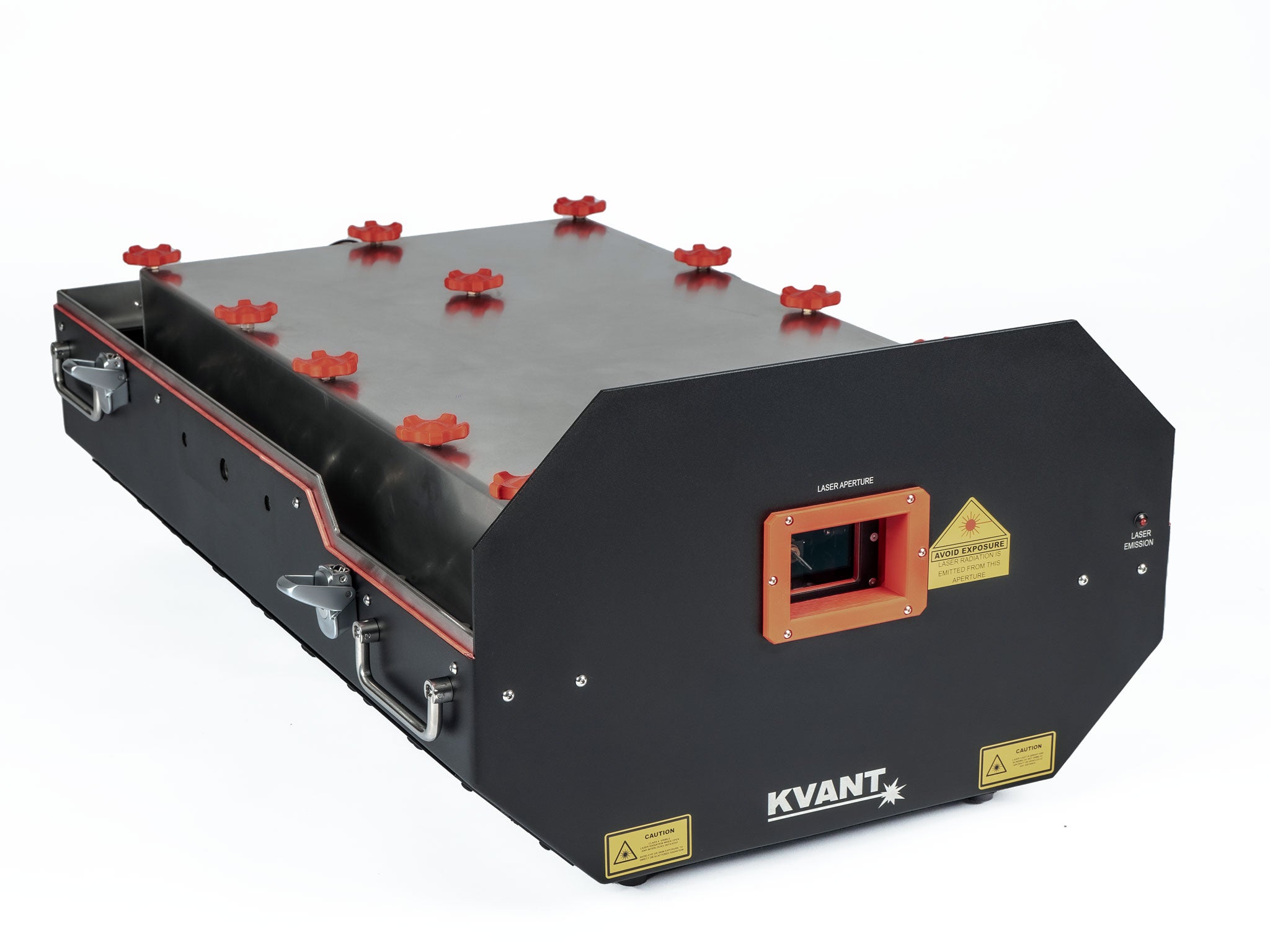

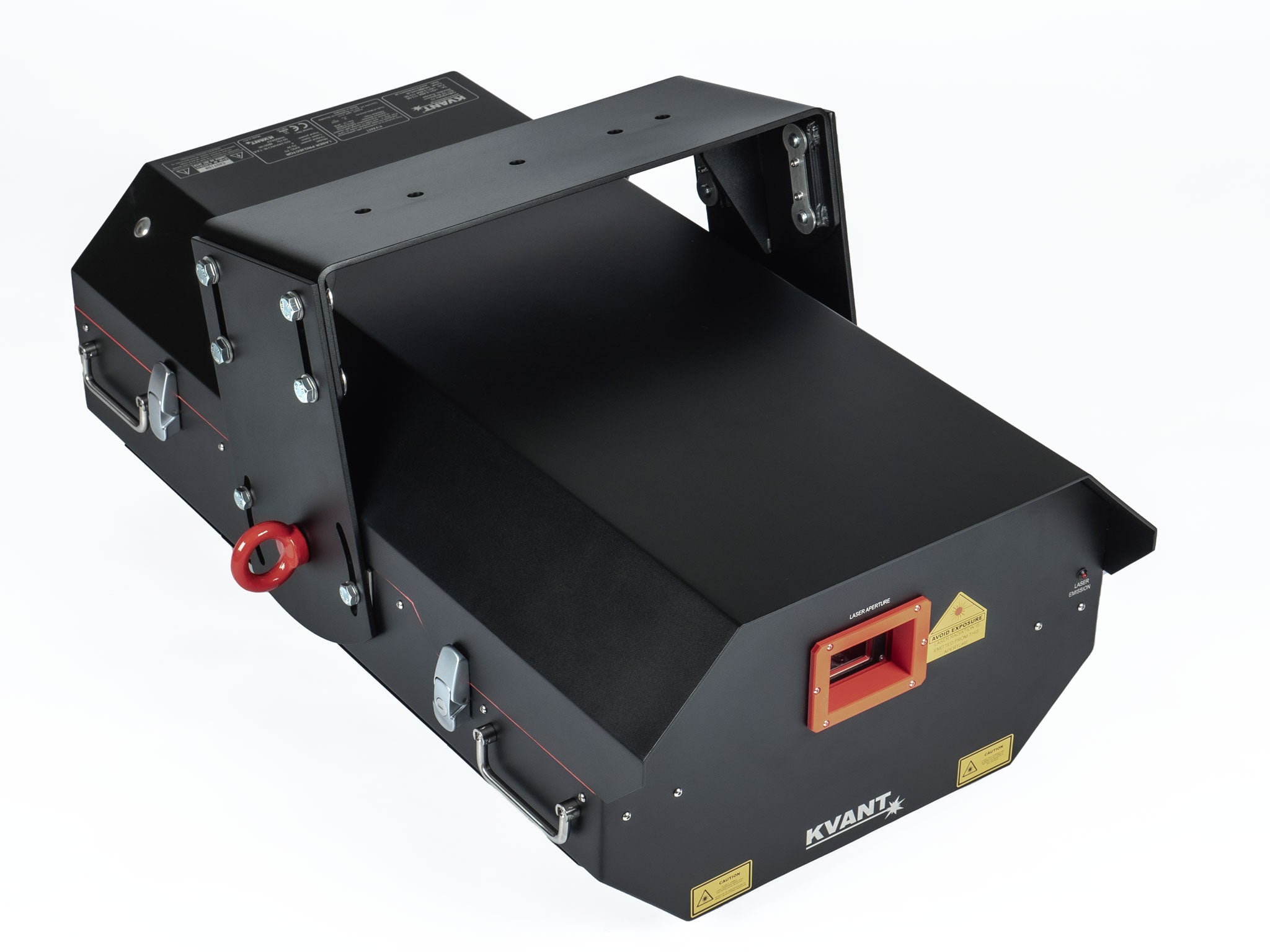

KVANT Epic systems are our new laser projectors with super-charged power output. The three projectors in the range offer 100-Watt, 170-Watt and 270 Watts full-colour output with scanners capable of atmospheric, abstract and basic graphic effects. The Epic is designed for harsh outdoor environments, and its housing is built to IP65 standards - thoroughly waterproof and dustproof.
And because we understand that the internal colour alignment of RGB modules can be an issue when lasers are permanently installed far from reach, we fitted Epic models with Motorised Dichroic Filters as default, making that otherwise fiddly procedure an effortless task.
An Outdoor Full-colour
The Epic projectors for all those epic moments - the new range of Xhigh-power scanning laser projectors.
What is in the Package
|Source | Type:||Semiconductor laser diode [FAC] | Full-colour laser projector|

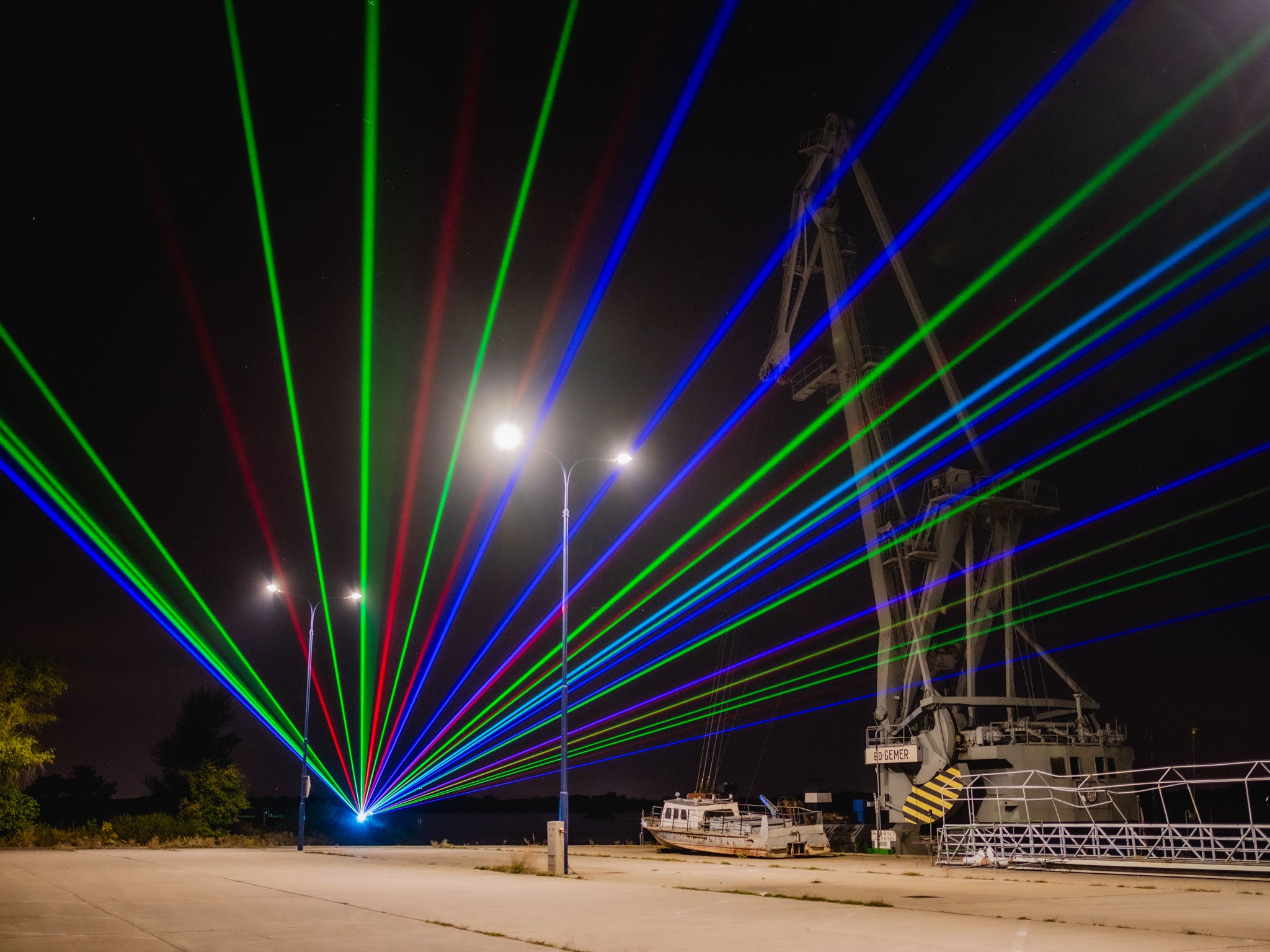

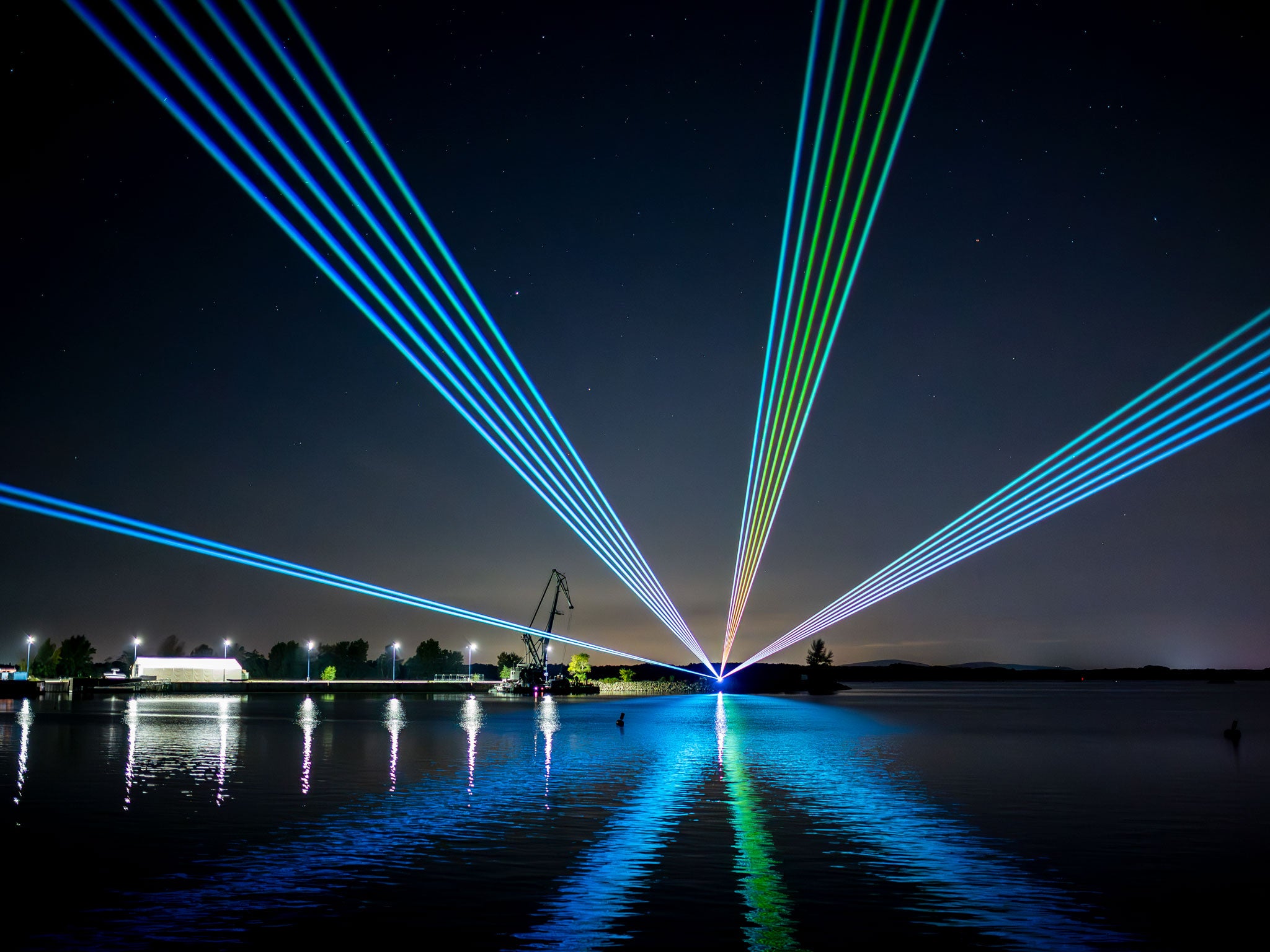

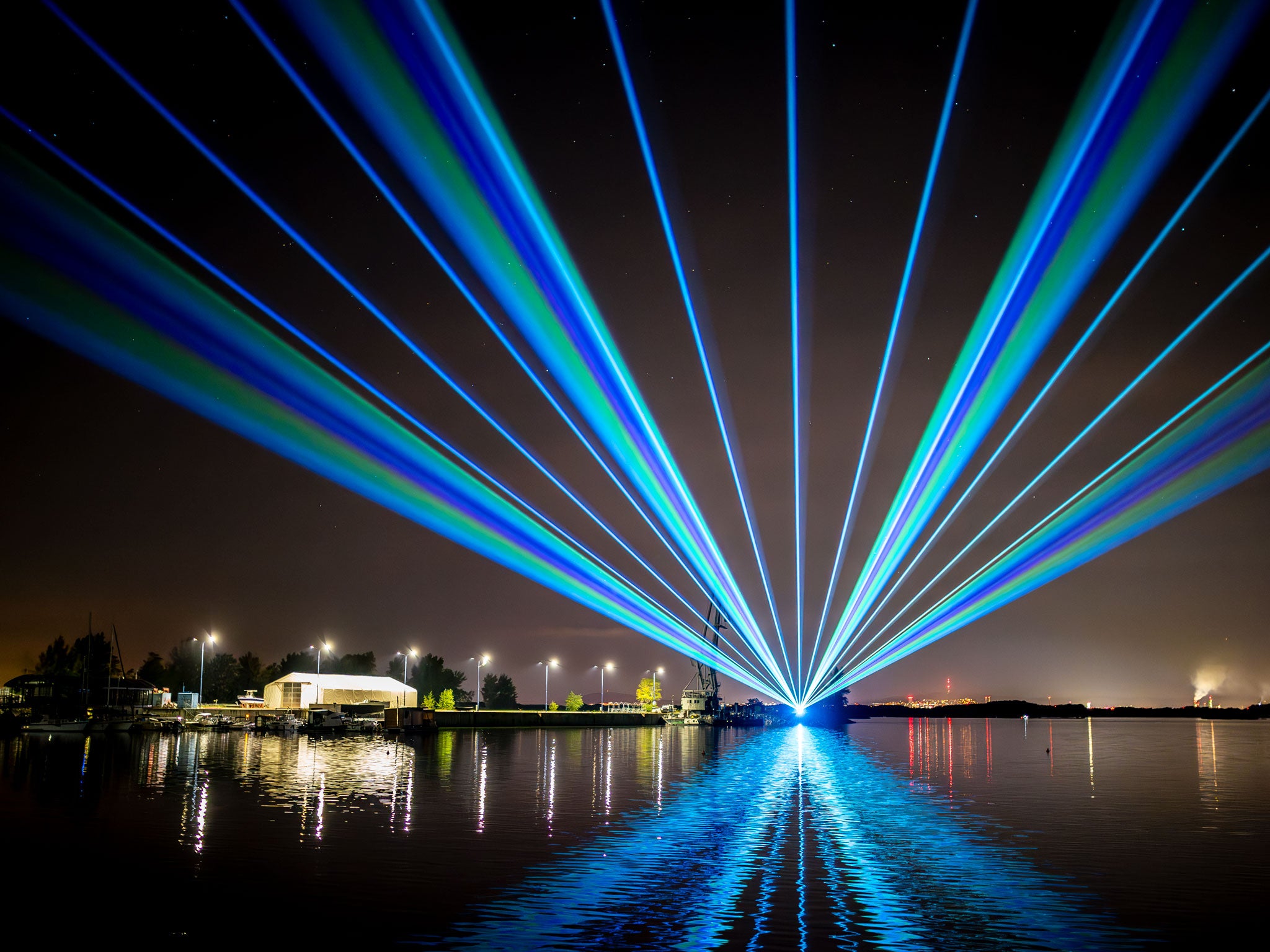

|Suitability:||Outdoor laser displays [atmospheric, abstract, simple graphics]|
|System control:||FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]|
|Compliant with:||EN 60825-1|
|Ingress Protection rating:||IP65 with the optional Rain Cover installed [certification in progress]|
|Size [WxHxD, mm]:||500 x 315 x 876 [Technical Drawings are in the SUPPORT section of this page]|
|Guaranteed opt. output:||100 Watts|
|Red | Green | Blue [W]:||
23 | 34 | 50 [*note]
|Wavelengths [nm, ±5nm]:||638 | 525 | 455|
|Beam size [mm]:||7 x 12|
|Beam divergence [mrad]:||1.1 mrad [full angle, **note]|
|Modulation [kHz] | type:||100 | analogue|
|X-Y scanners:||Juno 5 | 20 Kpps @ 8°, max. scanning angle 40° on both axes|
|Power requirements [V] | Input:||100-240/50-60Hz | Neutrik powerCON TRUE1|
|Max. power consumption [VA]:||1800|
|Operation temperature [°C]:||10-35|
|Included in the set:||

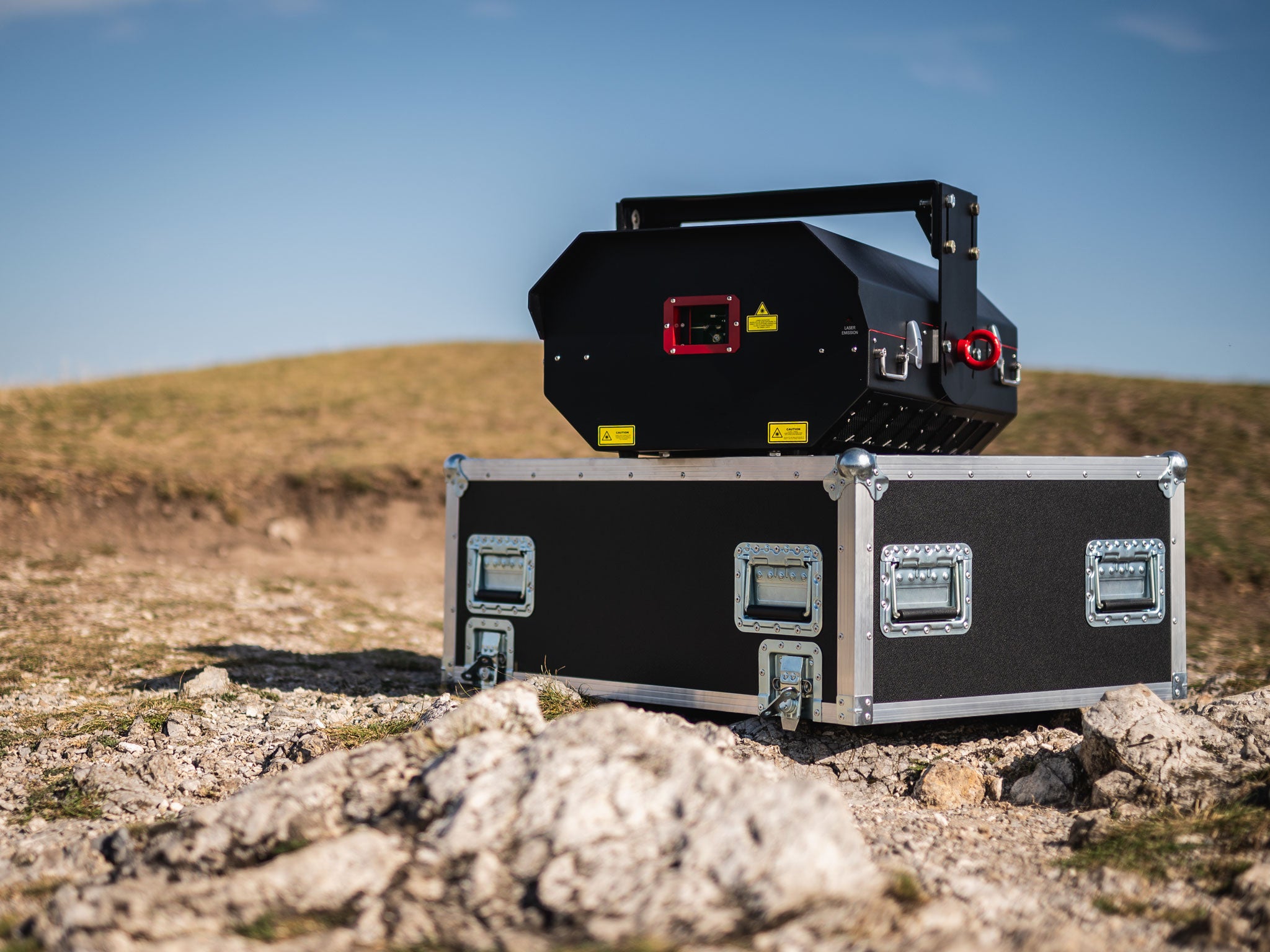

Plywood flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual.
Pangolin QuickShow laser control and creation software is available for FREE download.
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Scanning system overload protection.
Colour Balance display mode.
Motorised Dichroic Filters for an easy colour alignment.
|Laser safety features:||
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
|*note||Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.|
|**note||The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
