ATOM XR 18

The XR - an innovative type of powerful RGB outdoor laser projector based on an entirely new architecture. We are pioneering again!

18 watts

FULL-COLOUR OUTPUT

Only 14 kg

AND VERY COMPACT

IP 65

FULLY WATERPROOF

Overview Specifications Upgrades Downloads

Request A Quote

Price on request

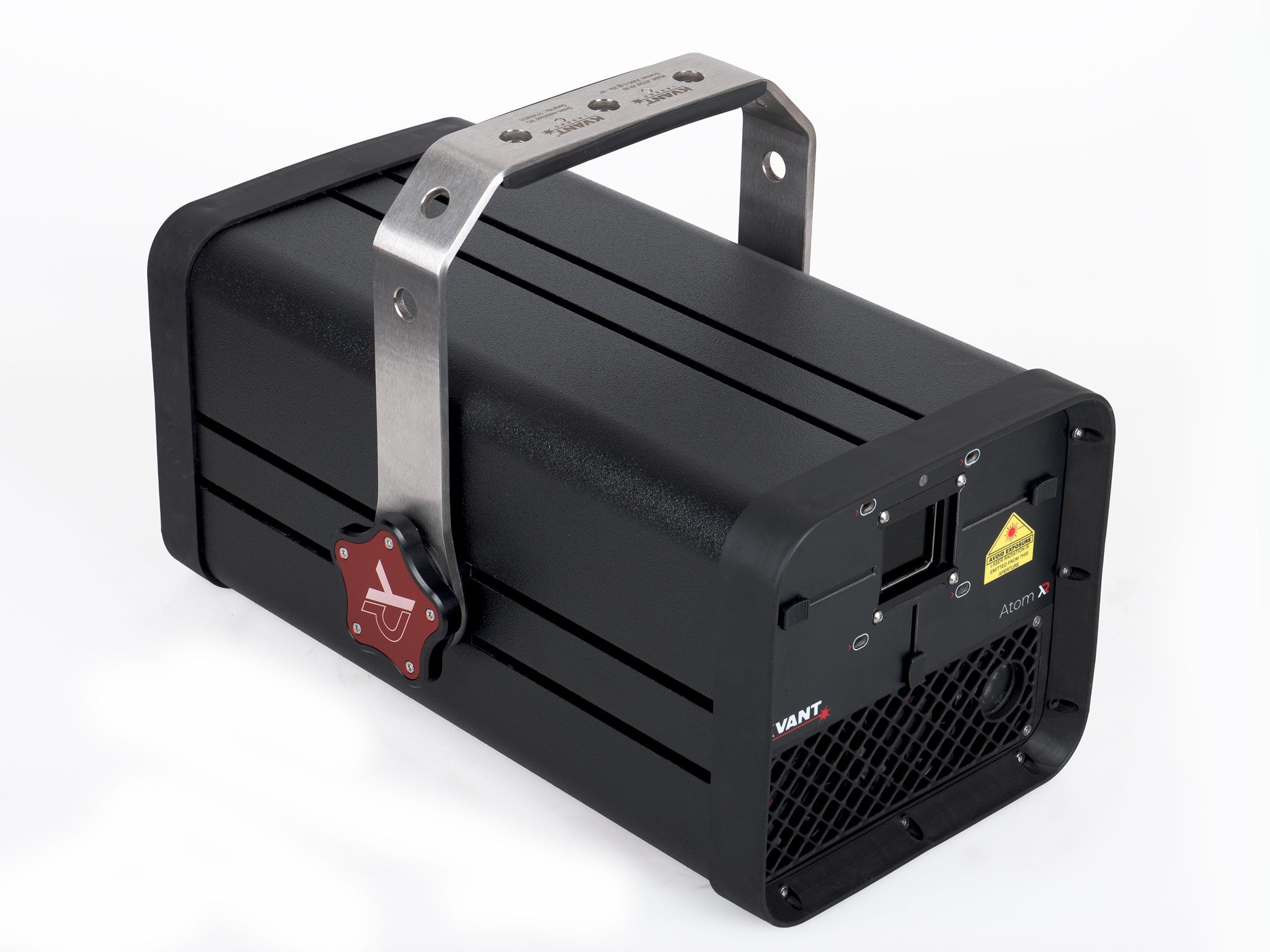

Laser show projector KVANT Atom XR 18_10

Laser show projector KVANT Atom XR 18_11

Laser show projector KVANT Atom XR 18_12

Laser show projector KVANT Atom XR 18_13

Laser show projector KVANT Atom XR 18_14

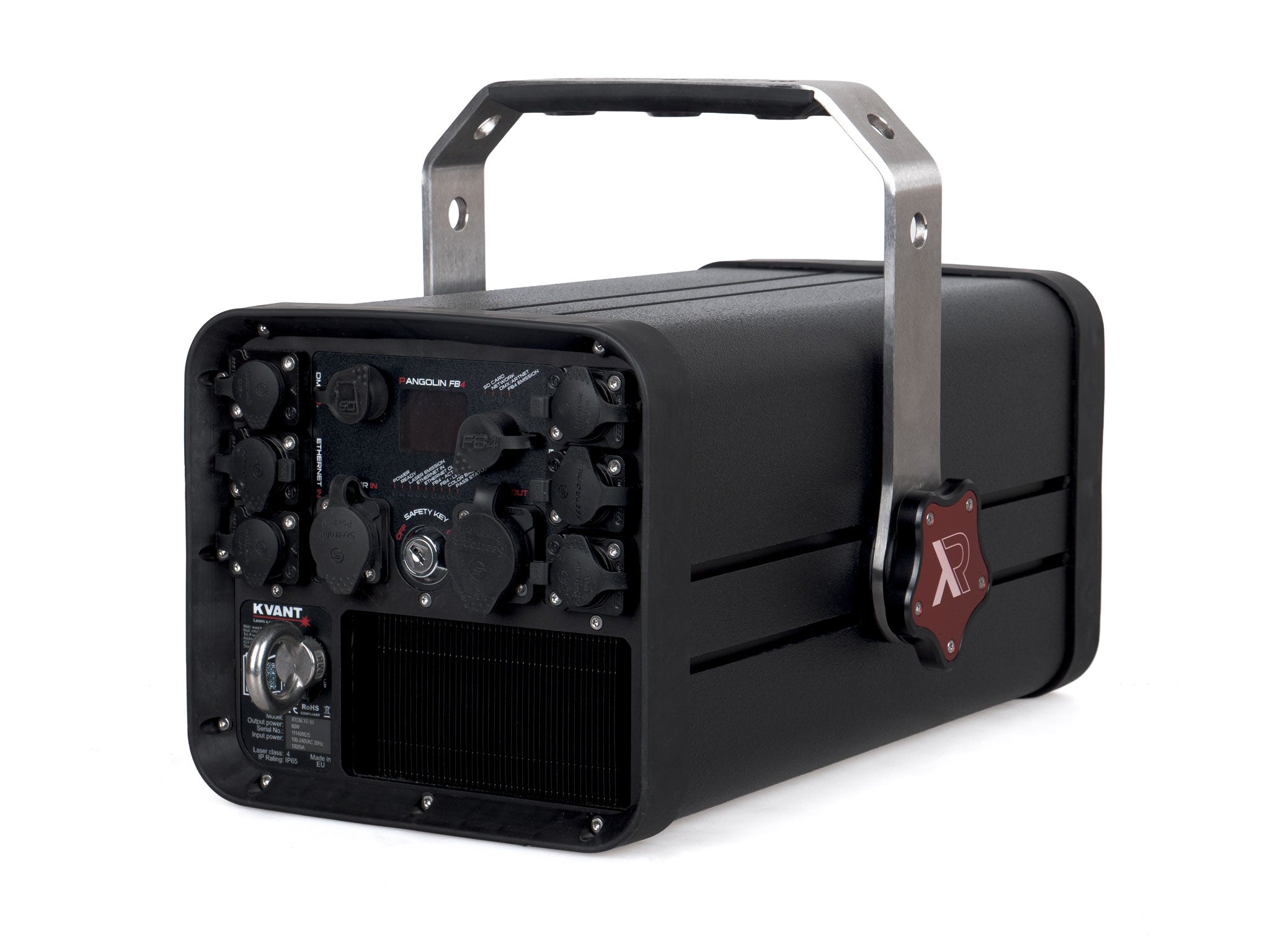

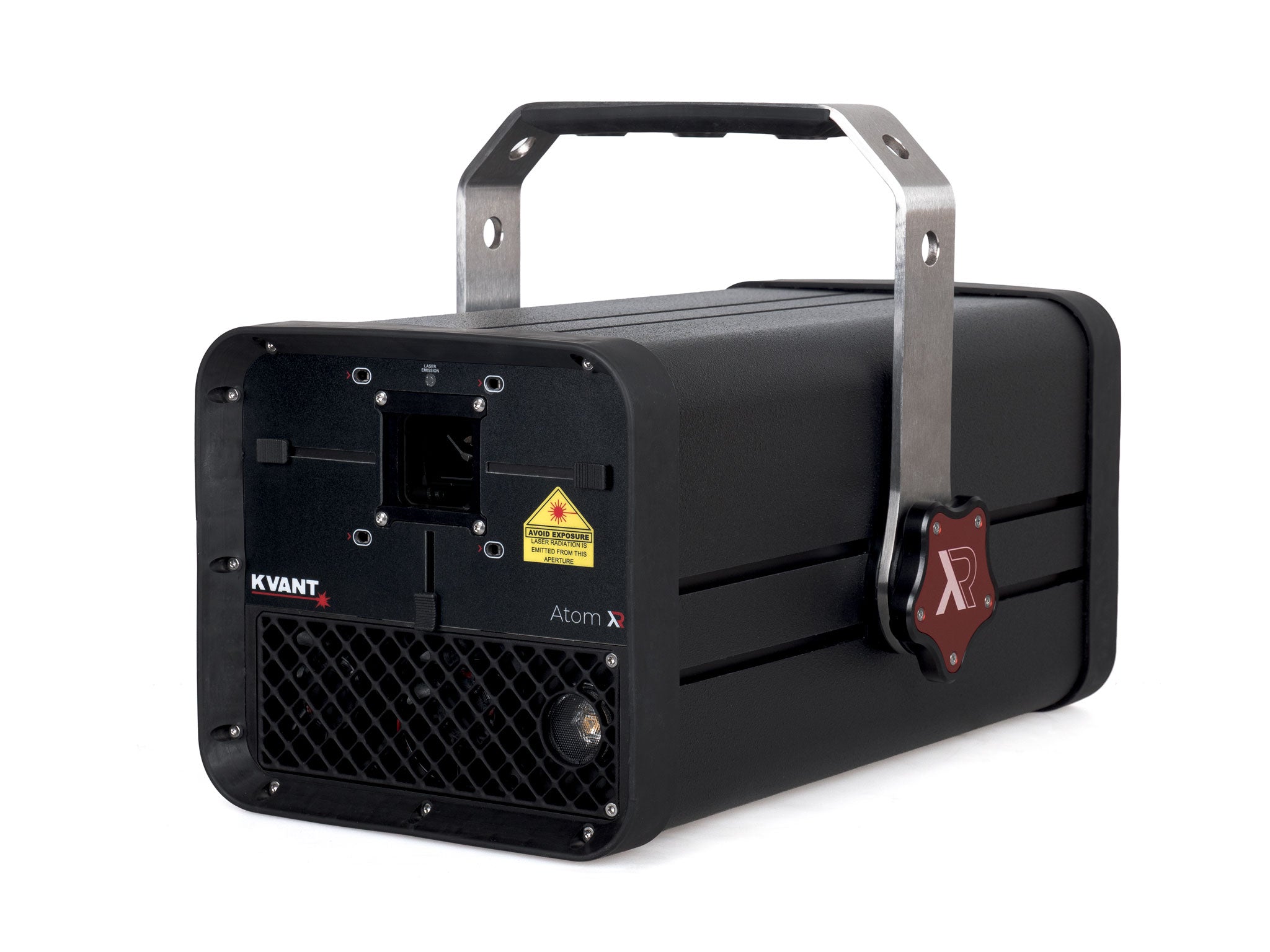

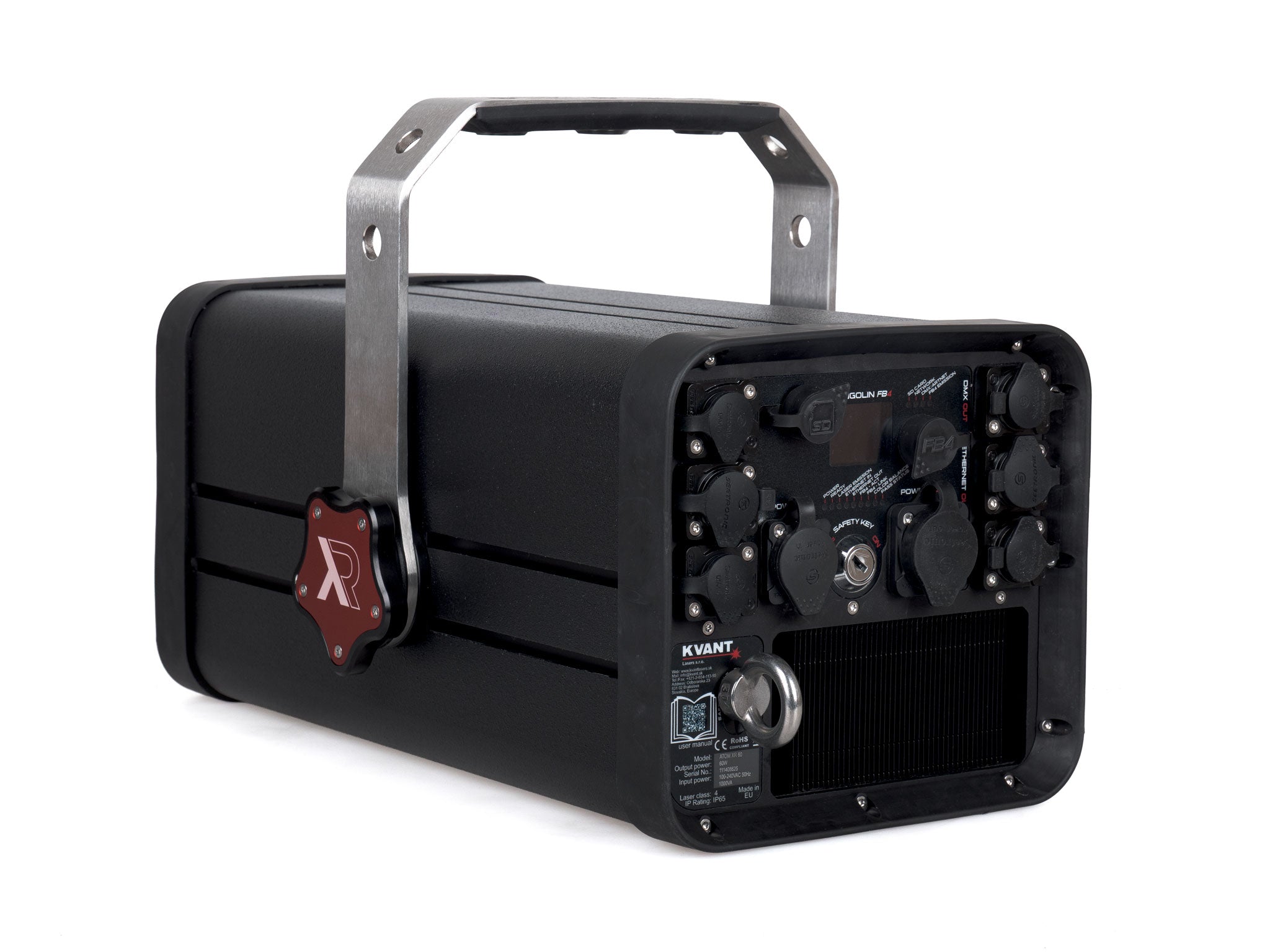

Atom XR 18

Name: Atom XR 18
Brand: Kvant Lasers, s.r.o.
Price: 8557.00 EUR
Availability: InStock

Designed from scratch utilising only the best of our technology and knowledge, following customers’ needs and wishes, and adding a pinch of Kvant’s magic, the Atom XR is the only laser projector you will ever need for 99% of all shows.

It is compact and light, 100% made in Slovakia, and with no corners cut.

The XR comes with laser modules and a cooling structure built on a new state-of-the-art architecture.

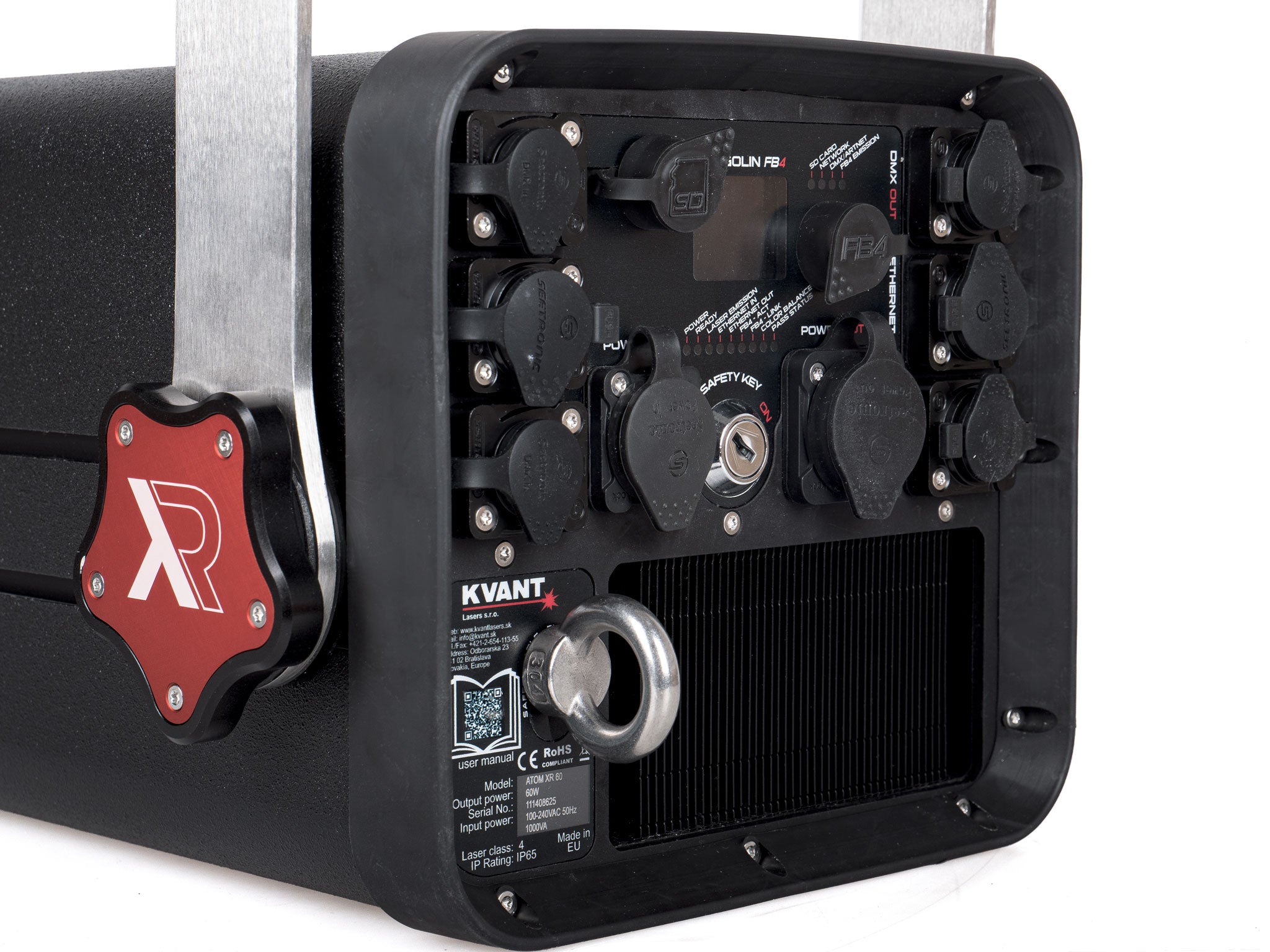

It’s fitted with precise Juno scanners, an FB4 control interface, aperture masking plates, a 360-degree swivel-sliding mounting bracket and a device stage locator.

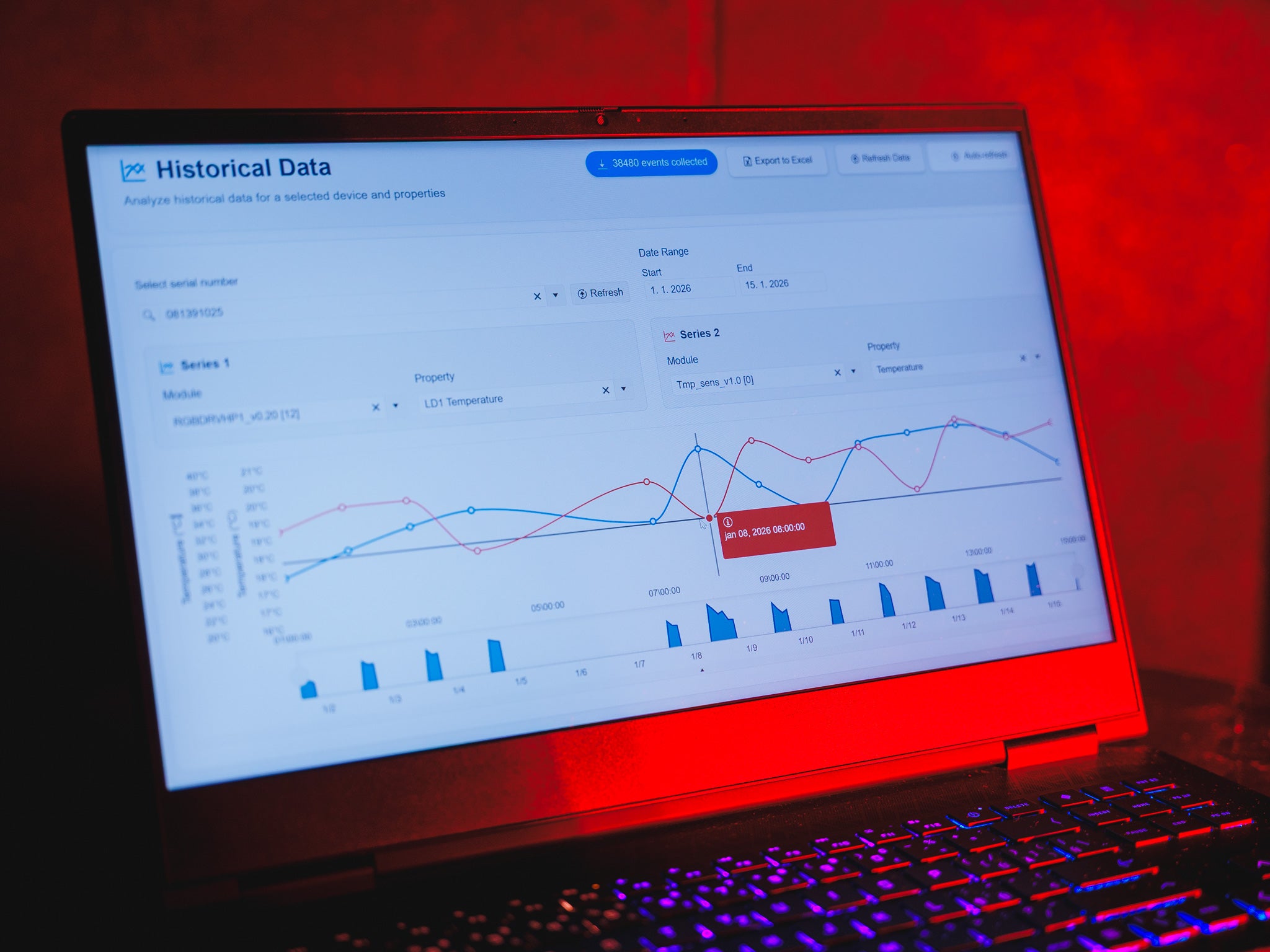

The best bit is the built-in multilevel telemetry, which offers instant online access to device data such as serial number, location, on/off status, temperatures of various subsystems, usage times, tilt, and much more. This gives you total control over your equipment.

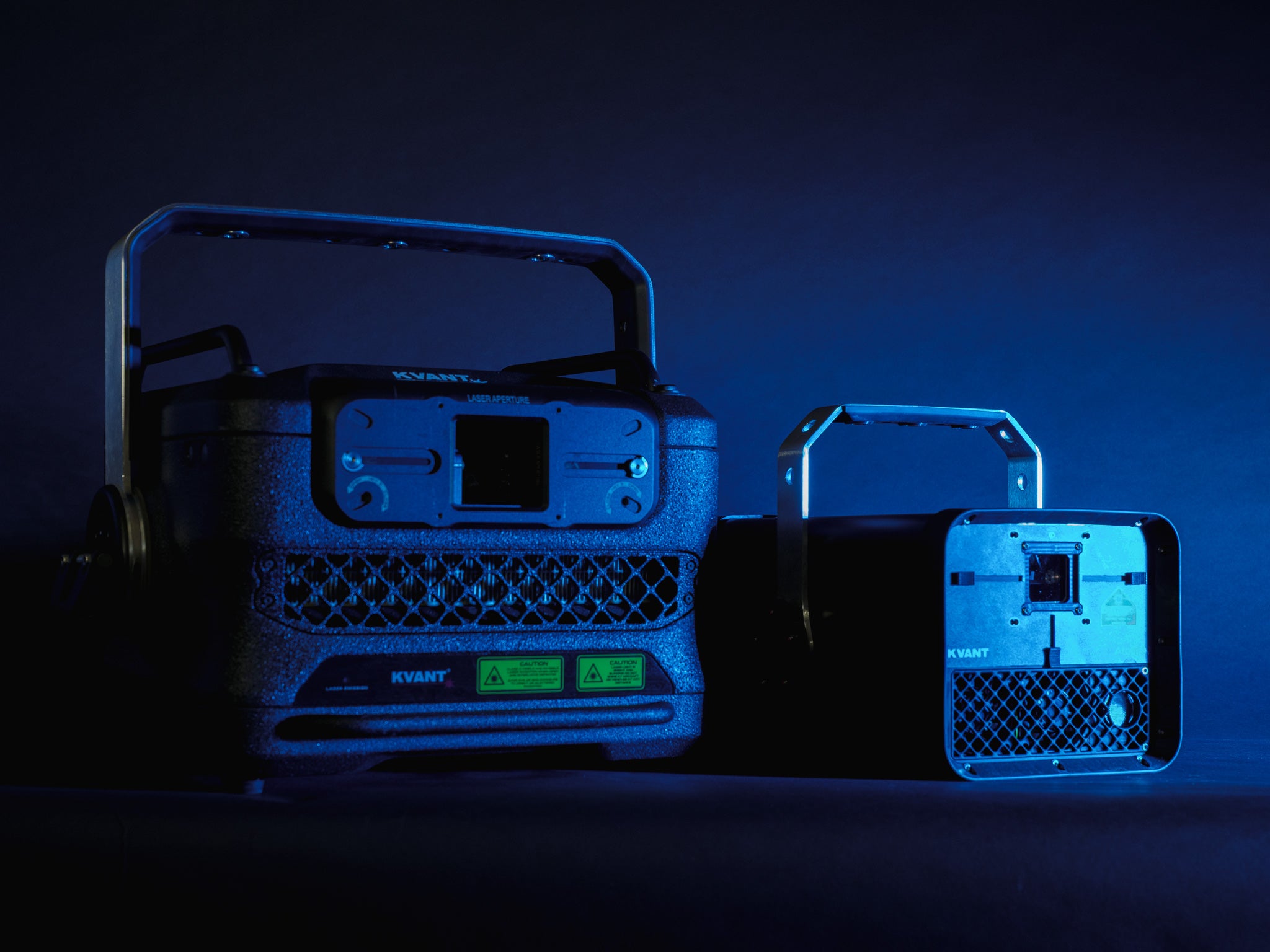

Atom XR Range Introduction

Atom XR 18 specification table

Source | IP-rating | Type:

Semiconductor laser diode | IP65 (note C) | Full-colour RGB laser projector

Suitability:

Outdoor laser displays [atmospheric, abstract, text, animations]

System control:

FB4-SK [Ethernet, ArtNet, DMX | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-2

Weight [kg]:

Size [WxHxD, mm]:

209 x 194 x 420 (with mounting bracket dismantled)
249 x 277 x 420 (with mounting bracket pointing upwards)

Guaranteed opt. output

17.5 watts

Installed modules R | G | B [W]:

4 | 5.5 | 9 *note A

Wavelengths [nm, ±5nm]:

638 | 525 | 455

Beam size [mm]:

7 x 7

Beam divergence [mrad]:

max. 1.1 mrad [full angle, **note]

Analogue modulation [kHz]

100

X-Y scanners:

Juno 5 | 30 kpps @ 8°, max. scanning angle 50° on both axes

Power requirements [V] | Input:

100-240/50-60Hz | Seetronic powerCON

Max. power consumption [VA]:

800

Operation temperature [°C]:

0-40 [Monsoon protection enclosure with AC unit on request]

Included in the set:

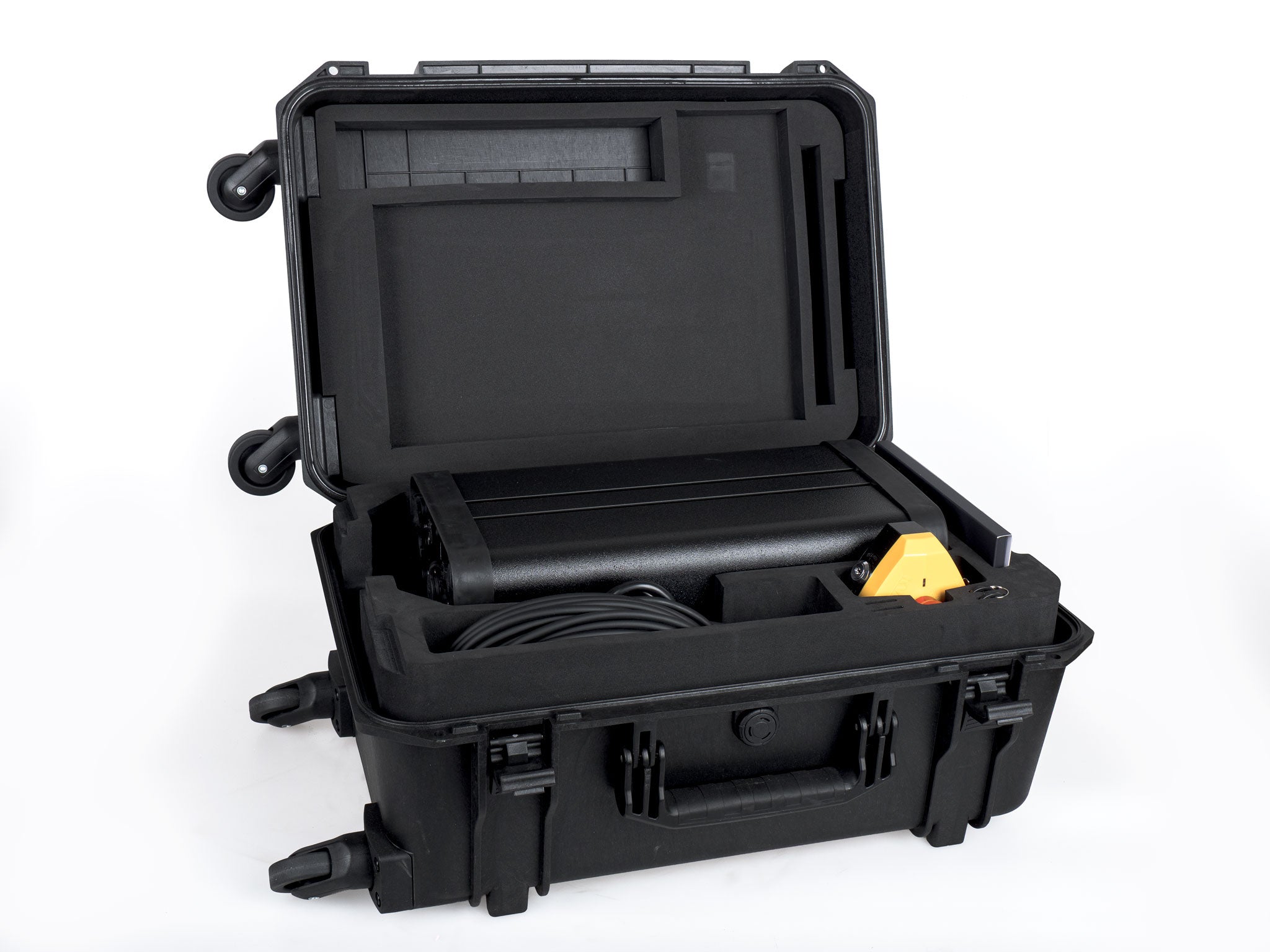

Heavy-duty flight case, IP65 1.5M AC power cable, IP65 10M Ethernet rj45 signal cable, E-STOP Remote with IP65 10M 3-pin XLR cable, Set of 4 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate.
Pangolin QuickShow laser control and creation software is available for FREE download.

HW features:

• Telemetry sensors

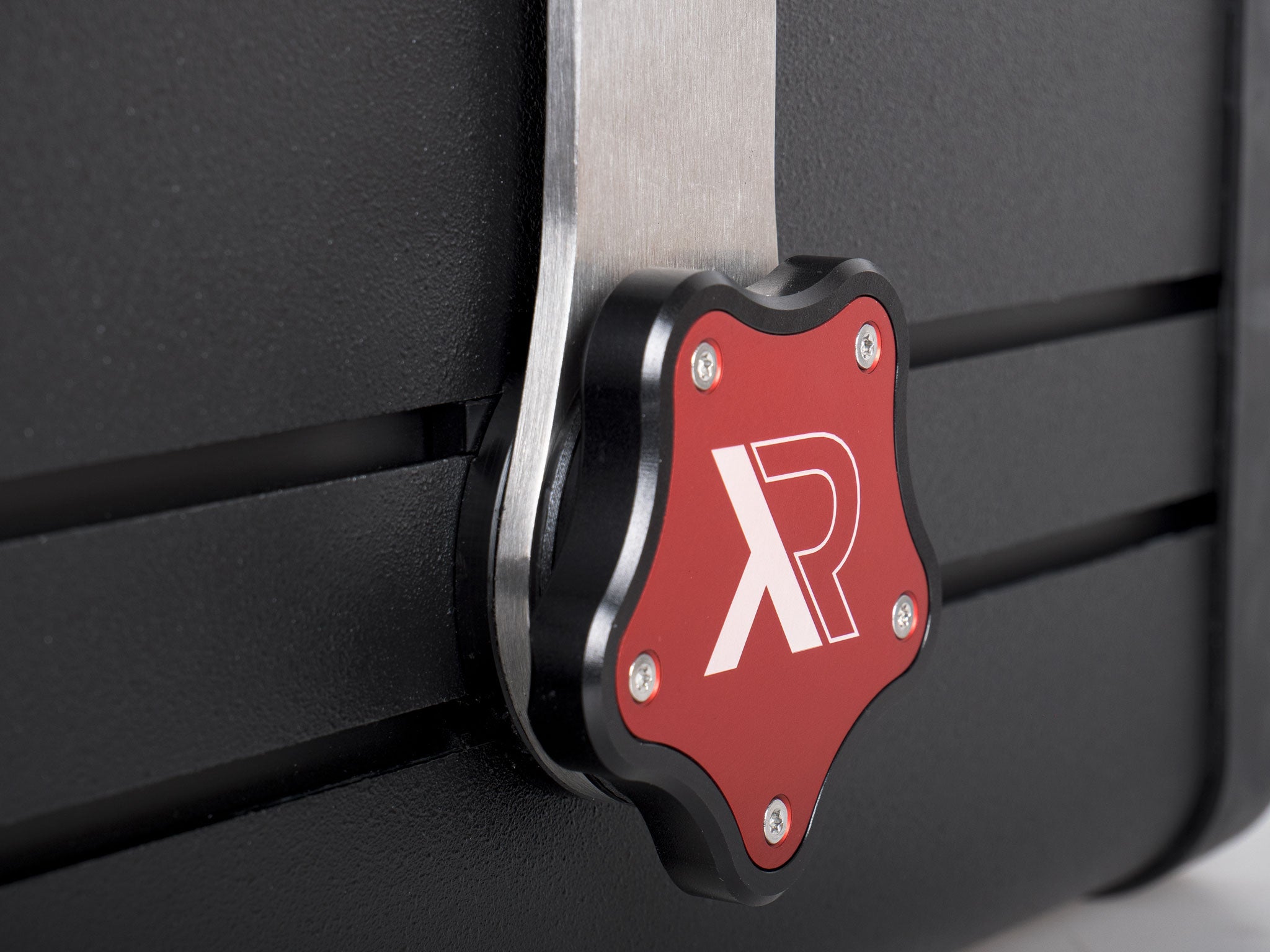

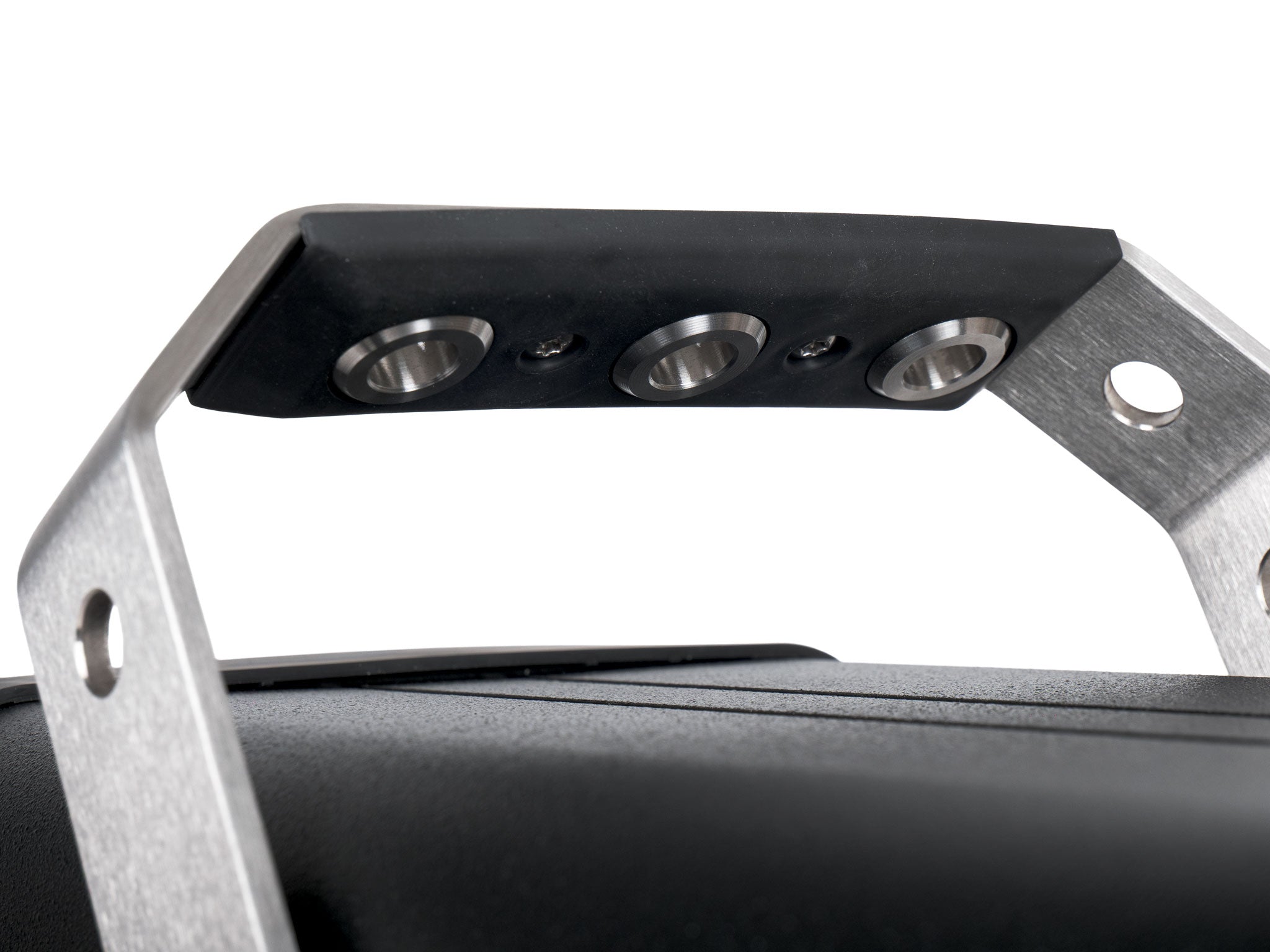

• 360-degree swivel-sliding mounting bracket

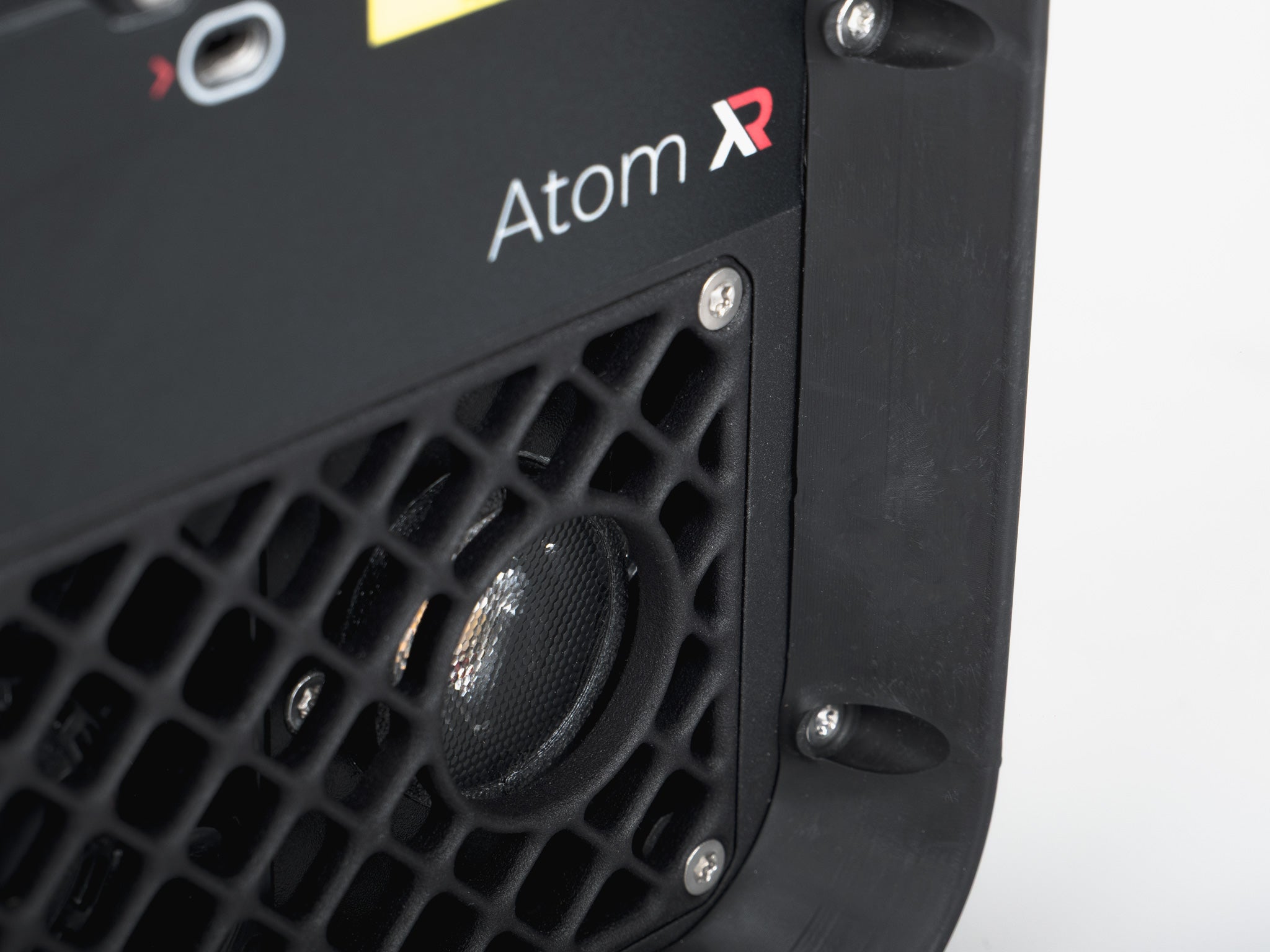

• DMX-controlled LED blinder / Device Stage Identifier (5-watt COB LED, 4000K, 920lm, focused to 10 degrees)

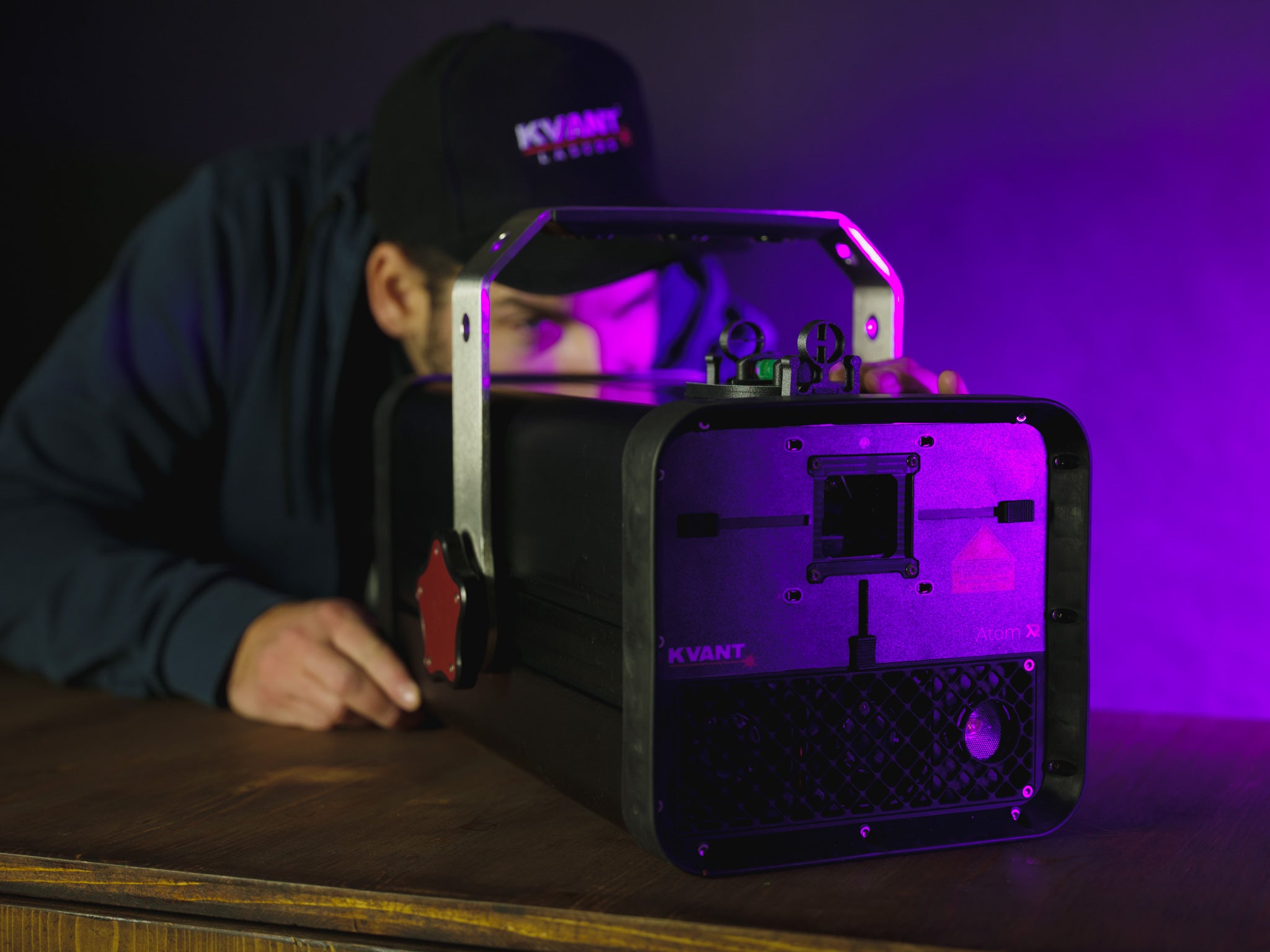

• An aiming piece with a spirit level
• Scanning system overload protection
• All the basic system settings and adjustments, such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc., are managed via the built-in FB4 control interface.

Laser safety features:

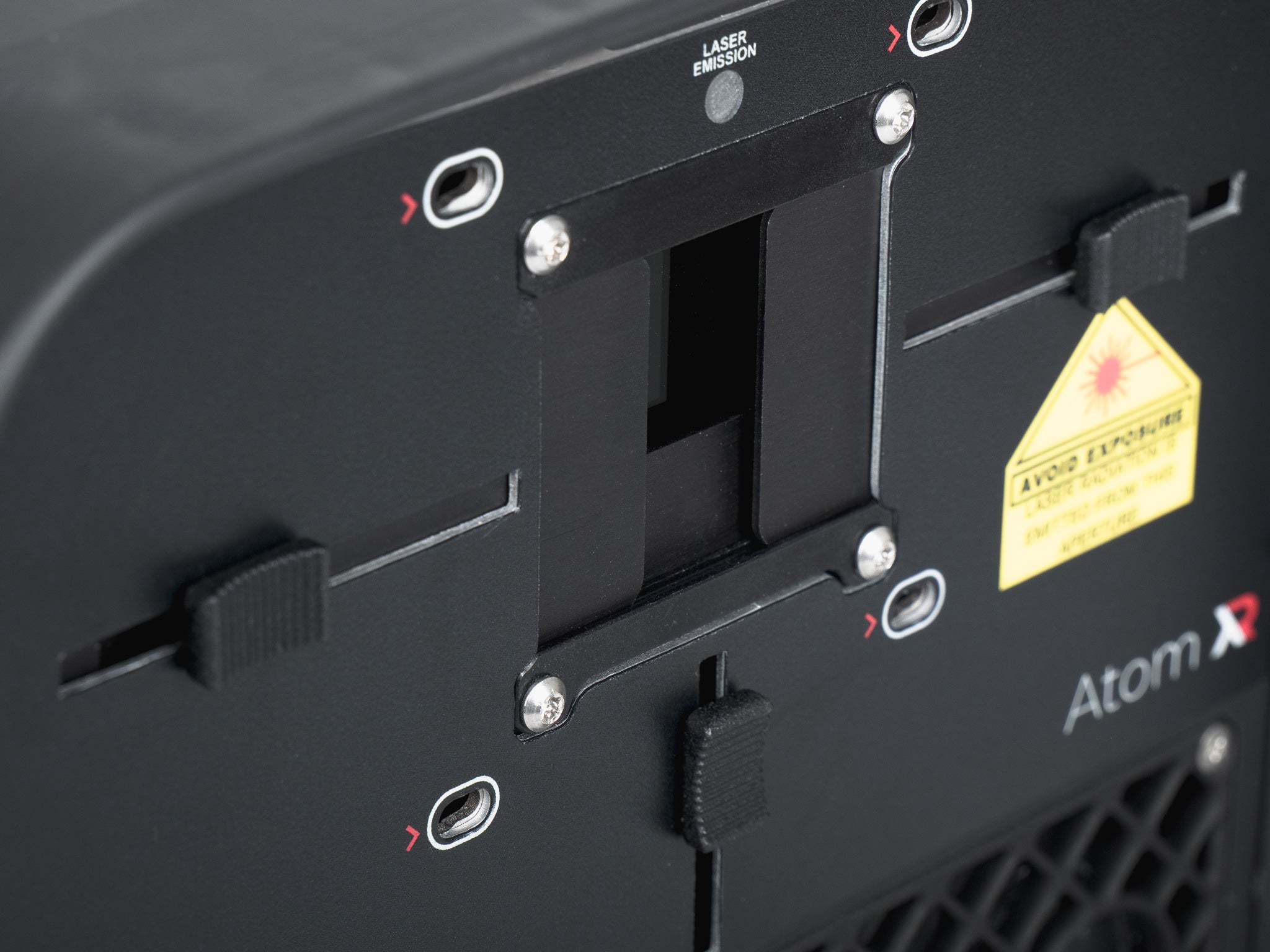

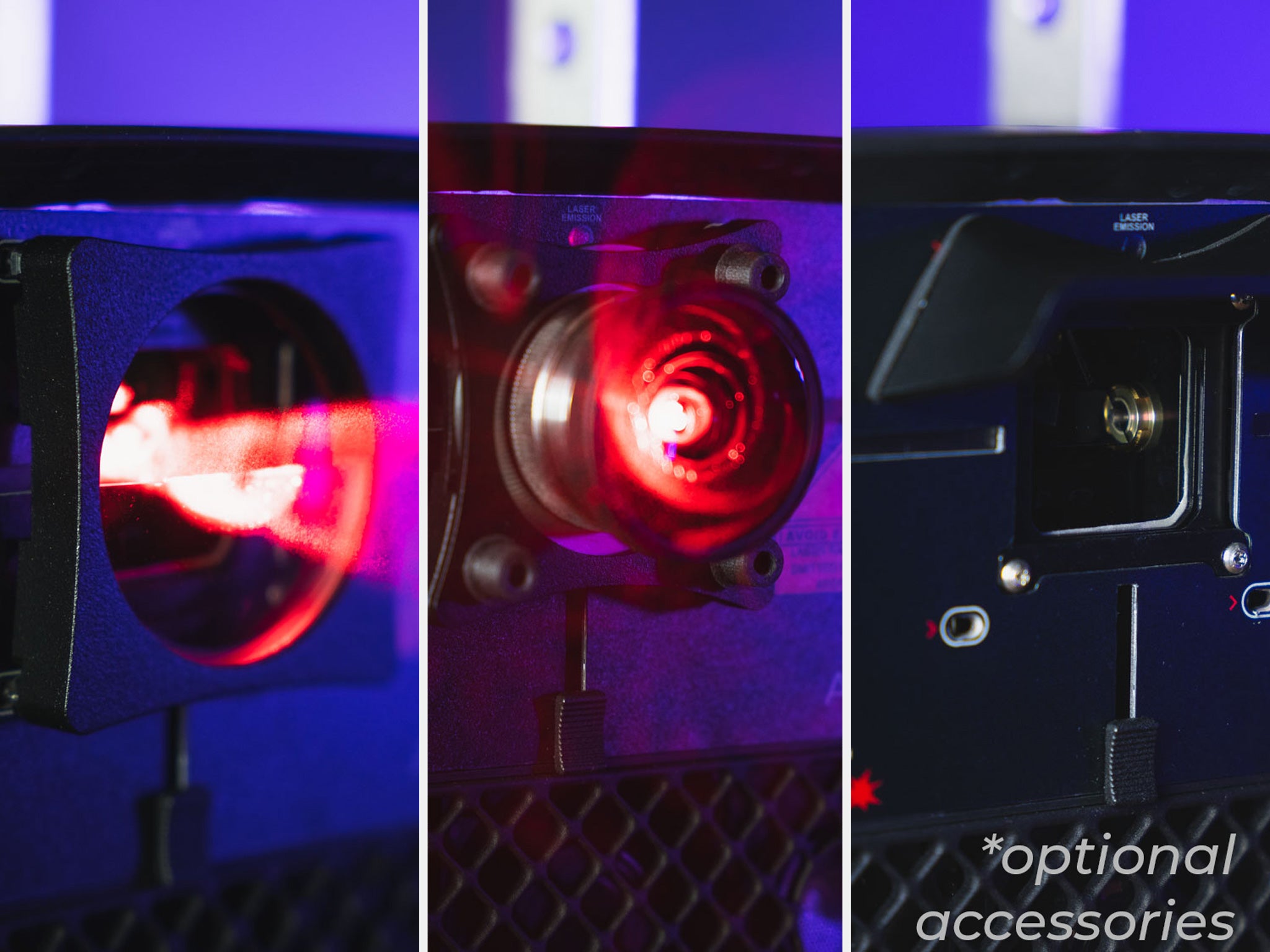

Keyed interlock, emission delay, interlock microswitch, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plates, Emergency STOP system with keyed remote and manual RESTART button.

note A

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.

note B

The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.

note C

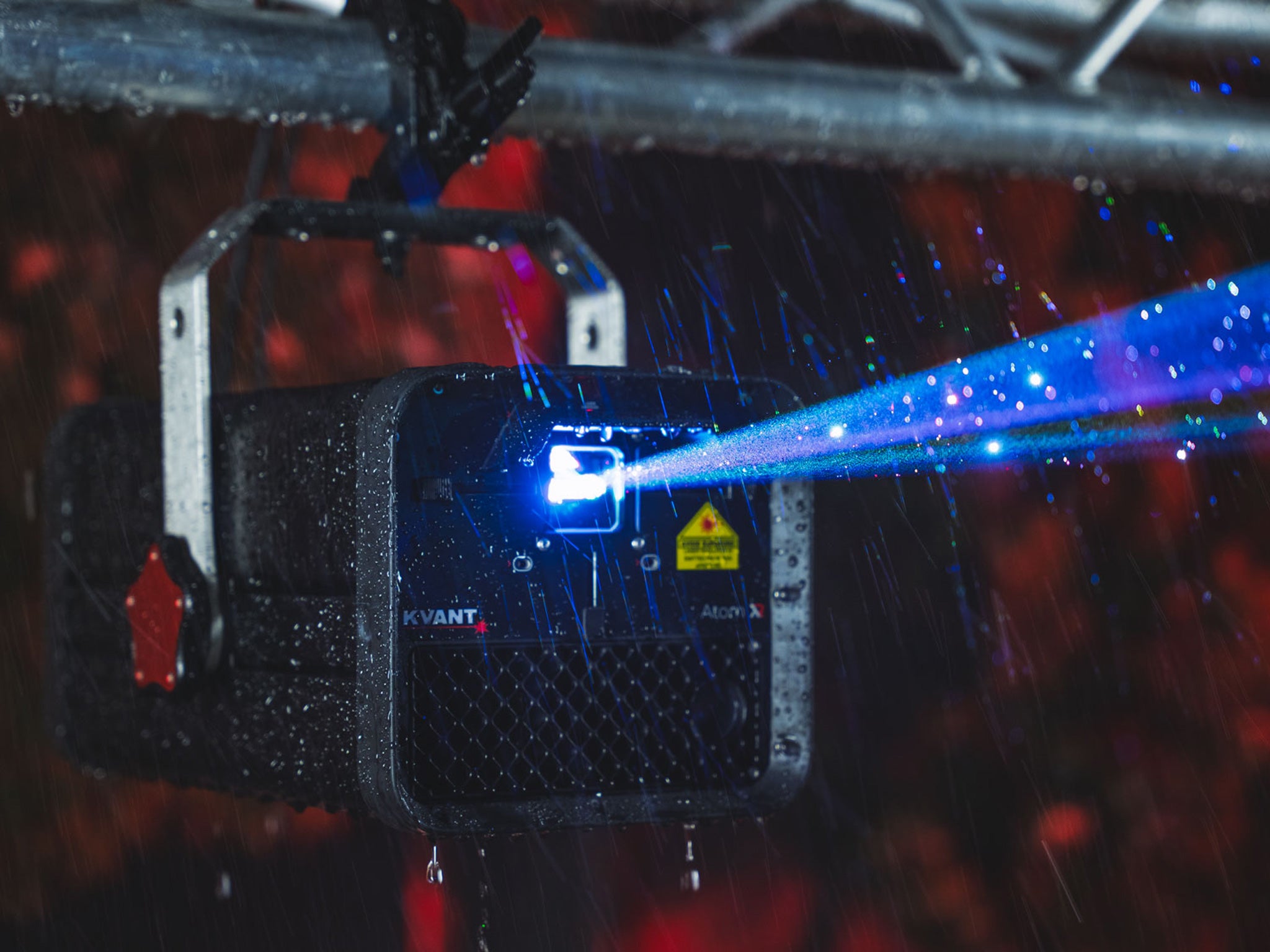

Although this projector is IP65 rated and fully waterproof, it is not suitable for mid- or long-term, or permanent, outdoor installations.
If it needs to be exposed to the outdoor environment for prolonged periods, you must enclose it in an outdoor protection box, such as the Monsoon or Typhoon.

Optional factory upgrades

PASS - Professional Audience Safety System integration

+1,300€ ex. TAX

PASS is a safety device that helps monitor laser power, scanner signals, and other projector related parameters to ensure your laser show is safe. PASS is primarily used to ensure the safety of audience scanning style laser shows, where the laser beam comes in direct contact with people watching the show.
