Laser Ray 30 IP65 [pack of two]

Name: Laser Ray 30 IP65 [pack of two]
Brand: Kvant Lasers, s.r.o.
Price: 13170.00 EUR
Availability: InStock

13,170.00€

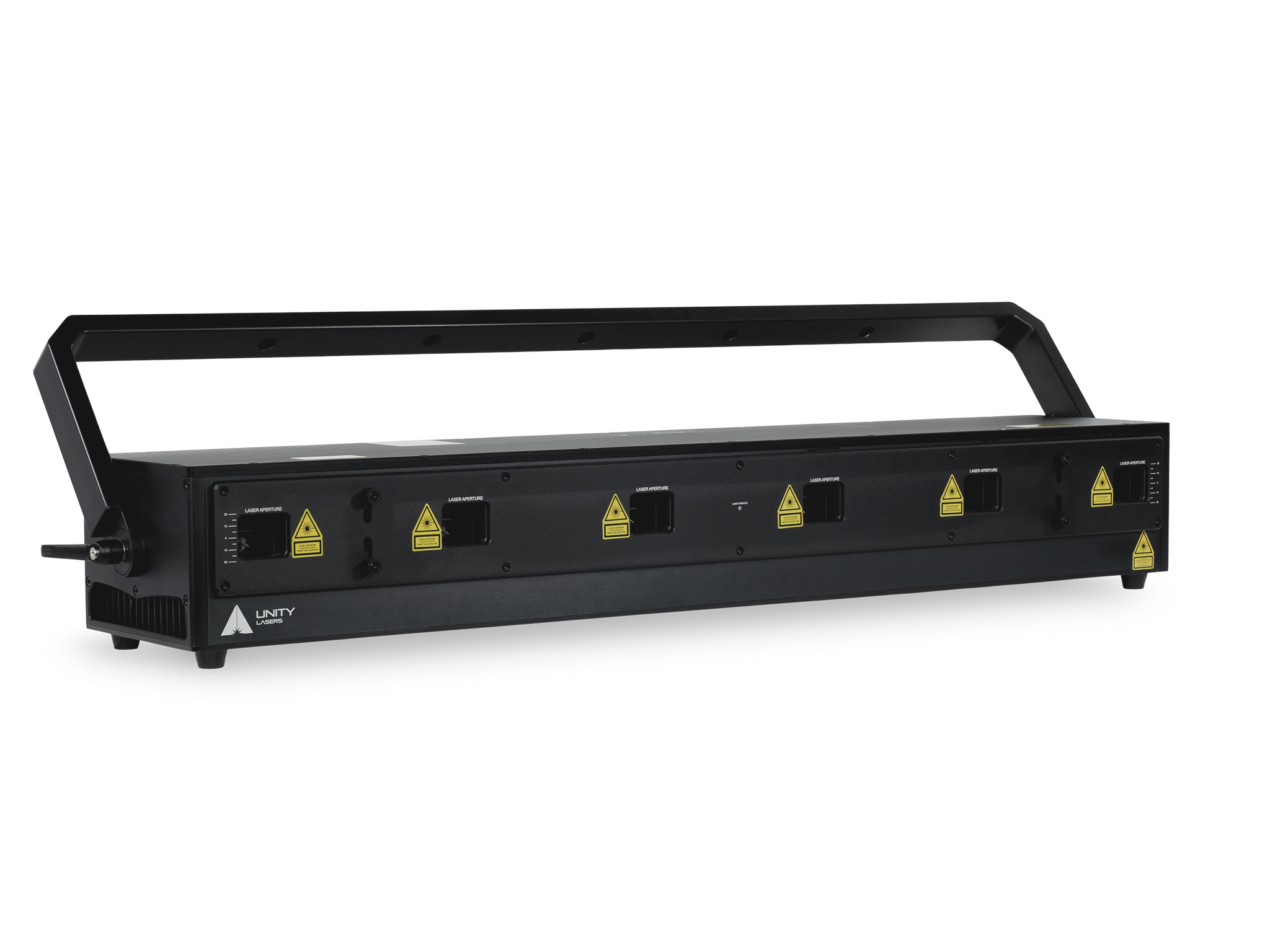

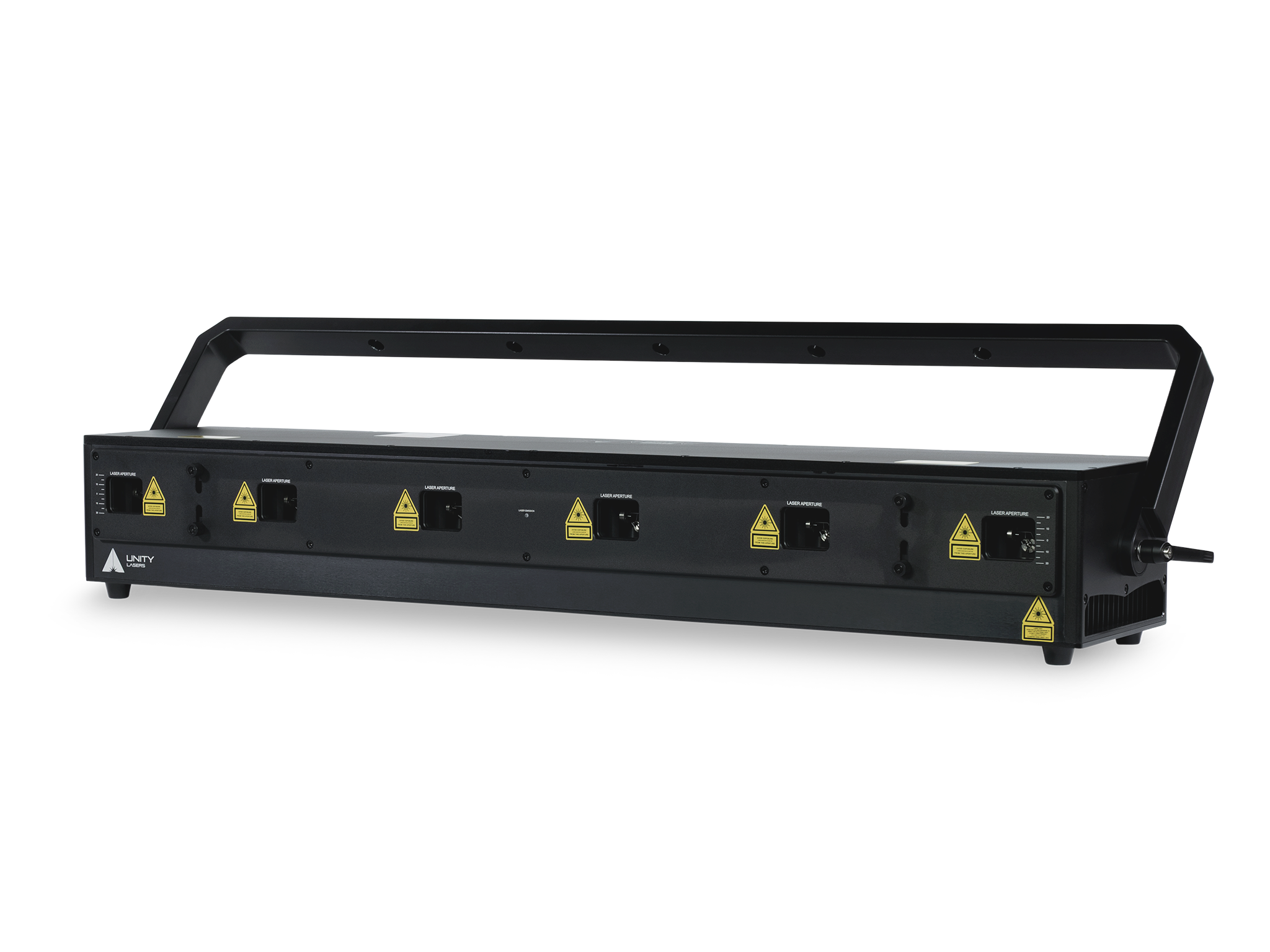

For designers who want bold multi-point projection, LASER RAY 30 delivers a unique 6-head laser array built for impact. With IP65 protection, it thrives in stadiums, arenas, mega clubs, and outdoor shows. Multiple scanning heads open wide creative canvases that single-projector setups can’t touch.

LASER RAY 30 features integrated DMX hardware with a 211-channel profile (35 per head) and advanced Art-Net control. Each head is equipped with high-performance XY scanning, full analogue modulation, and precision optics. Daisy-chainable and robust, Laser Ray combines flexibility with the proven reliability of professional-grade lasers.

Fill arenas with wide-coverage atmospherics, multi-point beam effects, and immersive mapping designs. Perfect for large-scale productions needing layered projection effects.

Equipped with top and bottom masking plates for refined beam control, LASER RAY 30 balances creativity with compliance.

Multiply your beams, multiply your impact with Laser Ray.

The Laser Ray 30 is sold in a pack of 2; it comes in a single rolling flight case that houses both units and their accessories.

Quantity:

Laser Ray 30 IP65 [pack of two]

13,170.00€

LASER RAY IP65 SERIES VIDEO

Laser Ray 30 IP65 [pack of two] specification table

Product Name:

Unity LaserRay 30 RGB

Type Of Laser:

Full-colour, Semiconductor diode laser system with six independent XY scanning outputs

Guaranteed Optical Output:

>30W (total)
>5W (per single output)

Suitable For:

Lighting professionals: Stadiums, arenas, mega clubs, theaters, house of worship. Small and medium sized outdoor shows.

Scanning System:

30,000 points per second @ 8°

Scan Angle:

45°

Safety:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight:

25kg

Package Includes:

2x LaserRay 13 RGB (XY) laser system with IP65 rated housing, heavy duty flight case, 2x Estop box, 2x Estop cable (10M/30ft), 2x DMX cable (10M/30ft), 2x power cable (1.5M/4.5ft), 2x interlock, 4x keys, manual, quickstart guide, variance card (* 2x service dongle if outside US)

R | G | B [mW]:

1,400 | 1,400 | 2,200 (per each output)

Beam Size [mm]:

3 x 3

Beam Divergence:

<1.2mrad [Full Angle]

Modulation:

Analog 100kHz

Power Requirements:

100-240V/50Hz

Consumption:

Max. 1000W

Operation Temperature:

(-10°C) - 40°C

Ingress Rating:

IP65

System Features:

Adjustments are done via DMX from your lighting console for safety, zones, geometric correction, and colors.

Laser Safety Features:

Keyed interlock, Emission delay, Internal / Case interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.

Notice:

*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:

Depth: 226 | Width: 1028 | Height: 148
