Laser Beam Analyser

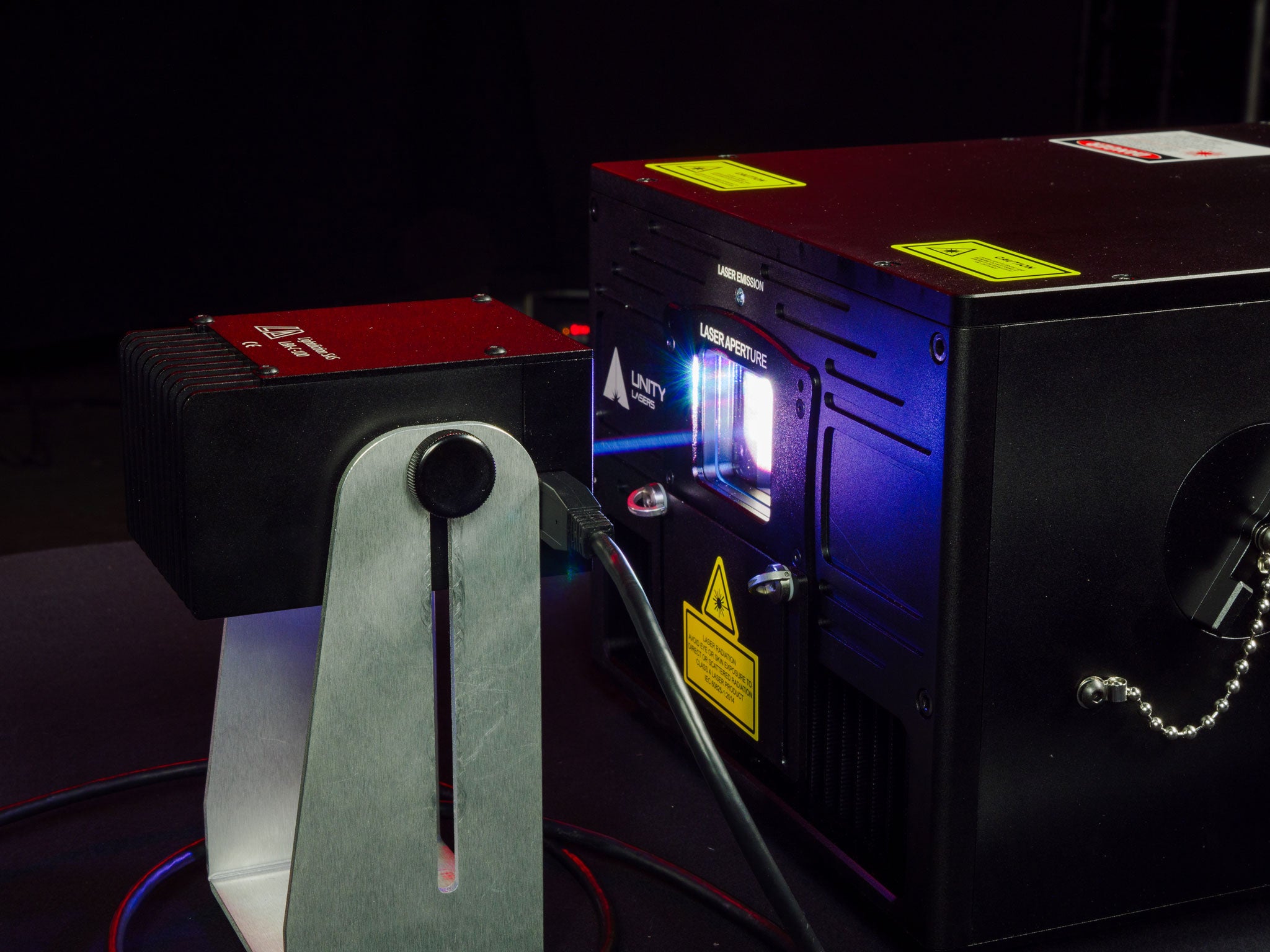

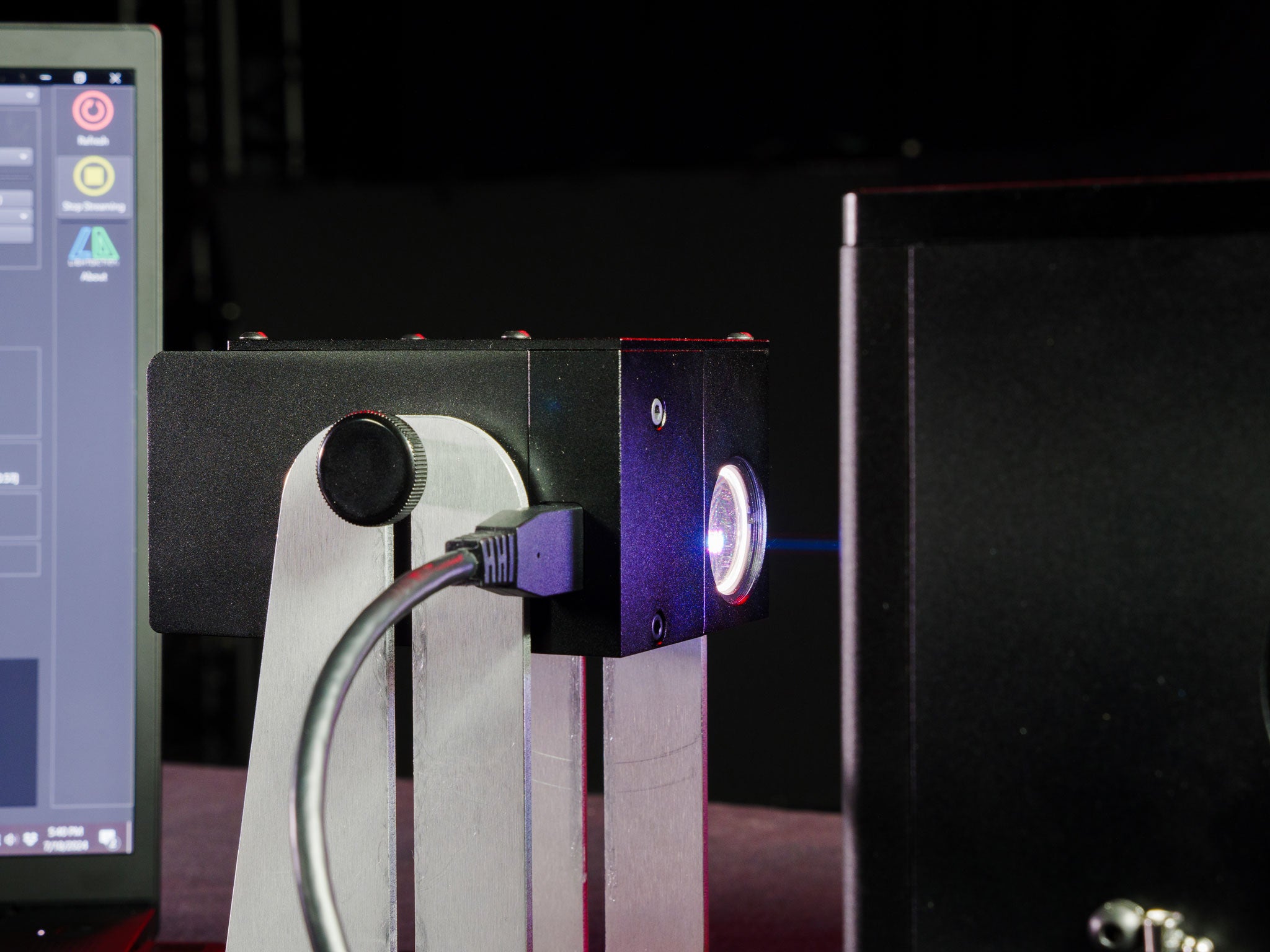

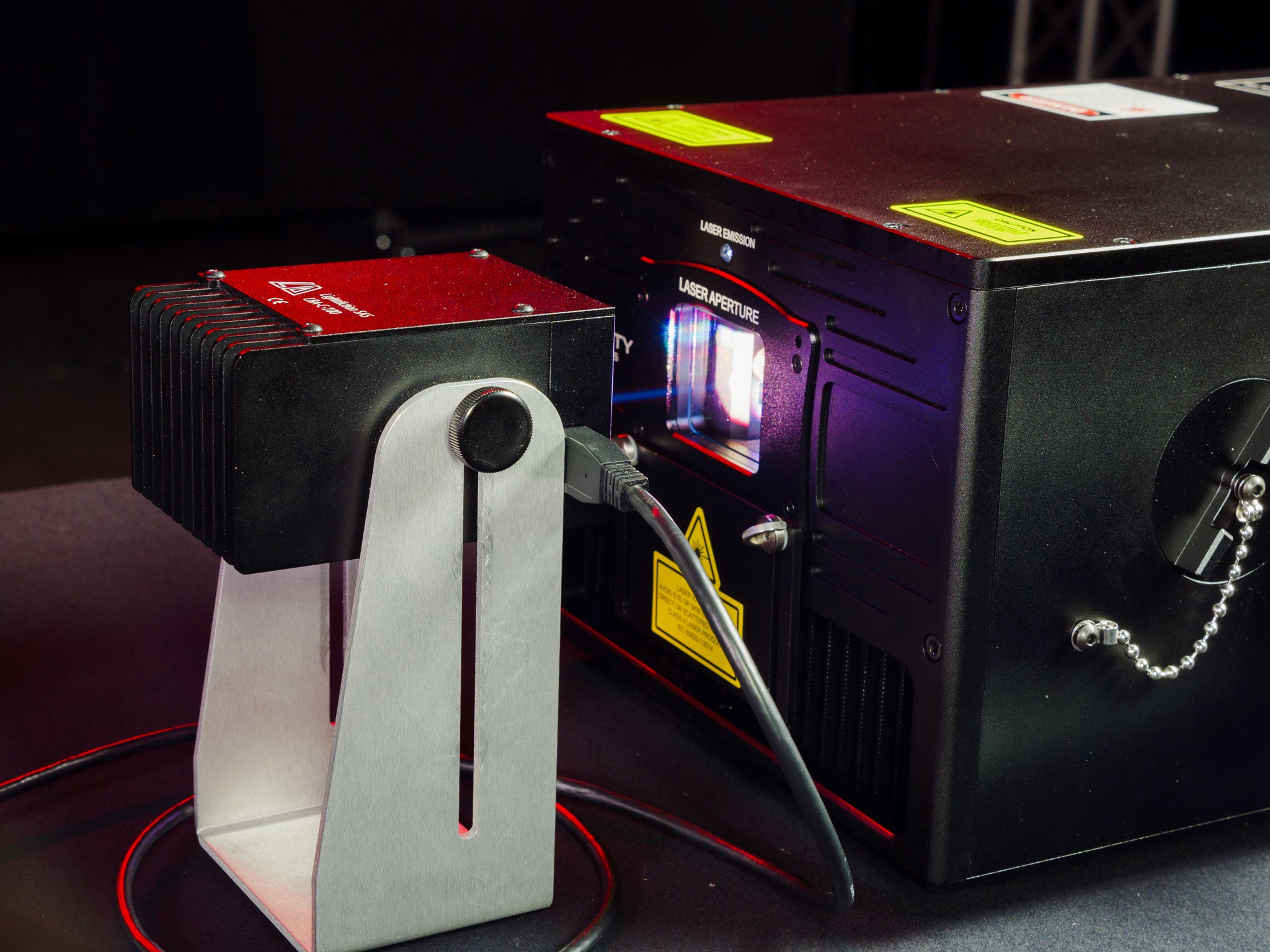

The Beam Analyser is an award-winning device that allows you to measure the beam specifications of laser light show projectors up to 100W with incredible accuracy. The Beam Analyser is essentially a “lie detector” that helps you determine if your laser’s beam specifications are correct.

This device analyses a laser beam to enable the measurement of the main specifications that qualify the quality of the beam. The angular measurement method used by the beam analyser gives the advantage of not depending on the input beam diameter or on the distance between the measuring device and the laser source. The resolution on the measure is 0.01mrad. You can also add any other wavelength for power and alignment (which requires calibration beforehand).

The Beam Analyser is well-suited for the measurement of the following applications:

• Divergence of the laser beam for each colour and for all colours simultaneously.
• Laser power measurement
• Lens collimating of laser sources: minimal divergence
• Alignment of RGB laser beams

LASER BEAM ANALYSER MANUAL AND SPECIFICATIONS

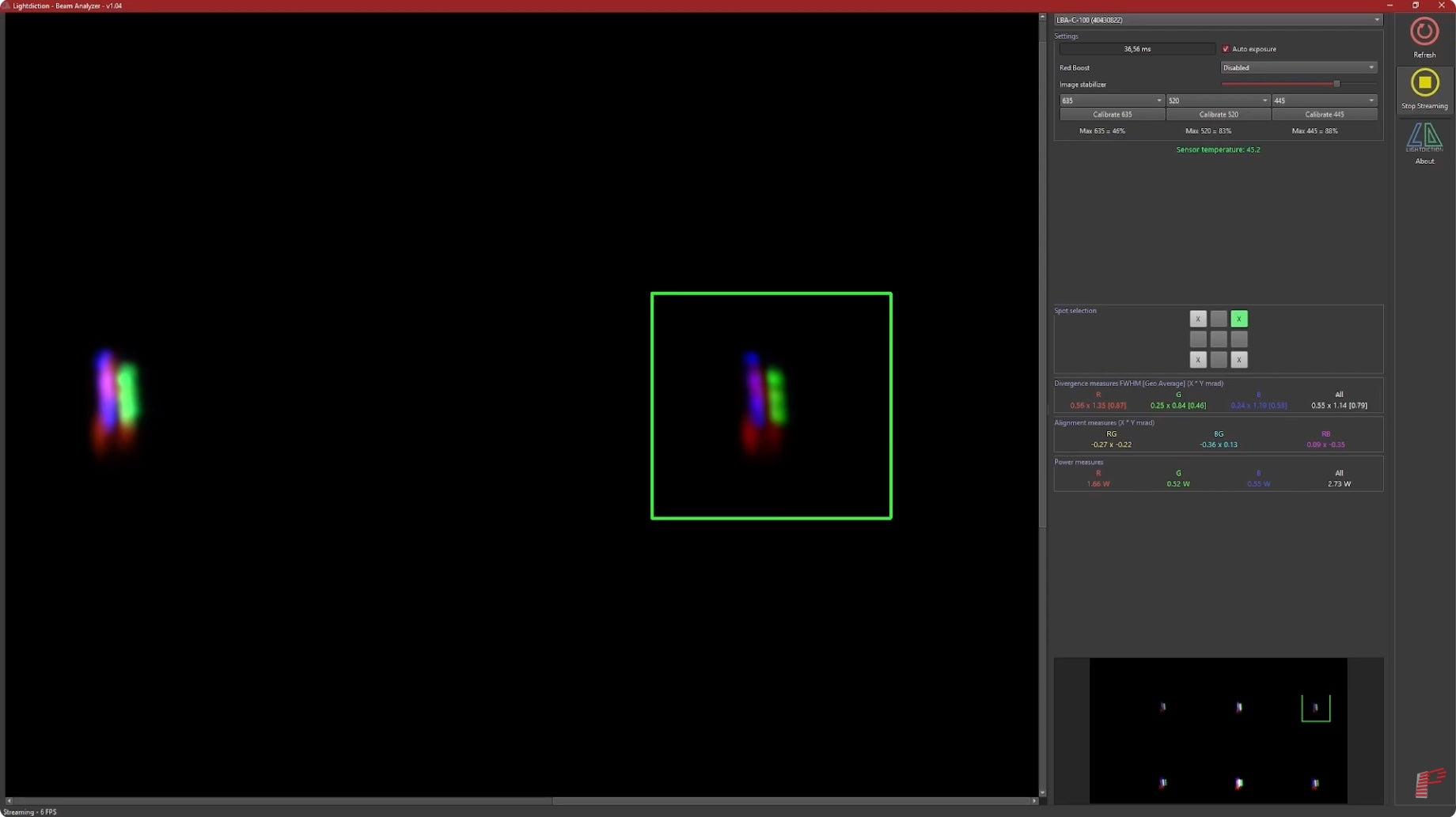

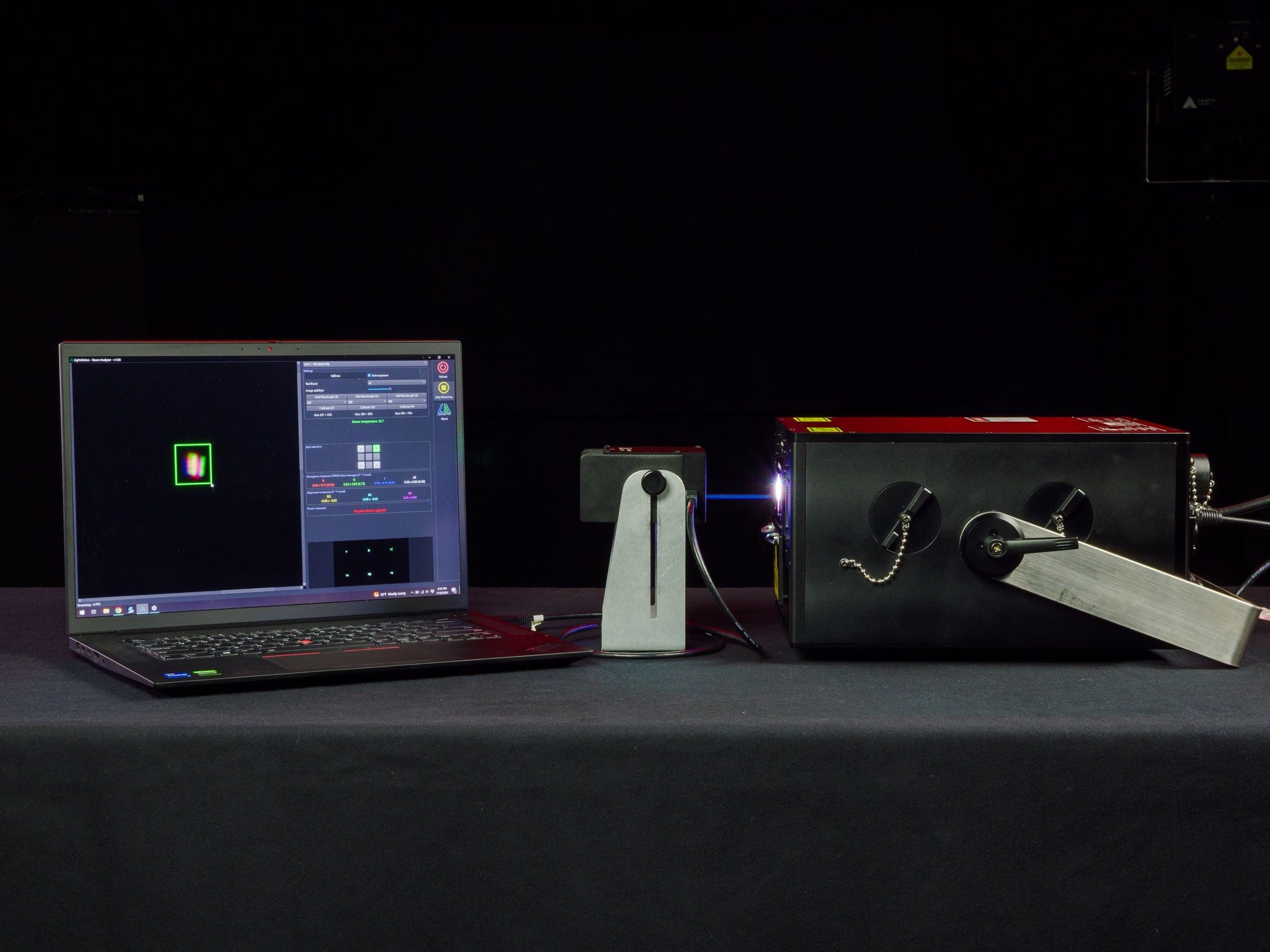

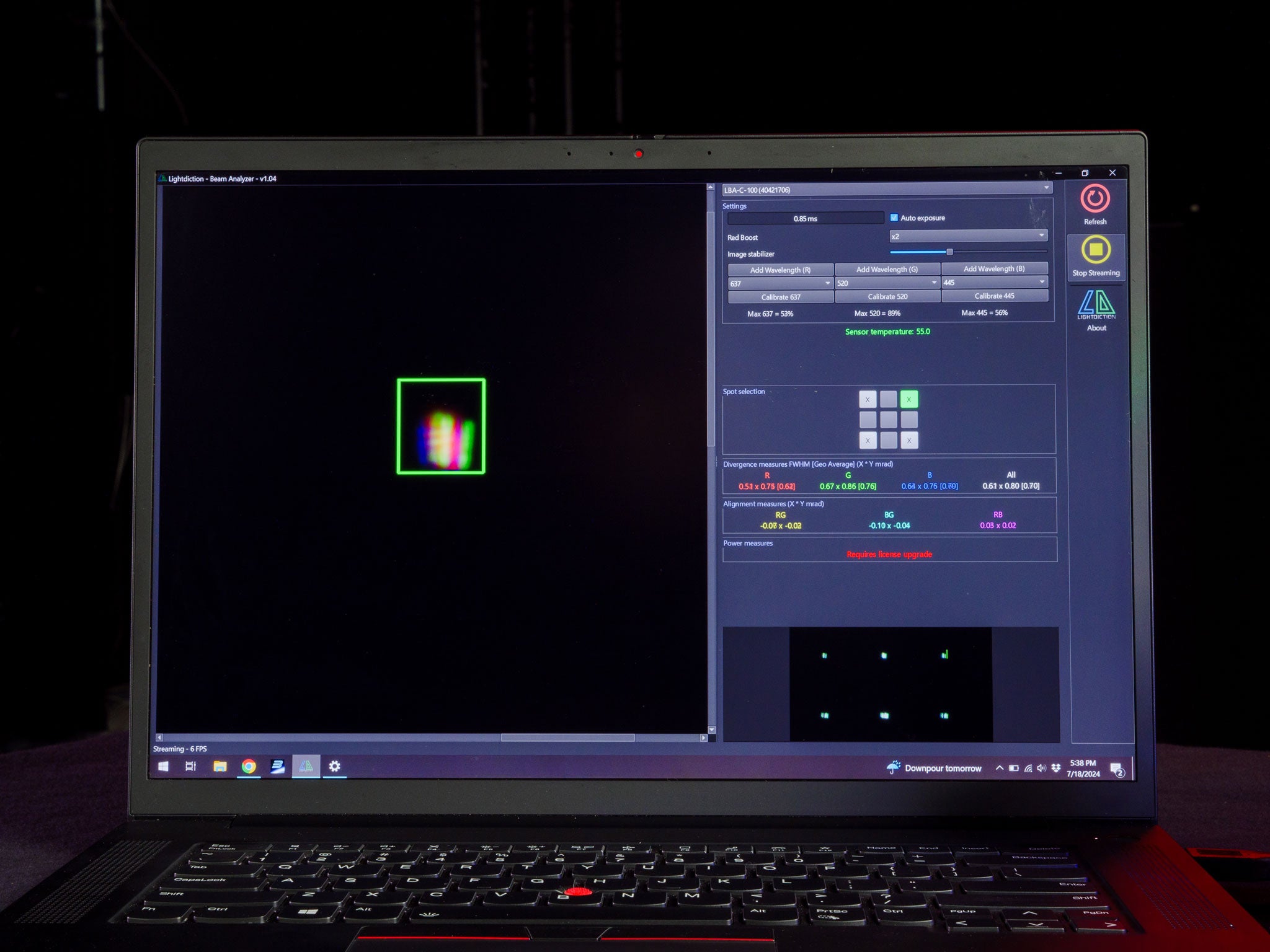

To operate the Beam Analyser, you will need to use the software that is included for free. The software enables you to perform all the measurements and see the data from the Beam Analyser.

FREE SOFTWARE DOWNLOAD
