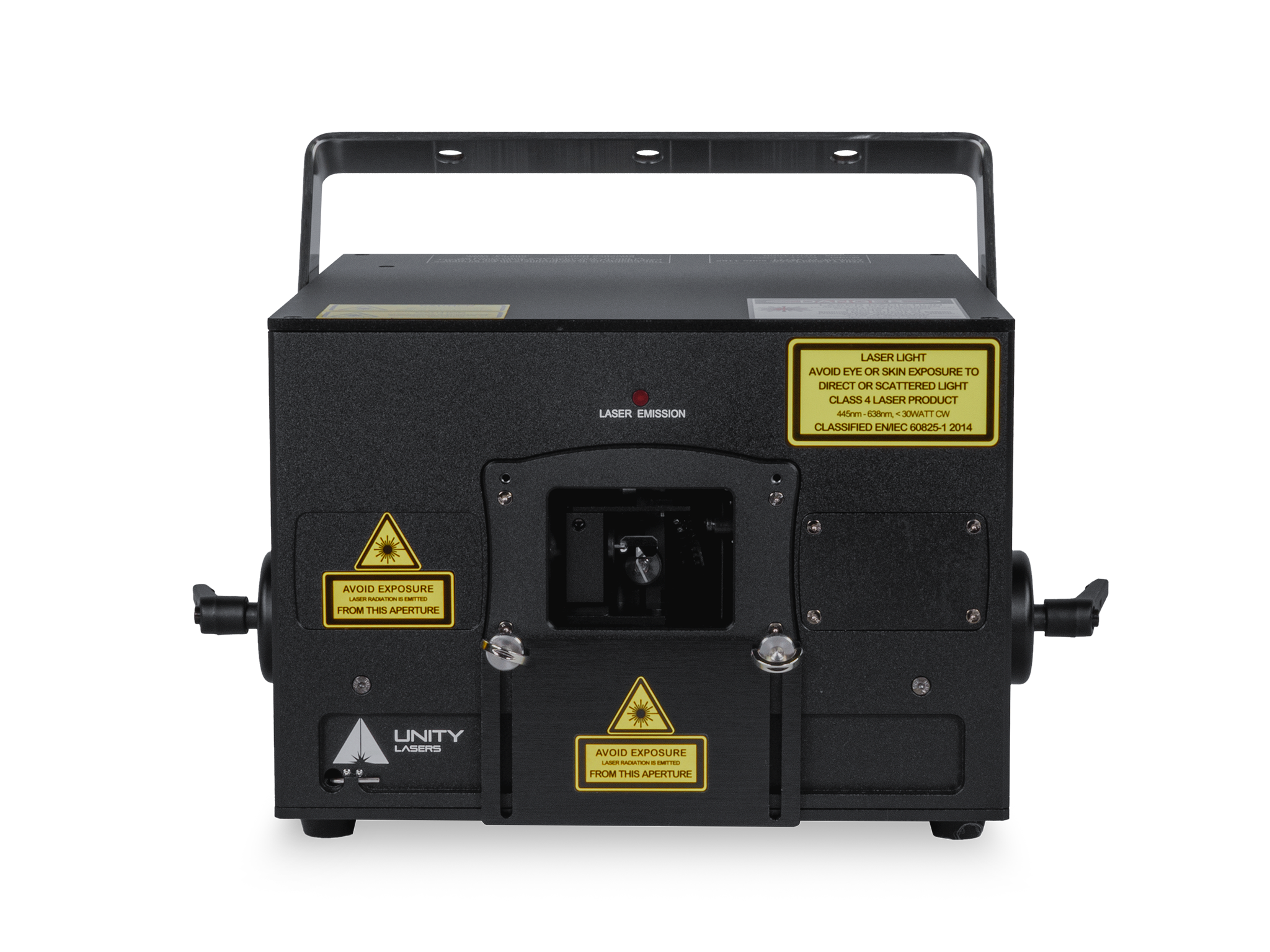

Laser show projector Unity Elite 3 PRO FB4_1

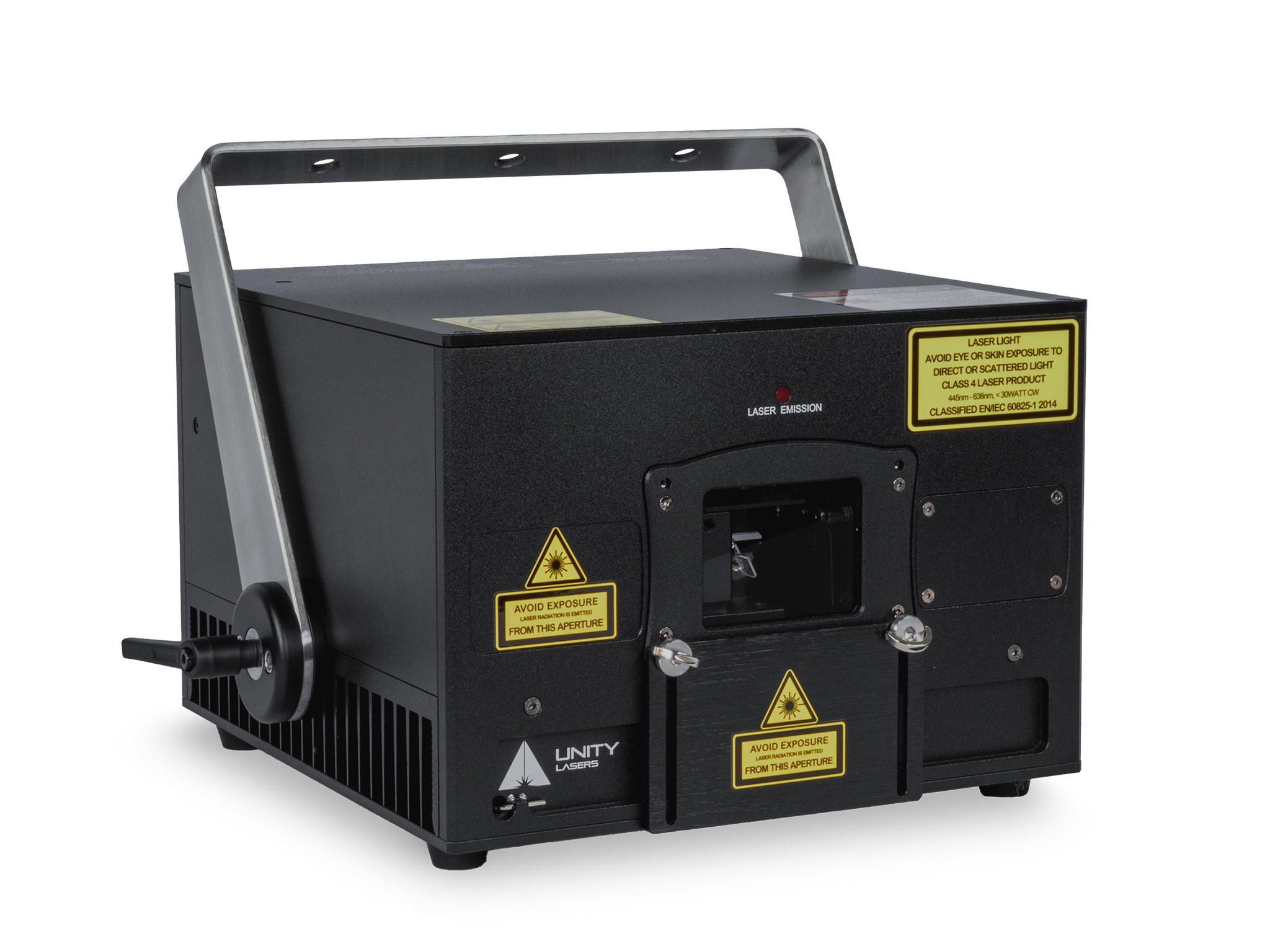

Laser show projector Unity Elite 3 PRO FB4_2

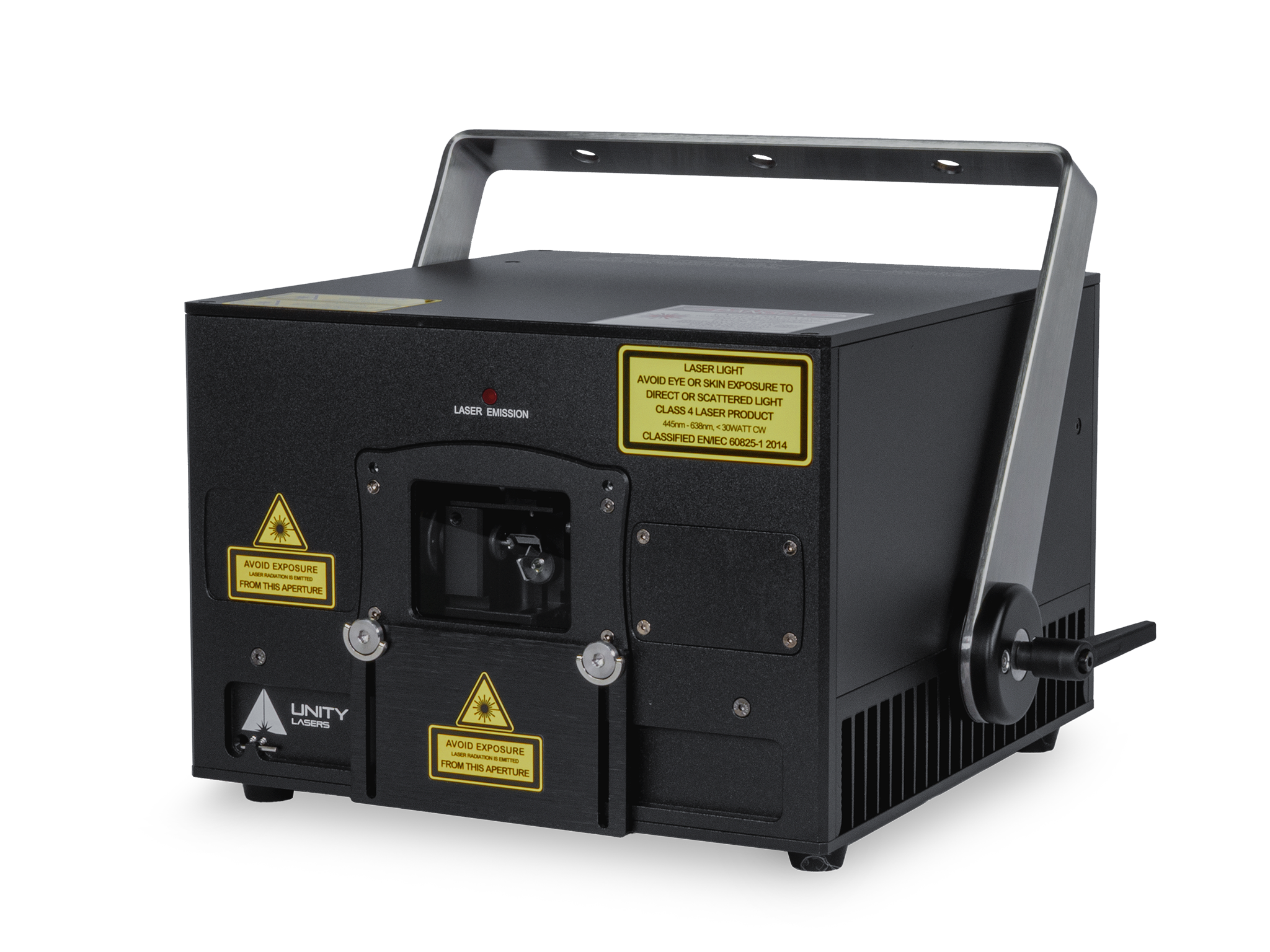

Laser show projector Unity Elite 3 PRO FB4_3

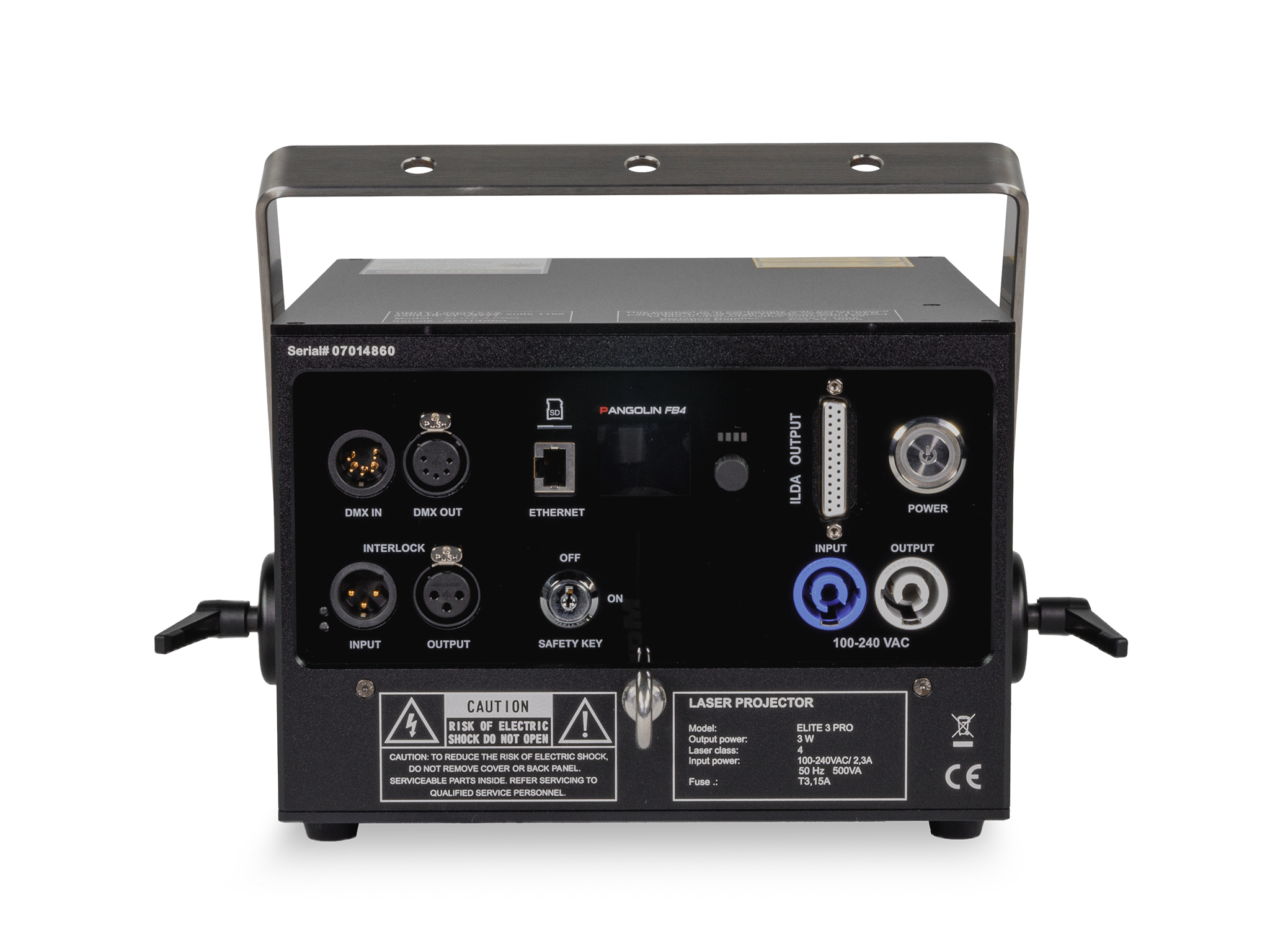

Laser show projector Unity Elite 3 PRO FB4_4

ELITE 3 PRO FB4

Name: ELITE 3 PRO FB4
Brand: Kvant Lasers, s.r.o.
Price: 2131.00 EUR
Availability: InStock

2,131.00€ ex. TAX

Built for lighting professionals who need precision without the premium price tag, the ELITE 3 PRO FB4 delivers rich colour, sharp graphics, and reliable scanning performance. Compared to the RAW series, it uses upgraded diode sources, optics, and XY scanners — giving you brighter, bolder projection and better image resolution, all in a sleek pro-grade housing.

This laser light show projector is ideal for clubs, theatres, corporate events, churches, and small arenas. It includes full DMX, ArtNET, and ILDA, and Ethernet control (from a PC).

Quantity:

ELITE 3 PRO FB4

2,131.00€ ex. TAX

RAW FB4 SERIES VIDEO

ELITE 3 PRO FB4 specification table

Product Name:

Unity ELITE 3 PRO FB4

Type Of Laser:

Full-colour, Semiconductor diode laser system

Guaranteed Optical Output:

>3.1W

Suitable For:

Lighting professionals: medium indoor venues, clubs, theater, house of worship, gymnasium (up to 3,000 people). Beam show, text, graphic, and mapping capable

Scanning System:

30,000 points per second @ 8°

Scan Angle:

50°

Safety:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight:

8kg

Package Includes:

Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card

R | G | B [mW]:

610 | 800 | 1,760

Beam Size [mm]:

2 x 4

Beam Divergence:

<1mrad [Full Angle]

Modulation:

Analog 100kHz

Power Requirements:

100-240V/50Hz

Consumption:

Max. 150W

Operation Temperature:

10-40 °C

Ingress Rating:

IP4X

System Features:

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out

Laser Safety Features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice:

*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:

Depth: 238 | Width: 246 | Height: 175
