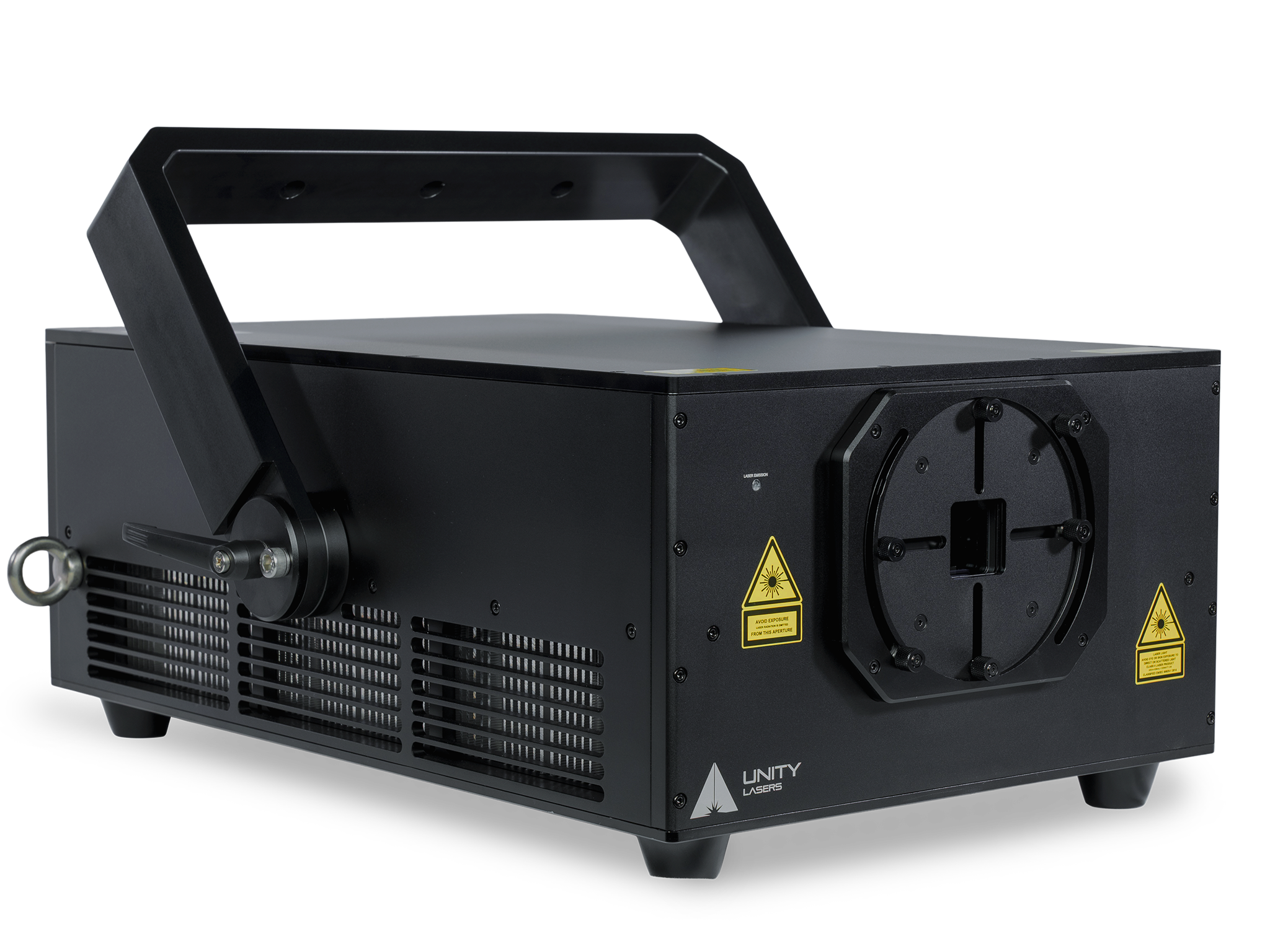

High power-output outdoor laser display projector Unity Elite 150 PRO FB4_2

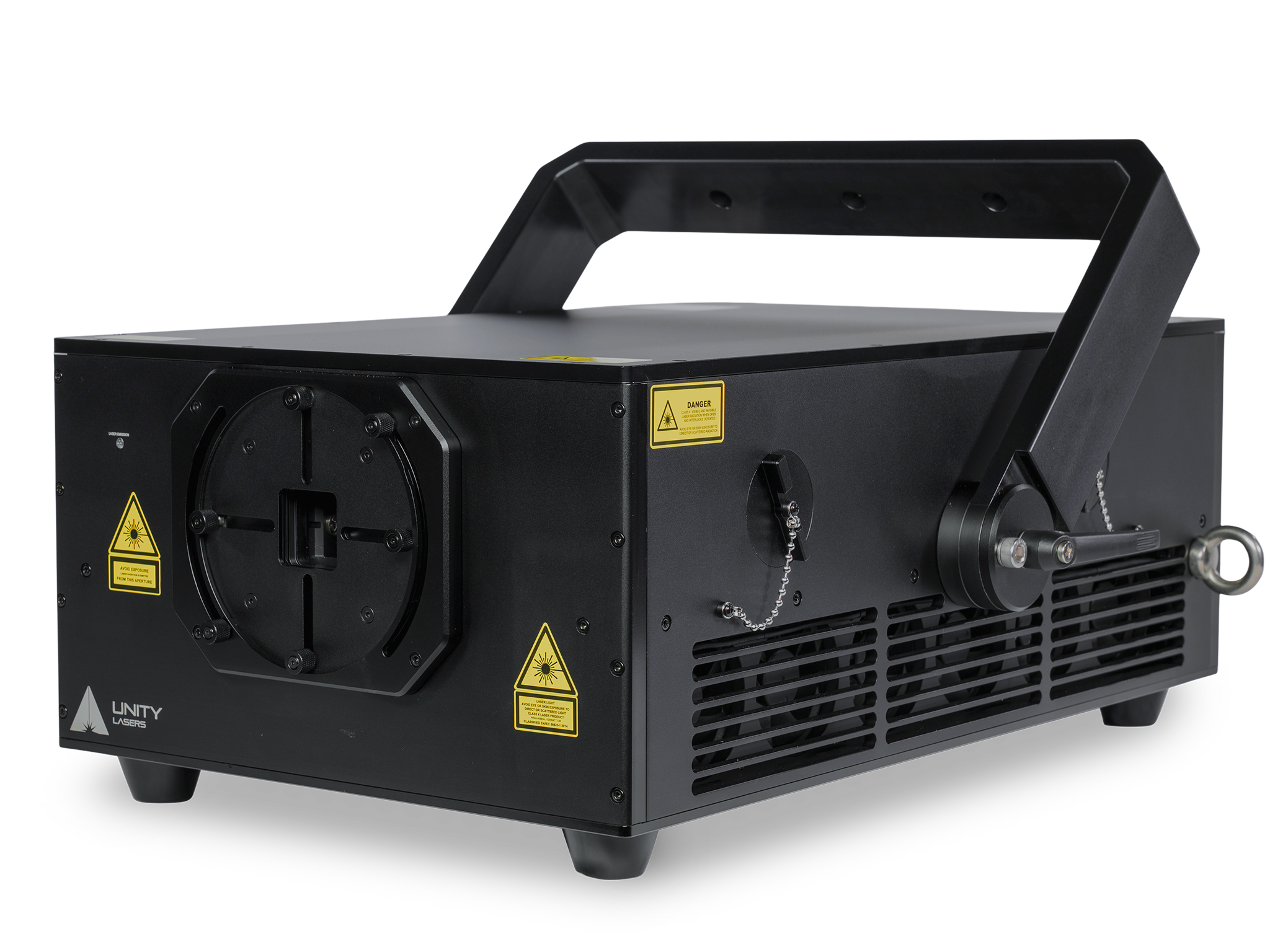

High power-output outdoor laser display projector Unity Elite 150 PRO FB4_3

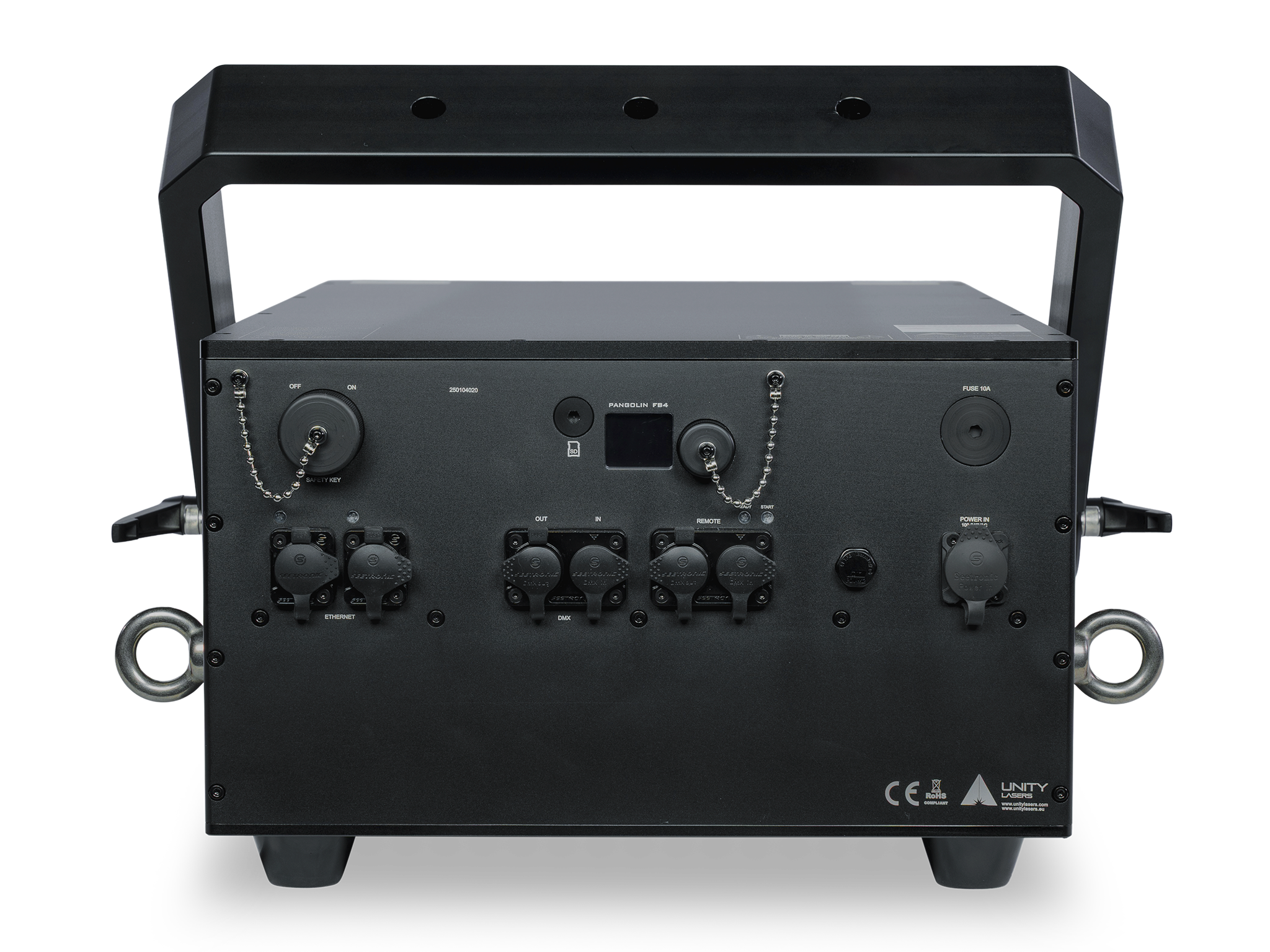

High power-output outdoor laser display projector Unity Elite 150 PRO FB4_4

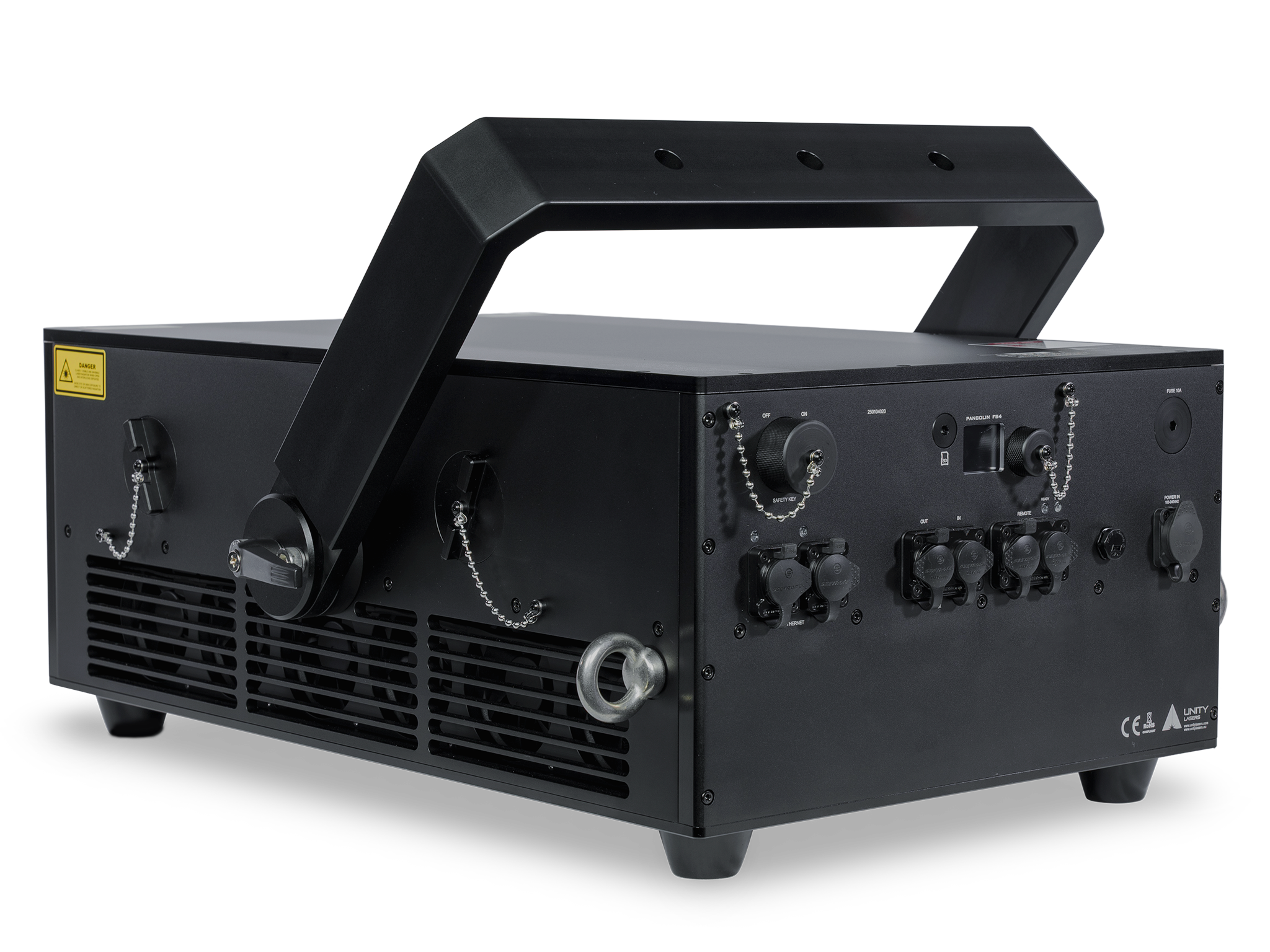

High power-output outdoor laser display projector Unity Elite 150 PRO FB4_5

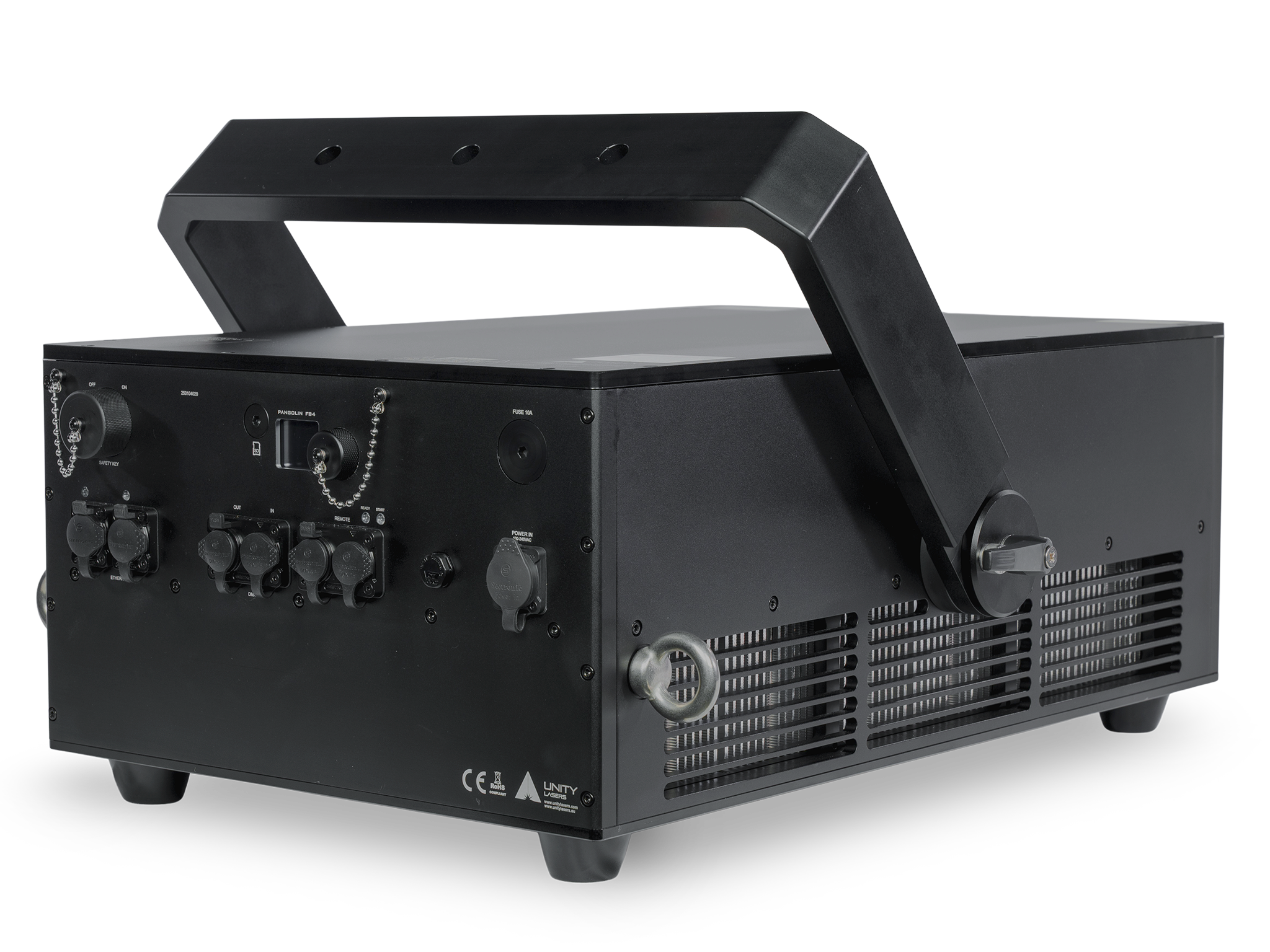

High power-output outdoor laser display projector Unity Elite 150 PRO FB4_6

ELITE 150 PRO FB4 IP65

Name: ELITE 150 PRO FB4 IP65
Brand: Kvant Lasers, s.r.o.
Price: 43819.00 EUR
Availability: InStock

43,819.00€

When maximum brightness is non-negotiable, the ELITE 150 PRO FB4 IP65 is the answer. With 150W of power, this beast dominates massive outdoor environments, delivering intense aerial beam effects across long distances.

The ELITE PRO FB4 IP65 is fully controllable via DMX, ArtNET, and Ethernet (from a PC) via the built-in FB4. Built for beam shows, it’s the top-tier choice for large outdoor events, stadiums, arenas, and global-scale productions.

The ELITE PRO FB4 IP65 series is designed for lighting professionals who need dependable performance in a wide range of event environments. Featuring a rugged IP65 weatherproof housing, these laser systems are built to handle demanding conditions while delivering consistent, high-quality output. Ideal for large indoor venues such as mega clubs, as well as outdoor events including stadiums, arenas, and festivals, the ELITE PRO FB4 IP65 offers the flexibility, durability, and reliability required for professional lighting applications.

Quantity:

ELITE 150 PRO FB4 IP65

43,819.00€

ELITE PRO FB4 SERIES VIDEO

ELITE 150 PRO FB4 IP65 specification table

Product Name:

Unity ELITE 150 PRO FB4 (IP65)

Type Of Laser:

Full-colour, Semiconductor diode laser system

Guaranteed Optical Output:

>150W

Suitable For:

Lighting professionals: Stadiums, arenas. Huge outdoor shows. City scape and landmark projections (visibility for kilometers / miles away)

Scanning System:

23,000 points per second @ 8°

Scan Angle:

40°

Safety:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight:

58kg

Package Includes:

Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card

R | G | B [mW]:

42,000 | 48,000 | 65,000

Beam Size [mm]:

8 x 10

Beam Divergence:

<1.2mrad [Full Angle]

Modulation:

Analog 100kHz

Power Requirements:

100-240V/50Hz

Consumption:

Max. 1500W

Operation Temperature:

(-10°C) - 40°C

Ingress Rating:

IP65

System Features:

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

Laser Safety Features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice:

*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:

Depth: 652 | Width: 553 | Height: 250
