Full-colour laser
Up to 40 Watts
100% accurate colours
ArtNet, DMX, ETH, ILDA
- Regular price
- 10,433.00€
- Sale price
- 10,433.00€
- Regular price
-
- Unit price
- per
Sold out
Over the years, thousands of Clubmax FB4 lasers found their customers worldwide. Clubmax FB4 systems have a great reputation and hold their price up well. What we offer today is the 3rd generation of our all-time bestseller that we crafted to perfection. Clubmax FB4 lasers are available in the range from 3 to 40 Watts.
The latest generation Clubmax lasers are a radically simple solution for all kinds of venues and shows, from private clubs and cosy venues to large-scale outdoor shows. Developed for challenging environments, its design is optimised for long maintenance intervals. In addition, the automated colour balancing feature ensures accurate and consistent colours across all Clubmax projectors within the given setup.
What is in the Package
Heavy-duty flight case
Laser projector
Mains cable
Ethernet cable
E-STOP with XLR cable
Interlock [US only]
Safety keys
USB drive with Manual
QC Certificate
Alternative Products
6.5-Watt bestselling Clubber
6.5-Watt full-colour RGB laser display system with the inbuilt FB4 control interface.
- Regular price
- 7,448.00€
- Sale price
- 7,448.00€
- Regular price
-
- Unit price
- per
Sold out
24-Watt bestselling laser
High-power RGB laser projector with 24-Watt power output and FB4 interface.
- Regular price
- 17,896.00€
- Sale price
- 17,896.00€
- Regular price
-
- Unit price
- per
Sold out
10-Watt BeamBrush
10-Watt full-colour RGB laser display system with the inbuilt FB4 control interface and variable beam size.
- Regular price
- 17,895.00€
- Sale price
- 17,895.00€
- Regular price
-
- Unit price
- per
Sold out
10-Watt outdoor projector
10-Watt full-colour RGB outdoor laser display system suitable for Architecture and Signage.
- Regular price
- 11,925.00€
- Sale price
- 11,925.00€
- Regular price
-
- Unit price
- per
Sold out
Accessories
High-quality front-coated bounce mirror for precise beam targeting.
- Regular price
- 156.00€
- Sale price
- 156.00€
- Regular price
-
- Unit price
- per
Sold out
A bracket for precise fitting of Pangolin's DiscoScan 2.0 Lens.
- Regular price
- 160.00€
- Sale price
- 160.00€
- Regular price
-
- Unit price
- per
Sold out
E-STOP signal distribution interface - 2x IN | 8x OUT.
- Regular price
- 1,226.00€
- Sale price
- 1,226.00€
- Regular price
-
- Unit price
- per
Sold out
A special effect for the main aperture of BeamBrush, Burtsberry and Clubmax.
- Regular price
- 213.00€
- Sale price
- 213.00€
- Regular price
-
- Unit price
- per
Sold out
A durable IP65 certified medium-size enclosure for equipment protection.
- Regular price
- 4,613.00€
- Sale price
- 4,613.00€
- Regular price
-
- Unit price
- per
Sold out
Rental/forever licence, works on both FB3 and FB4.
- Regular price
- 94.00€
- Sale price
- 94.00€
- Regular price
-
- Unit price
- per
Sold out
Folding and durable, water-proof cover for most KVANT lasers.
- Regular price
- From 150.00€
- Sale price
- 150.00€
- Regular price
-
- Unit price
- per
Sold out
It's for fitting and adjusting SafetyScan lenses to all compatible KVANT lasers.
- Regular price
- 120.00€
- Sale price
- 120.00€
- Regular price
-
- Unit price
- per
Sold out
Specifications
| Source | Type: | Semiconductor laser diode | Full-colour RGB laser projector |
| Suitability: | Indoor/outdoor laser displays [atmospheric, abstract, text, animations] |
| System control: | FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay] |
| Compliant with: | EN 60825-1 [tested by TÜV SÜD], FDA |
| Weight [kg]: | 13 |
| Size [WxHxD, mm]: | 339 x 168 x 353 [Technical Drawings are in SUPPORT section of this page] |
| Guaranteed opt. output [W]: | 10 |
| R | G | B [W]: | 2.7 | 3.5 | 4.5 [*see note A below] |
| Wavelengths [nm, ±5nm]: | 637 | 525 | 445 |
| Beam size [mm]: | 5 x 4.5 |
| Beam divergence [mrad]: | 0.9 [full angle, averaged value, *see note B below] |
| Modulation [kHz] | type: | 100 | analogue |

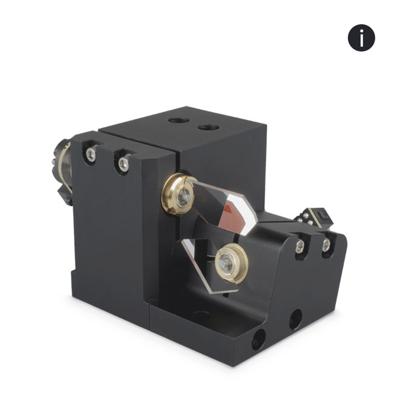

| X-Y scanners: | ScannerMAX 506 Compact | 40 Kpps @ 8° [more options in UPGRADES section of this page] |
| Power requirements [V] | Input: | 100-230/50-60Hz | Neutrik powerCON TRUE1 |
| Max. power consumption [VA]: | 340 |
| Operation temperature [°C]: | 10-40 |
| Included in the set: |
Heavy-duty flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is available for FREE download. |
| HW features: |
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection. Optical bench integration slot. |
| Laser safety features: |
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button. |
| note A | Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system. |
| note B | The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams. |
Clubmax 10 FB4 - Product Specifications
