KVANT Architect series - extremely bright single-beam architectonic and sky lasers

RGB
270 Watts
IP67
DMX
Request a Quote

Price on request

Architect W270B

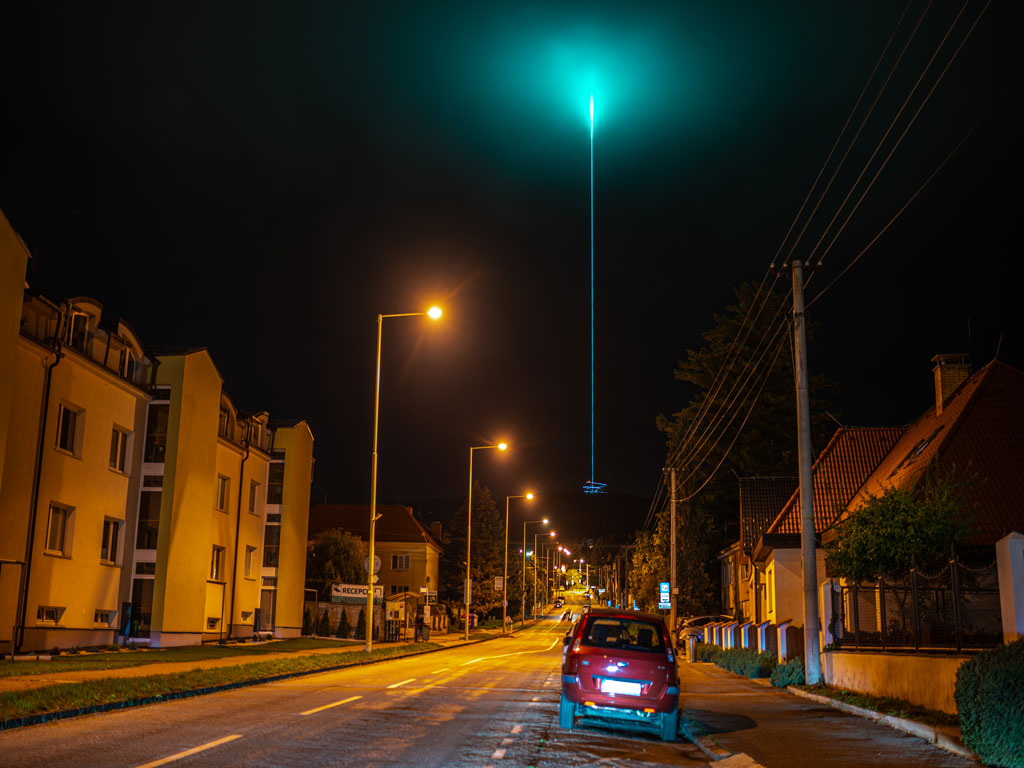

The new Architect range of high-power static-beam lasers (sometimes called sky lasers or landmark lasers) is our reaction to globally increasing demand for super bright lasers. These are great for highlighting significant landmarks, structures and buildings.

The beam coming out of the Architect systems draws attention from many miles away. It adds a great deal of sublimity to already majestic nature-made, or human-made objects, making them even more unique, appealing and desirable.

  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_1
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_2
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_3
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_4
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_5
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_6
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_7
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_8
  • Load image into Gallery viewer, KVANT Architect W270B high-power sky laser_9

What is in the Package

Laser projector
Inbuilt Mains cable
Inbuilt Control Signal cable
E-STOP with inbuilt XLR cable
0-5 Volt RGB controller
Safety keys
USB drive with Manual
QC Certificate

Alternative Products

Scanning Laser
10 Watt green outdoor laser display system suitable for Architecture and Signage.
Regular price
16,700.00€
Sale price
16,700.00€
Regular price
Unit price
per
Sold out
Learn More
33W Scanning Laser
33 Watt high-luminosity RGBY laser show projector for large-scale shows.
Regular price
35,571.00€
Sale price
35,571.00€
Regular price
Unit price
per
Sold out
Learn More
660W Output
660 Watt RGB single-beam Sky Laser intended for architectural use and landmark illumination.
Price on request Learn More
900W Output
900 Watt RGB single-beam Sky Laser intended for architectural use and landmark illumination.
Price on request Learn More

Optional Upgrades

Accessories

Specifications

Source | Type:
semiconductor diode | full-colour RGB static-beam laser projector/sky laser
Suitability: architectural outdoor installations | landmark and sky illumination
System control: Analog 0-5 Volts or DMX
Compliant with:
EN 60825-1
Ingress Protection Rating: IP67
Weight [kg]: ~ 60
Size [WxHxD, mm]: 1022 x 277 x 540 [without water tank]
Guaranteed opt. output: 270 Watt
R | G | B [W]:
112 | 96 | 64 [white balanced output]
Wavelengths [nm, ±5nm]: 637 | 520 | 450
Beam size [mm]: 250 x 880 or custom
Luminous efficiency [lm]: 63,700
Beam divergence [mrad]:
3.2 [full angle, averaged value], or custom
Cooling: water, ~ 6 l per minute, 10 degrees Celsius
Dimming: 0 - 100%
Max. power consumption [VA]: <2000
Operation temperature [°C]: 5-35
Architect W270B - Product Specifications
