|Type:||full colour semiconductor diode laser system|
|Guaranteed optical output:||3000mW|
|Suitable for:||indoor laser displays and laser graphics|
|Control signal:||ILDA, Ethernet, ArtNet and SD card|
|Scanning system:||ScannerMAX 506 Compact | 40kpps @ 8° [see Options below]|
|Safety:||fully complies with the latest EN 60825-1, FDA regulations and TUV Laser Safety.|
|Package includes:||heavy duty flight case, power lead, 10M ILDA signal cable, E-STOP remote with 10M cable, set of 4 safety keys, interlock connector, CD with PDF manual.|
|R | G | B [mW]:||650 | 900 | 1600 [*see note]|
|Beam size [mm]:||3.5 x 4|
|Beam divergence:||<1mrad [full angle]|
|Modulation:||analog, up to 50kHz|
|Operation temperature:||10-40 °C|
|Ingress protection rating:||IP54|
All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. are managed by inbuilt FB4 control system.
Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.

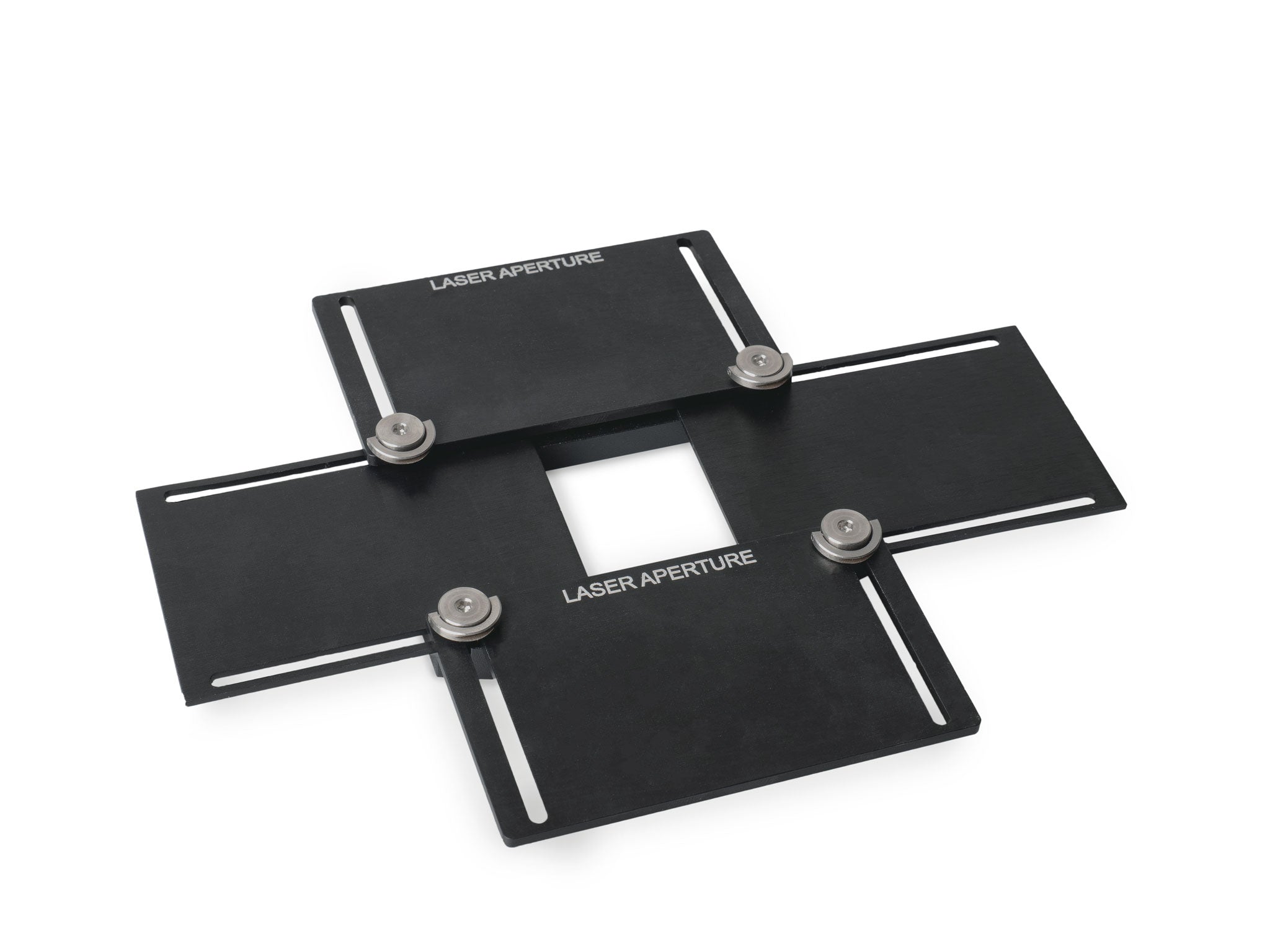

|Laser safety features:||Keyed interlock, emission delay, magnetic interlock, scan-fail safety, V-RAD 506 mechanical shutter | reaction time <20ms, adjustable aperture masking plate.|
|*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the guaranteed total output power.|
Our all NEW Clubmax is simply spectacular. The device on its own has been crafted to near-perfection following Kvant’s core philosophy of continuous improvement. The performance and new smart features are what will impress your audience the most.
Based on the current desires and needs of laser display professionals around the world and of course, our most successful laser system ever, the new Clubmax is set again to be the benchmark for others.
Contact us about current delivery dates. If you need your equipment by a specific date, we will do all we can to ship it to you as soon as possible.Contact Us
Do you have a specific request? Click the button below to get a custom quote addressing your needs and preferences.Get a Quote
All our products comply with strict international safety regulations. Click to find out more about laser safety.Learn more
|Clubmax 3000 FB4||3,730 €|
|Clubmax 3000 FB4||3,730 €|
If you don’t need to buy, just rent. Over 100 laser systems are ready for immediate transfer to you and your spectacular show.
From laser shows and displays to laser mapping, 3D video and holographic projections, right up to fireworks and water shows. You name it, we can do it.
If you need professional custom work, our in-house development, design and production department is ready.
