Modular
210+ Kppsultra-fast scanning
Inbuilt LED Blinders
ArtNet, ETH
- Regular price
- 29,463.00€
- Sale price
- 29,463.00€
- Regular price
-
- Unit price
- per
Sold out

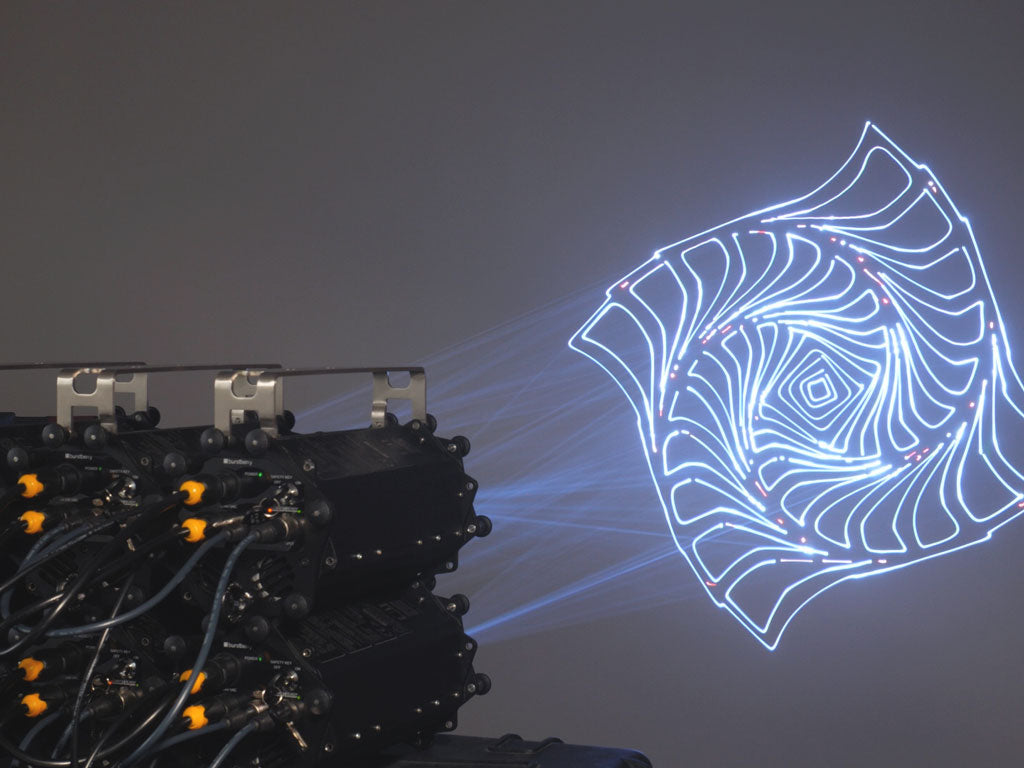

Compact in size, being a fully equipped 5.5-Watt full-colour RGB laser display system with build-in 3-Watt LED blinder - that’s Kvant Berry Lite.A pack made of six Berries Lite offers more than 200.000 points-per-second drawing capability - that's at 8 degrees projection angle and 20 frames per second performed. And being virtually a single unit makes the handling extremely easy and practical because you don't have to worry about the misalignment between the projectors once they are set up - even if moved afterwards.
Just imagine what you could do with over 200.000 points per second; how complex the content could be with absolutely no flicker when projected. The Berry Lite offers endless creative possibilities and easy control when designing challenging laser effects. Because it is intended to be operated mainly via Artnet or DMX, we see it ultimately as the product of choice for every lighting designer.
Burstberry and Burstberry Cluster Introduction
What is in the Package
Heavy-duty flight case
Six Berry Lite projectors
Hanging brackets
Mains/Jumper cables
Ethernet cables
E-STOP with XLR cable
Interlocks [US only]
Safety keys
USB drive with Manual
QC Certificates
Alternative Products
168 Kpps scanning laser
Over 150 Kpps scanning RGB laser, multiple BeamBursts and six LED Blinders in a single lighting cluster.
- Regular price
- 29,463.00€
- Sale price
- 29,463.00€
- Regular price
-
- Unit price
- per
Sold out
6.5-Watt bestselling Clubber
6.5-Watt full-colour RGB laser display system with the inbuilt FB4 control interface.
- Regular price
- 7,448.00€
- Sale price
- 7,448.00€
- Regular price
-
- Unit price
- per
Sold out
Variable beam-size laser
7-Watt full-colour RGB laser display system with the inbuilt FB4 control interface and variable beam size.
- Regular price
- 14,761.00€
- Sale price
- 14,761.00€
- Regular price
-
- Unit price
- per
Sold out
6.5-Watt signage laser
6.5-Watt full-colour RGB outdoor laser display system suitable for Architecture and Signage.
- Regular price
- 8,940.00€
- Sale price
- 8,940.00€
- Regular price
-
- Unit price
- per
Sold out
Accessories
A metal plate for spacing Burstberry laser projectors further apart.
- Regular price
- 136.00€
- Sale price
- 136.00€
- Regular price
-
- Unit price
- per
Sold out
E-STOP signal distribution interface - 2x IN | 12x OUT.
- Regular price
- 1,524.00€
- Sale price
- 1,524.00€
- Regular price
-
- Unit price
- per
Sold out
Rental/forever licence, works on both FB3 and FB4.
- Regular price
- 156.00€
- Sale price
- 156.00€
- Regular price
-
- Unit price
- per
Sold out
It's for fitting and adjusting SafetyScan lenses to all compatible KVANT lasers.
- Regular price
- 120.00€
- Sale price
- 120.00€
- Regular price
-
- Unit price
- per
Sold out
High-quality diffraction mirror with Grid effect.
- Regular price
- 127.00€
- Sale price
- 127.00€
- Regular price
-
- Unit price
- per
Sold out
Rental/forever licence, works on both FB3 and FB4.
- Regular price
- 322.00€
- Sale price
- 322.00€
- Regular price
-
- Unit price
- per
Sold out
High-quality front-coated bounce mirror for precise beam targeting.
- Regular price
- 156.00€
- Sale price
- 156.00€
- Regular price
-
- Unit price
- per
Sold out
High-quality, DMX controlled, 1.5kW water-based haze machine.
- Regular price
- 960.00€
- Sale price
- 960.00€
- Regular price
-
- Unit price
- per
Sold out
Specifications
| Source | Type: | Semiconductor laser diode [FAC] | Full-colour RGB laser projector/Lighting fixture |
| Suitability: | Indoor/Outdoor laser displays [atmospheric, abstract, text, animations] |
| System control: | FB4-STD [Ethernet, ArtNet | PC, Lighting Console or Autoplay] |
| Compliant with: | EN 60825-1 [tested by TÜV SÜD], FDA |
| Weight [kg]: | 23 |
| Size [WxHxD, mm]: | approx. 520 x 350x 359 [Technical Drawings are in the SUPPORT section of this page] |
| Guaranteed opt. output [W]: | 33 [per 6-unit cluster] |
| R | G | B [W]: | 1.4 | 2 | 3 [each sub-unit | *see note A below] |
| Wavelengths [nm, ±5nm]: | 638 | 525 | 445 |
| Beam size [mm]: | 5 x 7 |
| Beam divergence [mrad]: | 1.3 [full angle, averaged value, *see note B below] |
| Modulation [kHz] | type: | 100 | analogue |
| X-Y scanners: | ScannerMAX 506 Compact | 210 Kpps @ 8°, max. 50° [per 6-unit cluster] |
| Power requirements [V] | Input: | 100-230/50-60Hz | Neutrik powerCON TRUE1 |
| Max. power consumption [VA]: | 200 [each sub-unit] |
| Operation temperature [°C]: | 10-35 |
| Included in the set: |
Heavy-duty fligh case, 1.5M power lead, 1M AC jumper cables, 10M Ethernet rj45 signal cable, 1M Ethernet rj45 signal cables, E-STOP remote with 10M 3-pin XLR cable, 1M 3-pin XLR cables, safety keys, interlock connectors [for the USA only], USB memory stick with the user manual, QC certificates. Pangolin QuickShow laser control and creation software is available for FREE download. |
| HW features: |
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the software and built-in FB4 control interface. Scanning system overload protection. Star-burst laser effect [2nd aperture]. 3W white LED blinder. |
| Laser safety features: |
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button. |
| note A | Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system. |
| note B | The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams. |
Berry Lite Cluster - Product Specifications
